Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 784-0091
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Bus Type | USB 2.0 | |
| Connector A | USB A | |
| Connector A Gender | Male | |
| Connector B | D-sub, 9 Pin | |
| Connector B Gender | Male | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Bus Type USB 2.0 | ||
Connector A USB A | ||
Connector A Gender Male | ||
Connector B D-sub, 9 Pin | ||
Connector B Gender Male | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

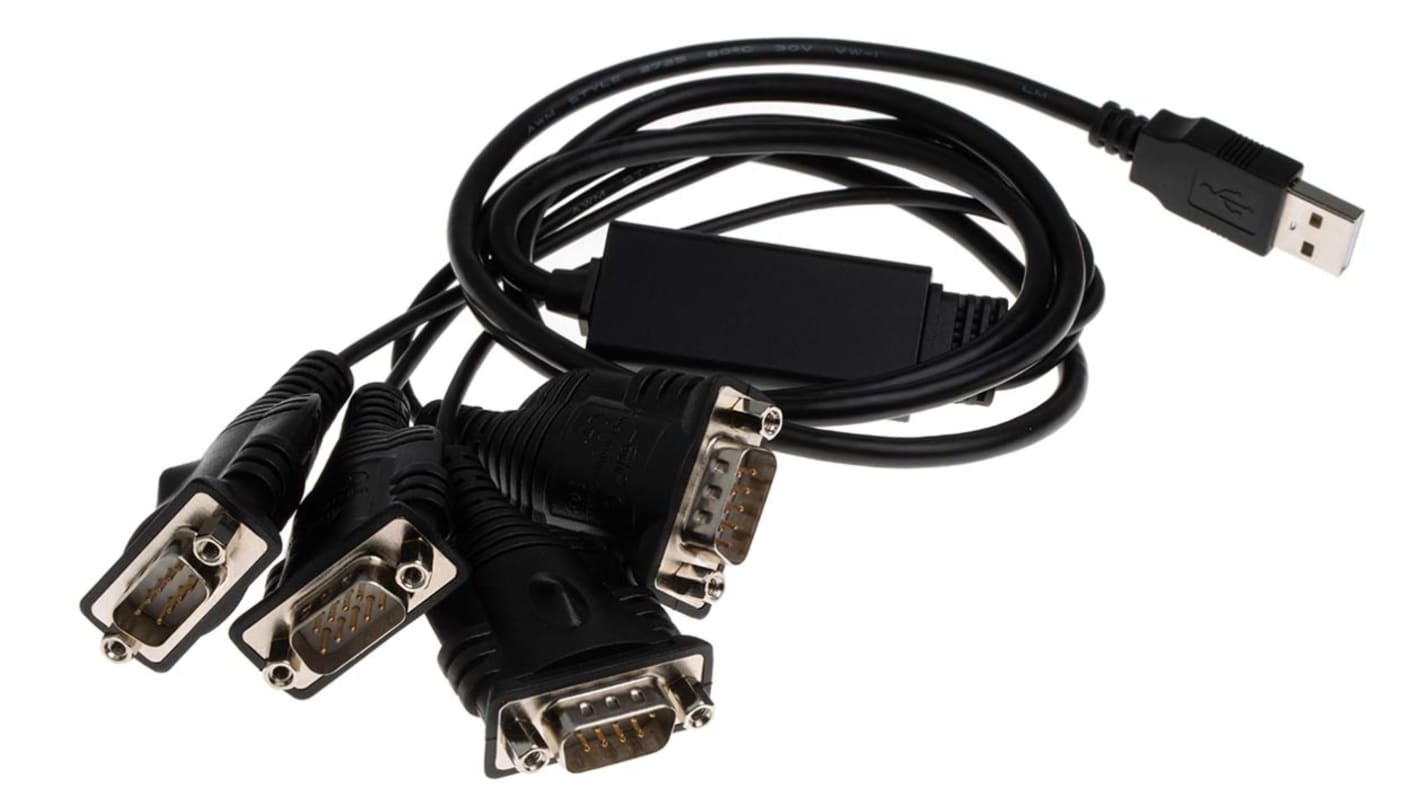

RS PRO USB to RS232 Converter
Need a way to adapt your USB port into an RS232 serial communications port with several connectors? This converter has four male DB9 connectors, so you can attach it to corresponding 9-pin female ports on up to four receptor devices at once. This is especially useful if your set-up includes multiple peripherals. The cable has a male USB A port that connects to the female port in your host device. This means you can facilitate connections between a range of devices from modems and handheld PCs to satnavs and even industrial machinery.
The PL2303 chipset used in this converter provides stable bridge connections for easy networking between devices. You won't need a separate power connection as it's self-powered by USB bus. This converter is compatible with USB interfaces 3.0, 2.0 and 1.1. It also hosts drivers for Windows XP, Vista, 7, 8 and 10, as well as Mac OSX.
The PL2303 chipset used in this converter provides stable bridge connections for easy networking between devices. You won't need a separate power connection as it's self-powered by USB bus. This converter is compatible with USB interfaces 3.0, 2.0 and 1.1. It also hosts drivers for Windows XP, Vista, 7, 8 and 10, as well as Mac OSX.
Features and Benefits
• Converts USB A to RS232
• Male-to-male connectors
• Four male DB9 connectors
• Stable chipset PL2303
• Compatible with USB3.0/USB2.0/USB1.1 interfaces
• Self-powered by USB bus so no separate power connection required
• Drivers for Windows XP/Vista/7/8/10 and Mac OSX
• Chipset manufactured by Prolific Technology Inc.
• Male-to-male connectors
• Four male DB9 connectors
• Stable chipset PL2303
• Compatible with USB3.0/USB2.0/USB1.1 interfaces
• Self-powered by USB bus so no separate power connection required
• Drivers for Windows XP/Vista/7/8/10 and Mac OSX
• Chipset manufactured by Prolific Technology Inc.
