MPN

MOXA USB to DB9 D Sub Adapter Interface Converter

RS Stock No.:: 255-2039
Distrelec Article No.:: 125-73-573
Mfr. Part No.:: UPort 1130
Brand:: MOXA

MOXA USB to DB9 D Sub Adapter Interface Converter

Subtotal (1 unit)*

£74.25

(exc. VAT)

£89.10

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

69 unit(s) ready to ship
Plus 89 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£74.25

*price indicative

RS Stock No.:: 255-2039
Distrelec Article No.:: 125-73-573
Mfr. Part No.:: UPort 1130
Brand:: MOXA

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MOXA
	Product Type	D Sub Adapter Interface Converter
	Connector Type A	USB
	Transmission Speed	921.6kbps
	Connector Type B	DB9
	Nominal Supply Voltage	5 V dc
	Number of Connectors B	1
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	55°C
	Weight	75g
	Standards/Approvals	IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-3, IEC 61000-4-2, CISPR 32, WEEE, RoHS, CRoHS, EN 55032/24, IEC 61000-4-8, IEC 61000-4-6, FCC Part 15B Class 1

	Select all
	Brand MOXA
	Product Type D Sub Adapter Interface Converter
	Connector Type A USB
	Transmission Speed 921.6kbps
	Connector Type B DB9
	Nominal Supply Voltage 5 V dc
	Number of Connectors B 1
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 55°C
	Weight 75g
	Standards/Approvals IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-3, IEC 61000-4-2, CISPR 32, WEEE, RoHS, CRoHS, EN 55032/24, IEC 61000-4-8, IEC 61000-4-6, FCC Part 15B Class 1

COO (Country of Origin):: TW

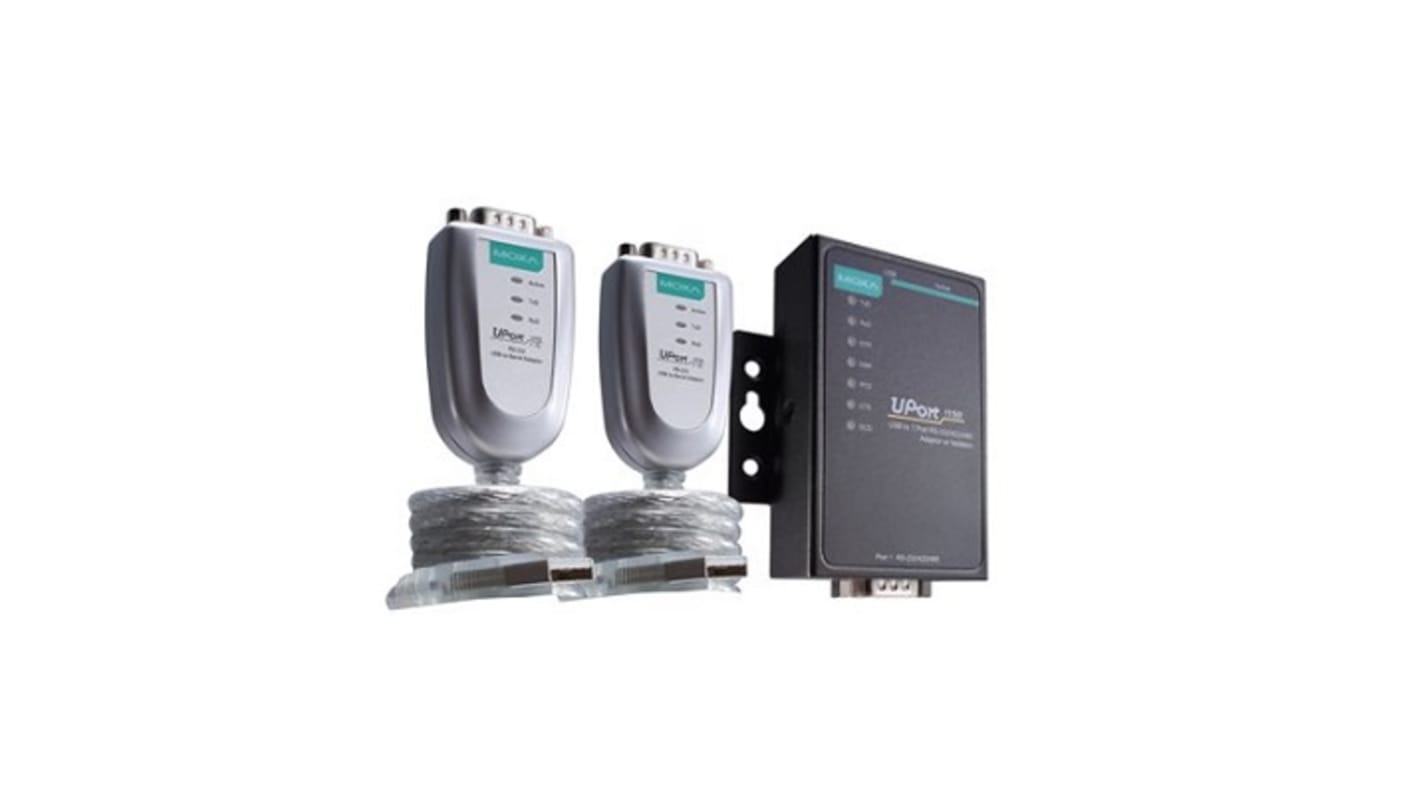

MOXA D Sub Adapter Interface Converter, 5V Nominal Supply Voltage, 921.6kbps Transmission Speed - UPort 1130

This D?sub adapter interface converter provides a straightforward bridge between USB hosts and DB9 serial devices, enabling legacy serial equipment to communicate via a USB port. It is intended for industrial and laboratory environments where serial peripherals require connection to modern computers and controllers, supporting standard USB power input and designed for operation in typical indoor technical settings.

Features and Benefits:

• Supports 921.6 kbps throughput for high?speed serial communication
• Accepts 5V DC supply for straightforward USB?powered operation
• Compliant with RoHS to meet hazardous?substance restrictions
• Weighs 200 g for easy integration into portable setups
• Single DB9 connector to maintain legacy serial connectivity

Applications

• Suitable for automation systems requiring USB to RS?232 links
• Ideal for electronics test benches converting USB to DB9
• Used with mechanical control units that rely on serial ports
• Can be used for industrial monitoring via USB?RS232 converter

Which electromagnetic compatibility standards does it meet?

It conforms to multiple EMC and immunity standards including IEC 61000?4?2, ?3, ?4, ?5, ?6 and IEC 61000?4?8 plus EN 55032/24 and FCC Part 15B Class 1, ensuring performance in electrically noisy environments.

What operating temperature range should I expect for reliable use?

The unit operates reliably between 0 °C and 55 °C, suitable for most indoor industrial and laboratory conditions.

What connector types are provided for host and device connections?

The interface presents a USB connector on the host side and a single DB9 (D?sub) on the device side for serial peripherals.

Is the product suitable for installations requiring environmental disposal compliance?

It meets WEEE and CRoHS requirements, aligning with regulated disposal and material restrictions.
