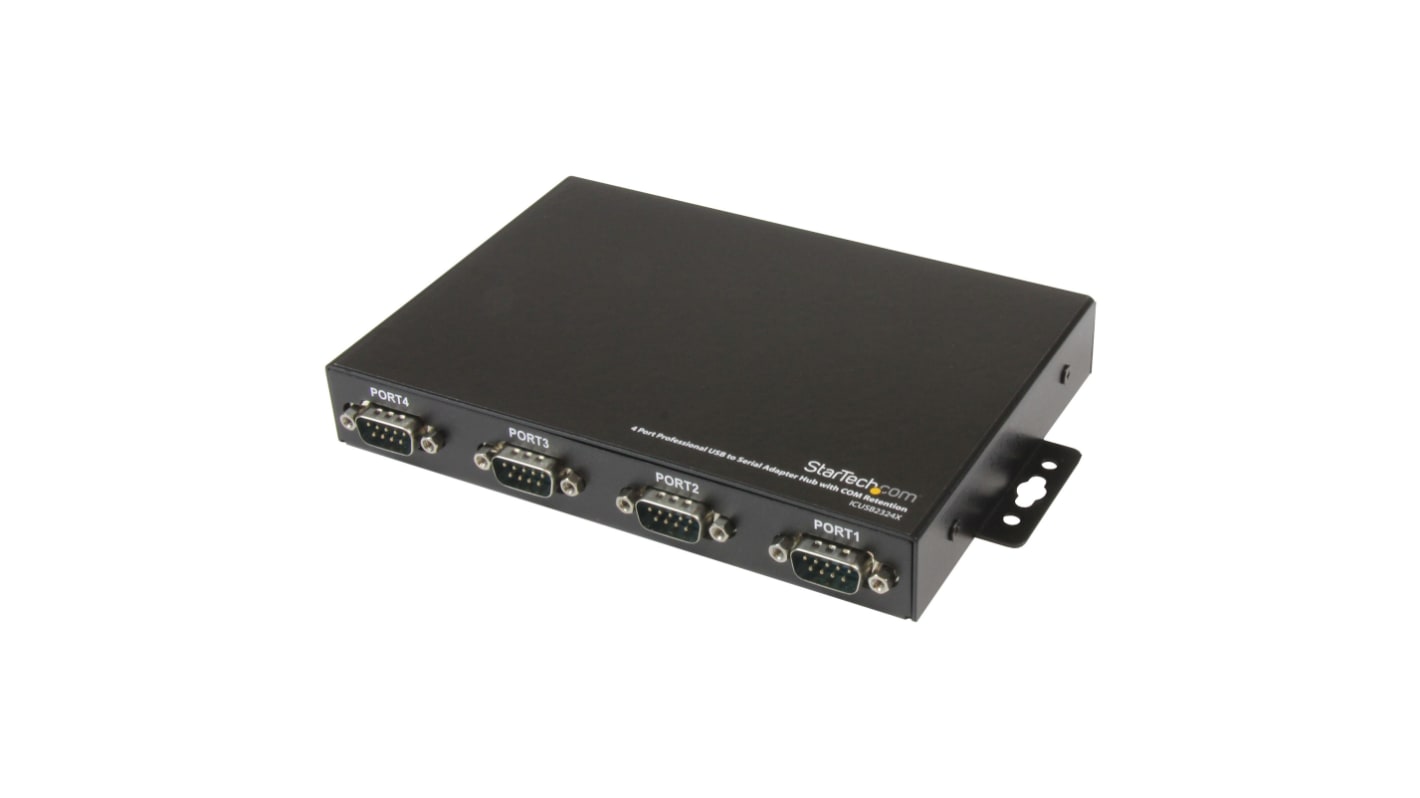

StarTech.com RS232 Converter

StarTech's professional grade USB to RS232 hub features 4 additional ports to monitor and control serial devices in industrial environments via a USB port. It's a reliable and cost-effective way to expand on RS-232 ports, while retaining full control from your computer.

This serial hub is ready for wall-mounting and is enclosed in a black all-metal chassis, designed to withstand the tough industrial environments or to simply install securely to your desktop.

While working from your PC, add 4 RS-232 ports as though they're built on via a single USB 2.0 cable. Because the serial adapter is bus powered, there's no need for an external power supply. However, for devices that require additional power, there is the option to use the included DC connector or terminal block.

After installation, the COM port retention allows users to plug or unplug the single USB cable into different ports, or even after a reboot, and ensures the same settings and values are restored automatically to each specific RS-232 connection.

The hub is a cost-effective way to connect legacy serial devices without needing to upgrade equipment and acts as a compatibility bridge between USB and serial peripherals.

StarTech's serial adapter hub is backed by a 2-year warranty and free lifetime technical support.

• Add legacy functionality to newer laptops, PCs, and servers that lack an RS232 port
• Connect, monitor and control industrial/automotive sensors and equipment
• Serial modems
• Bar code scanners
• Receipt printers
• Point of sale devices
• Satellite receiver
• PDA
• Connect and program LED and digital signage boards

• 4 additional RS232 port connections (DB9)
• 230Kbps baud rate
• All-metal construction
• COM port retention
• Designed for quick and easy expansion
• Bus powered
• Optional DC connecter included
• Double buffers for upstream and downstream data transfer
• Supports automatic handshake mode
• Enables/disables enumerations
• Compatible with USB 1.1 or above
• Option to power by terminal block connection
• Wall-mountable

• 1x 4 Port USB to RS232 professional hub
• 1x 3ft USB A to B cable
• 1x Driver CD
• 1x Instruction Manual

A USB to serial adapter is a way of connecting peripheral devices that feature a 9 pin connection, typically in industrial environments, in order to transfer data from a computer.

Texas Instruments

TIUSB3410

RS-232

230.4kbit/s

This adapter has COM retention.
