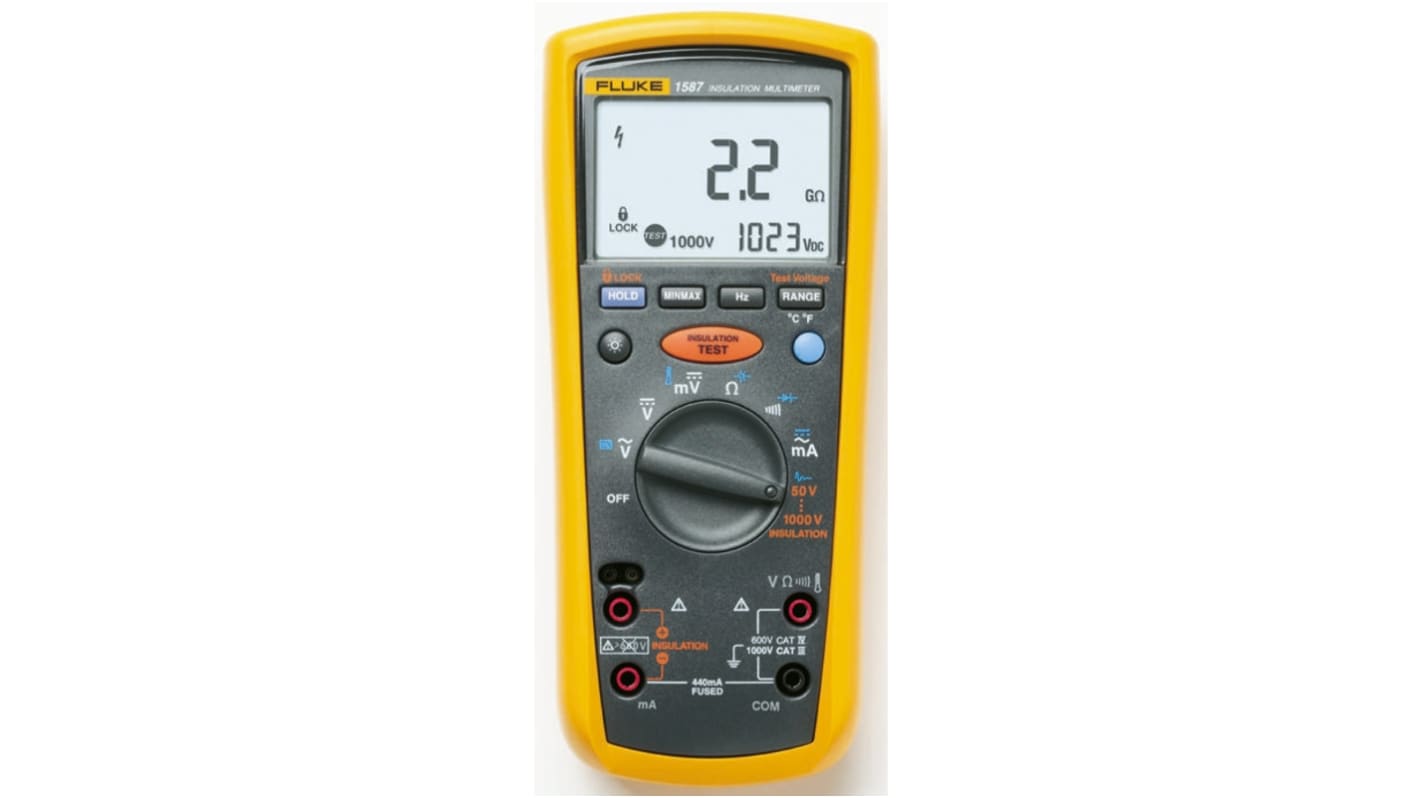

Fluke 1587 Insulation Resistance Tester, 50V Min, 1000V Max, 2GΩ Max, CAT III 1000 V, CAT IV 600 V - RS Calibration
- RS Stock No.:
- 512-3417
- Mfr. Part No.:
- FLUKE-1587
- Brand:
- Fluke
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£951.84
(exc. VAT)
£1,142.21
(inc. VAT)
- RS Stock No.:
- 512-3417
- Mfr. Part No.:
- FLUKE-1587
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Model Number p | 1587 | |
| Tester Type | Insulation Resistance Tester | |
| Maximum Test Voltage | 1000V | |
| Minimum Test Voltage | 50V | |
| Maximum Insulation Resistance Measurement | 2GΩ | |
| Calibrated | RSCAL | |
| Test Current | 1mA | |
| Power Source | Battery | |
| Battery Type | AA | |
| Battery Life | 1000 h | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +55°C | |
| Safety Category | CAT III 1000 V, CAT IV 600 V | |
| Safety Category Level | CAT III, CAT IV | |
| Safety Category Voltage | 600 V, 1000 V | |
| Weight | 550g | |
| Dimensions | 203 x 100 x 50mm | |
| Height | 50mm | |
| Width | 100mm | |
| Length | 203mm | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Model Number p 1587 | ||
Tester Type Insulation Resistance Tester | ||
Maximum Test Voltage 1000V | ||
Minimum Test Voltage 50V | ||
Maximum Insulation Resistance Measurement 2GΩ | ||
Calibrated RSCAL | ||
Test Current 1mA | ||
Power Source Battery | ||
Battery Type AA | ||
Battery Life 1000 h | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +55°C | ||
Safety Category CAT III 1000 V, CAT IV 600 V | ||
Safety Category Level CAT III, CAT IV | ||
Safety Category Voltage 600 V, 1000 V | ||
Weight 550g | ||
Dimensions 203 x 100 x 50mm | ||
Height 50mm | ||
Width 100mm | ||
Length 203mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Fluke 1577 & 1587 Insulation Multimeters
The Fluke Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
Fluke 1577 & 1587
Large display with backlight
Insulation test: 1587: 0.01 MΩ to 2 GΩ. 1577: 0.1 MΩ to 600 MΩ
Insulation test voltages (V) 1587: 50, 100, 250, 500, 1000; 1577: 500, 1000) for many applications
Live circuit detection prevents insulation test if voltage >30V is detected for added user protection
Auto-discharge of capacitive voltage for added user protection
AC/DC voltage, DC milliVolts, AC/DC milliamps, Resistance (Ω), Continuity
Auto power off
CAT III 1000V, CAT IV 600V measurement category
H. 50 x W. 203 x D.100mm; Wt. 550g
Insulation test: 1587: 0.01 MΩ to 2 GΩ. 1577: 0.1 MΩ to 600 MΩ
Insulation test voltages (V) 1587: 50, 100, 250, 500, 1000; 1577: 500, 1000) for many applications
Live circuit detection prevents insulation test if voltage >30V is detected for added user protection
Auto-discharge of capacitive voltage for added user protection
AC/DC voltage, DC milliVolts, AC/DC milliamps, Resistance (Ω), Continuity
Auto power off
CAT III 1000V, CAT IV 600V measurement category
H. 50 x W. 203 x D.100mm; Wt. 550g
Fluke 1587 additional features:
Filter for motor drive measurements
Capacitance, diode test, temperature, Min/Max, frequency (Hz)
Insulation test smoothing reading
K-type thermocouple
Capacitance, diode test, temperature, Min/Max, frequency (Hz)
Insulation test smoothing reading
K-type thermocouple
Supplied with
Batteries, remote probe, test leads and probes, alligator clips, instruction manual, rugged utility hard case and (1587 only) K-type thermocouple.
