RS PRO Safety Tester, 5000 VA Max

RS Stock No.:: 288-9859
Brand:: RS PRO

Subtotal (1 unit)*

£2,659.46

(exc. VAT)

£3,191.35

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

5 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£2,659.46

*price indicative

Details the discount on offer. RS PRO now 20% off.

Add Promotion Code "RSPRO1000" at basket

Discount code to be applied at basket, this will appear as 'code accepted' at checkout. Discount saving is only visible on invoice. Code cannot be used in conjunction with other discounts. Valid from 01/08/2025 to 30/09/2025. Selected Lines Only.

See all RS PRO Offers

RS Stock No.:: 288-9859
Brand:: RS PRO

Find similar products by selecting one or more attributes.

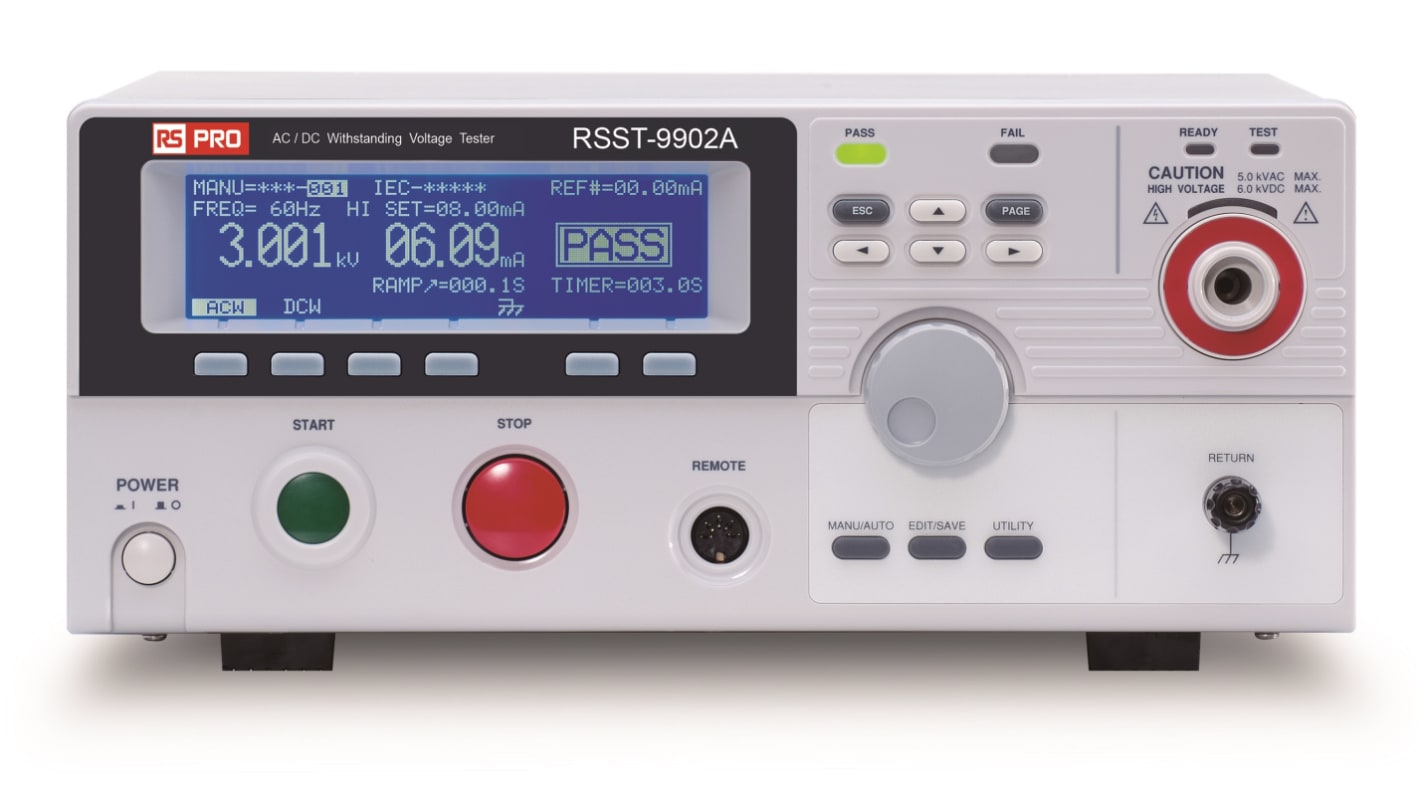

RS PRO AC Withstand Voltage Tester- With 500VA Output Capacity

The RS PRO AC/DC/IR/GB Electrical Safety Tester delivers a powerful and flexible solution for electrical safety testing with an impressive 500VA AC test capacity. The 240 x 64 Ice Blue Dot Matrix LCD offers clear and detailed displays of test results and parameters, ensuring ease of use in various environments. Capable of insulation resistance measurements up to 50GΩ and featuring a sweep function for DUT characteristic analysis, this tester ensures thorough and accurate testing.
Safety and performance are paramount, with features such as a safety interlock function, zero crossing turn-on operation, and high-intensity flash indicators for caution and status. It also includes both manual and auto modes, true RMS current measurement, and controllable ramp-up times for enhanced precision. With high-resolution settings of 1 μA for measuring current and 2 V for setting voltage, along with a PWM amplifier for increased power efficiency, this tester is engineered for reliable and efficient operation.

Features and Benefits

Up to 5kV AC Withstand Voltage Test at max load 500VA (5kV/100mA)

Large 240 x 64 Ice Blue Dot Matrix LCD Display

The user can set the ’Ramp Up’ and ’Test Duration’ time for the ’Withstand Voltage’ test

The innovative sweep function to view test results as a graph.

ARC detection, detects fast voltage or current transients that are not normally detected.

Each manual (MANU) test the user sets up can be stored/recalled to/from one of 100 memory locations.

Automatic (AUTO) tests allow you to link together up to 16 different MANU tests and run them sequentially.

With the use a PWM switched power supply precise test voltage can be set without having to rely on the unit’s mains power voltage supply.

Start/Stop functions can be controlled remotely via the ’Remote Terminal’ located on the front of the unit.

The rear Signal I/O port can be used for pass/fail/test monitoring and the start/stop control/interlock.

The rear RS232/USB ports can be used for programming and remote control.

Integral over temperature, voltage and current protection protect the product to support long term use.

Pass, Fail, Test, High Voltage and Ready indicators are all displayed on the Ice Blue Dot Matrix LCD Display.

Interlock function is a safety feature that is configurable by the user if it is set and the Interlock is left open the INTERLOCK OPEN will be displayed and the test will not start.

Included Accessories

Quick Start Guide

Power cord

Interlock key

Remote terminal cable

Test lead

Applications

Electrical safety testing for complex equipment

AC/DC withstanding testing and insulation resistance analysis

Be the first to know about our latest products and services

Join our mailing list today:

The personal information you provide to us when signing up to the mailing list will be processed in line with our privacy policy.

Select all	Attribute	Value
	Brand	RS PRO
	Tester Type	Safety Tester
	Maximum Test Voltage	5000 VA
	Display Type	LCD - Dot Matrix
	Power Source	Mains
	Weight	24kg
	Dimensions	330 x 148 x 482mm

	Select all
	Brand RS PRO
	Tester Type Safety Tester
	Maximum Test Voltage 5000 VA
	Display Type LCD - Dot Matrix
	Power Source Mains
	Weight 24kg
	Dimensions 330 x 148 x 482mm
