RS PRO Hipot Tester, 50V ac/dc Min, 5000 V ac, 6000 V dc Max
- RS Stock No.:
- 288-9857
- Brand:
- RS PRO
Subtotal (1 unit)*
£2,610.02
(exc. VAT)
£3,132.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 4 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £2,610.02 |
*price indicative
- RS Stock No.:
- 288-9857
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Tester Type | Hipot Tester | |
Maximum Test Voltage | 5000 V ac, 6000 V dc | |
Minimum Test Voltage | 50V ac/dc | |
Display Type | LCD | |
Power Source | Mains | |
Dimensions | 320 x 120 x 435 mm | |
Weight | 11kg | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Tester Type Hipot Tester | ||
Maximum Test Voltage 5000 V ac, 6000 V dc | ||
Minimum Test Voltage 50V ac/dc | ||
Display Type LCD | ||
Power Source Mains | ||
Dimensions 320 x 120 x 435 mm | ||
Weight 11kg | ||
- COO (Country of Origin):
- TW

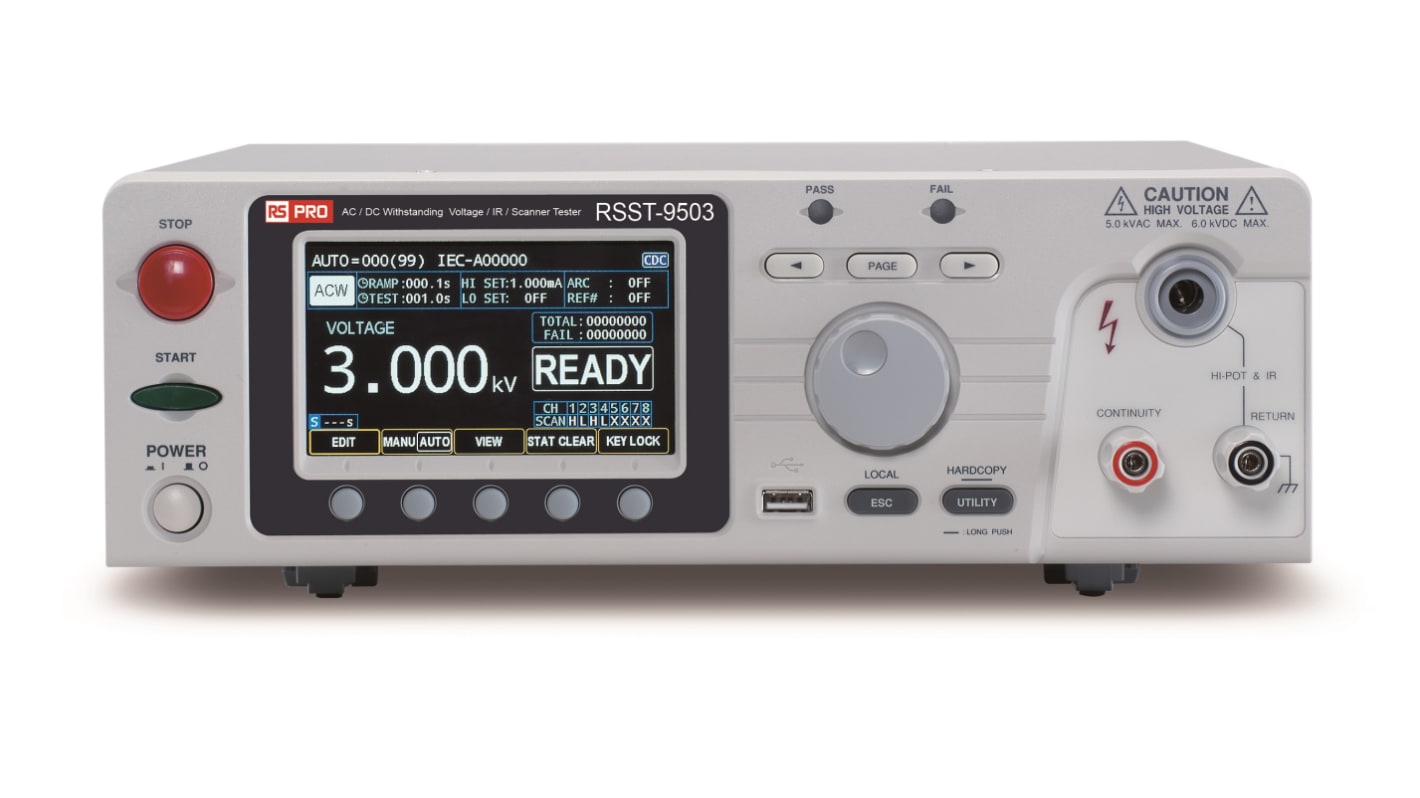

RS PRO Multi-Channel Hipot Tester
Introducing the new RS PRO Multi-Channel Hipot Tester, a versatile and powerful solution for comprehensive electrical safety testing. With a robust 150VA AC test capacity and 3-in-1 functionality, this tester seamlessly handles AC, DC, and IR testing, making it an essential tool for a range of applications. The built-in 8-channel scanner allows for efficient testing of multiple devices simultaneously, significantly improving productivity.
The tester features a 480 x 272 colour TFT LCD for clear and precise visualisation of test results, ensuring easy interpretation and analysis. Test parameters can be conveniently exported or imported through the USB host interface, adding flexibility and efficiency to your testing setups.
With the capability to measure insulation resistance up to 10GΩ, the RS PRO Multi-Channel Hipot Tester ensures thorough and accurate testing of insulation properties. Additional features include a statistics (counter) function for effective data management, Open/Short Check (OSC), and ARC detection for enhanced safety and reliability.
The tester features a 480 x 272 colour TFT LCD for clear and precise visualisation of test results, ensuring easy interpretation and analysis. Test parameters can be conveniently exported or imported through the USB host interface, adding flexibility and efficiency to your testing setups.
With the capability to measure insulation resistance up to 10GΩ, the RS PRO Multi-Channel Hipot Tester ensures thorough and accurate testing of insulation properties. Additional features include a statistics (counter) function for effective data management, Open/Short Check (OSC), and ARC detection for enhanced safety and reliability.
Why Would You Choose This Hipot Tester?
Designed with user convenience, this tester supports multi-language options, including Traditional and Simplified Chinese and English, and offers seamless integration with RS-232C and USB interfaces. Whether for production, quality control, or maintenance, the RS PRO Multi-Channel Hipot Tester delivers exceptional performance and reliability.
Features and Benefits
- 150VA AC Test Capacity
- 3 in 1 Tester: AC, DC, IR
- Built-in 8 channel Scanner
- 480 x 272 Colour TFT LCD
- Test parameter Export / Import through USB host
- Statistics (counter) function
- Insulation resistance measurement up to 10GΩ
- Open/Short Check (OSC)
- ARC detection
- Multi-language: Traditional / Simplified Chinese, English
- Interface: RS-232C and USB host/device
Included Accessories
- Power cords x 2 (UK/VDE types)
- Test lead
Applications
- Electrical Equipment Manufacturing
- Automotive Industry
- Electrical Installation and Maintenance
