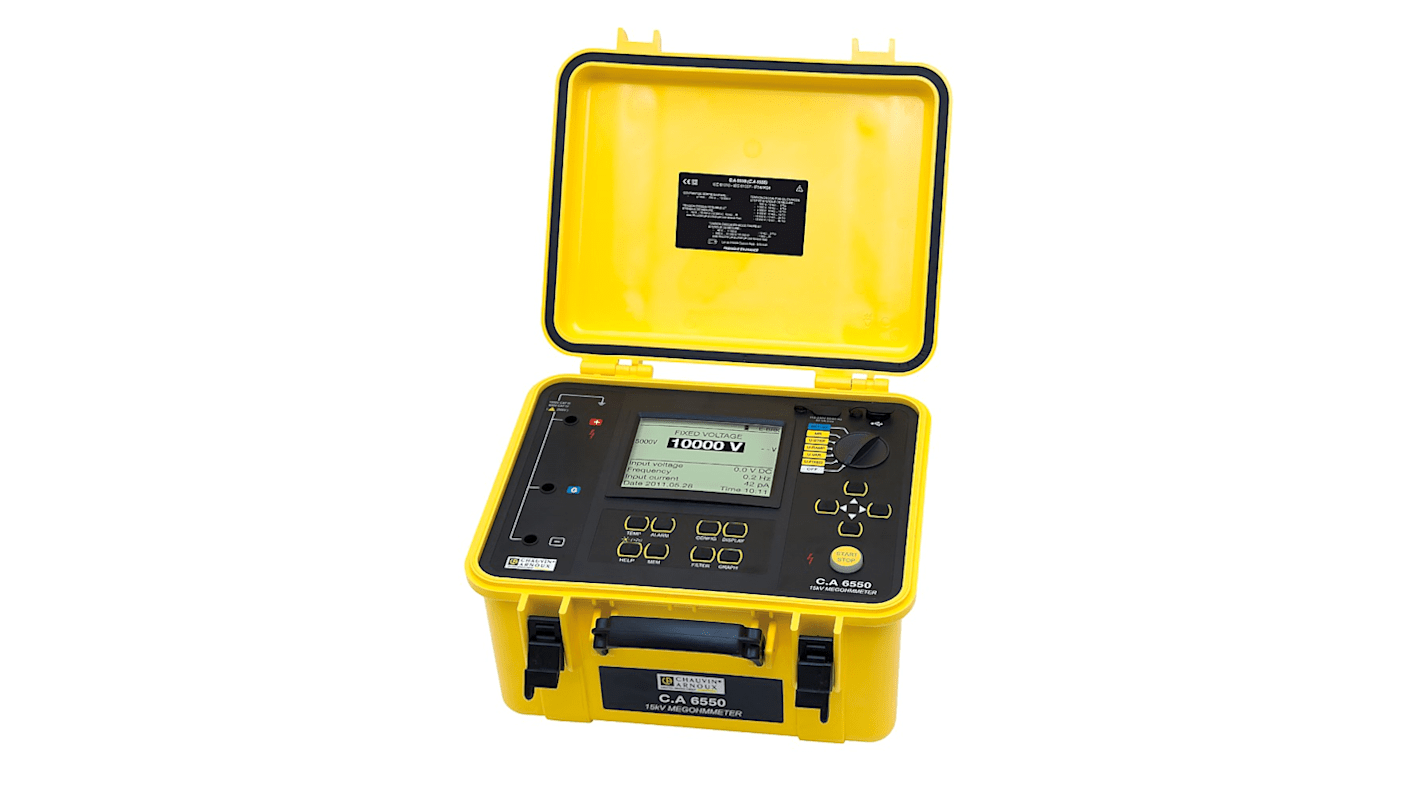

Chauvin Arnoux CA 6550 Insulation Tester, 40 V Min, 10 kV Max CAT IV
- RS Stock No.:
- 237-2905
- Mfr. Part No.:
- P01139715
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£5,012.09
(exc. VAT)
£6,014.51
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 16 November 2026
- Plus 1 unit(s) shipping from 17 December 2026
- Plus 1 unit(s) shipping from 04 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5,012.09 |
*price indicative
- RS Stock No.:
- 237-2905
- Mfr. Part No.:
- P01139715
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Product Type | Insulation Tester | |
| Model Number | CA 6550 | |
| Tester Type | Insulation Tester | |
| Maximum Test Voltage | 10kV | |
| Minimum Test Voltage | 40V | |
| Display Type | LCD | |
| Battery Life | 2h | |
| Power Source | Battery | |
| Safety Category Voltage | 1kV | |
| Safety Category Level | CAT IV | |
| Width | 300mm | |
| Height | 200mm | |
| Length | 340mm | |
| Standards/Approvals | CE | |
| Weight | 6.2kg | |
| Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Product Type Insulation Tester | ||
Model Number CA 6550 | ||
Tester Type Insulation Tester | ||
Maximum Test Voltage 10kV | ||
Minimum Test Voltage 40V | ||
Display Type LCD | ||
Battery Life 2h | ||
Power Source Battery | ||
Safety Category Voltage 1kV | ||
Safety Category Level CAT IV | ||
Width 300mm | ||
Height 200mm | ||
Length 340mm | ||
Standards/Approvals CE | ||
Weight 6.2kg | ||
- COO (Country of Origin):
- FR
The Chauvin Arnoux CA 6550 and CA 6555 megohmmeter are tools of excellence to perform insulation checks with safety and precision. Their use on equipment and rotating machines, operating at 12 kV and above, complies with recommended practices. The multiple test modes allow both qualitatively qualifying non-control isolations. Also it investigate the problems on samples of insulation aging for the purpose of preventive maintenance.
Measuring range from 10 kΩ to 30 TΩ
Fixed or programmable test voltage from 40 V to 10/15 kV
5 mA load current
Real-time graphic display R (t) + u (t), i (t), i (u)
DAR / PI / DD / ΔR ratios (ppm / V)
Ramp and voltage step modes with burning mode,
"Early break" and "I-limit"
3 filters to optimize measurement stability
Calculation of R at a reference temperature
Memory capacity 80,000 measurements and Real time clock
Report generation via DataView software
