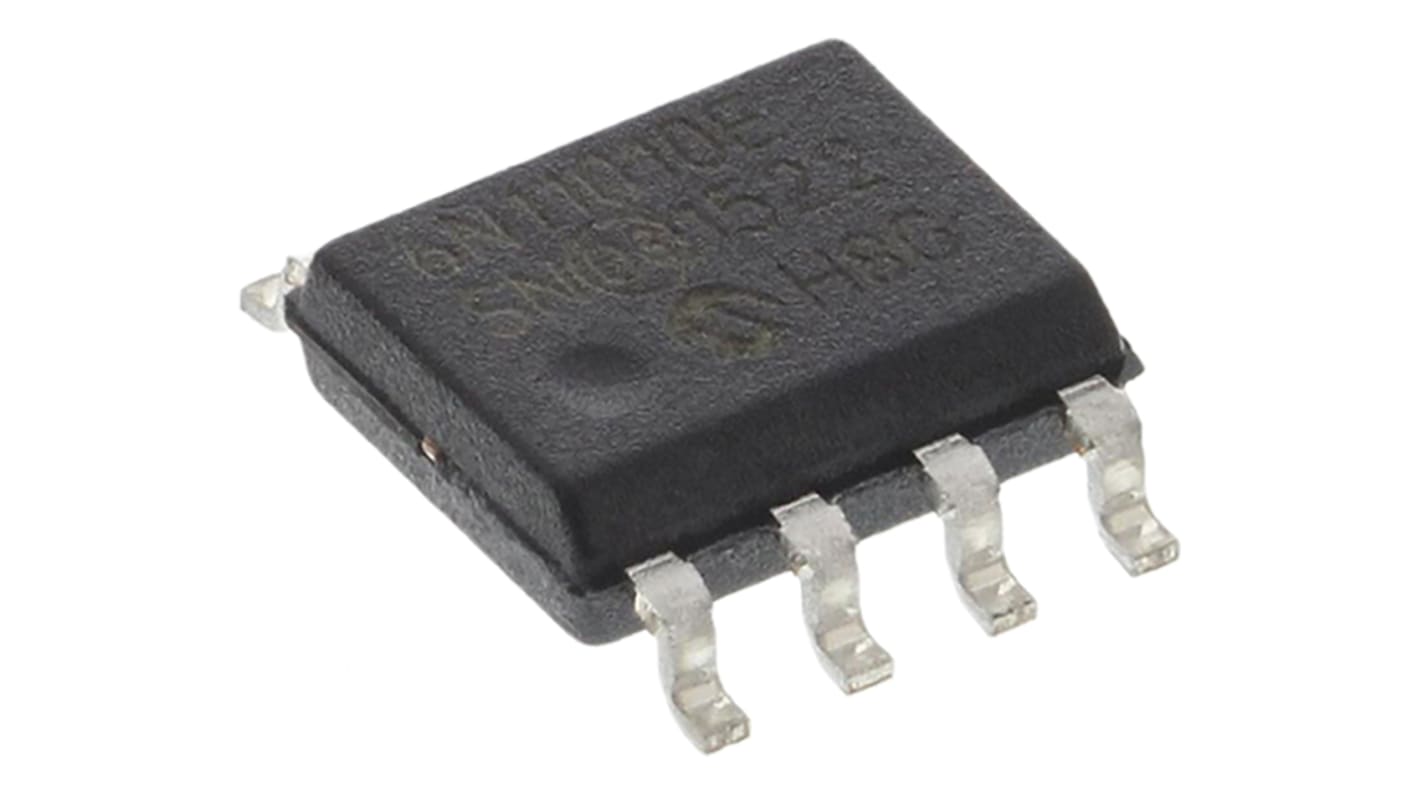

MCP6N11-010E/SN Microchip, Instrumentation Amplifier, 0.35V Offset 5MHz, R-RI/O, 1.8 5.5 V, 8-Pin SOIC
- RS Stock No.:
- 755-9552P
- Mfr. Part No.:
- MCP6N11-010E/SN
- Brand:
- Microchip
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 755-9552P
- Mfr. Part No.:
- MCP6N11-010E/SN
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Power Supply Type | Single | |
Package Type | SOIC | |
Mounting Type | Surface Mount | |
Typical Single Supply Voltage | 1.8 5.5 V | |
Pin Count | 8 | |
Rail to Rail | Rail to Rail Input/Output | |
Maximum Input Offset Voltage | 0.35V | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | +125 °C | |
Minimum CMRR | 81dB | |
Typical Gain Bandwidth Product | 5MHz | |
Maximum Supply Current | 0.8 mA | |
Height | 1.25mm | |
Dimensions | 4.9 x 3.9 x 1.25mm | |
Length | 4.9mm | |
Width | 3.9mm | |
Select all | ||
---|---|---|
Brand Microchip | ||
Power Supply Type Single | ||
Package Type SOIC | ||
Mounting Type Surface Mount | ||
Typical Single Supply Voltage 1.8 5.5 V | ||
Pin Count 8 | ||
Rail to Rail Rail to Rail Input/Output | ||
Maximum Input Offset Voltage 0.35V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Minimum CMRR 81dB | ||
Typical Gain Bandwidth Product 5MHz | ||
Maximum Supply Current 0.8 mA | ||
Height 1.25mm | ||
Dimensions 4.9 x 3.9 x 1.25mm | ||
Length 4.9mm | ||
Width 3.9mm | ||
- COO (Country of Origin):
- TH
MCP6N11 Instrumentation Amplifiers
Instrumentation Amplifiers, Microchip
Instrumentation Amplifier is a type of differential amplifier that has been outfitted with input buffer amplifiers, which eliminate the need for input impedance matching. Characteristics include very low DC offset, low drift, low noise, very high open-loop gain, very high common-mode rejection ratio, and very high input impedances.
