Rittal Acrylic, Aluminium IP54 Inspection Window for use with 1060000 and1360000 Enclosures instead of the Door,
- RS Stock No.:
- 202-3961
- Mfr. Part No.:
- 2761010
- Brand:
- Rittal
Subtotal (1 unit)*
£255.39
(exc. VAT)
£306.47
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £255.39 |
*price indicative
- RS Stock No.:
- 202-3961
- Mfr. Part No.:
- 2761010
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Inspection Window | |
| Length | 597mm | |
| Width | 597mm | |
| Height | 600mm | |
| Material | Acrylic, Aluminium | |
| For Use With | 1060000 and1360000 Enclosures instead of the Door, 1054000, AX 1010000 | |
| IP Rating | IP54 | |
| Series | AX 2761.010 | |
| Standards/Approvals | IEC 60529 | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Inspection Window | ||
Length 597mm | ||
Width 597mm | ||
Height 600mm | ||
Material Acrylic, Aluminium | ||
For Use With 1060000 and1360000 Enclosures instead of the Door, 1054000, AX 1010000 | ||
IP Rating IP54 | ||
Series AX 2761.010 | ||
Standards/Approvals IEC 60529 | ||

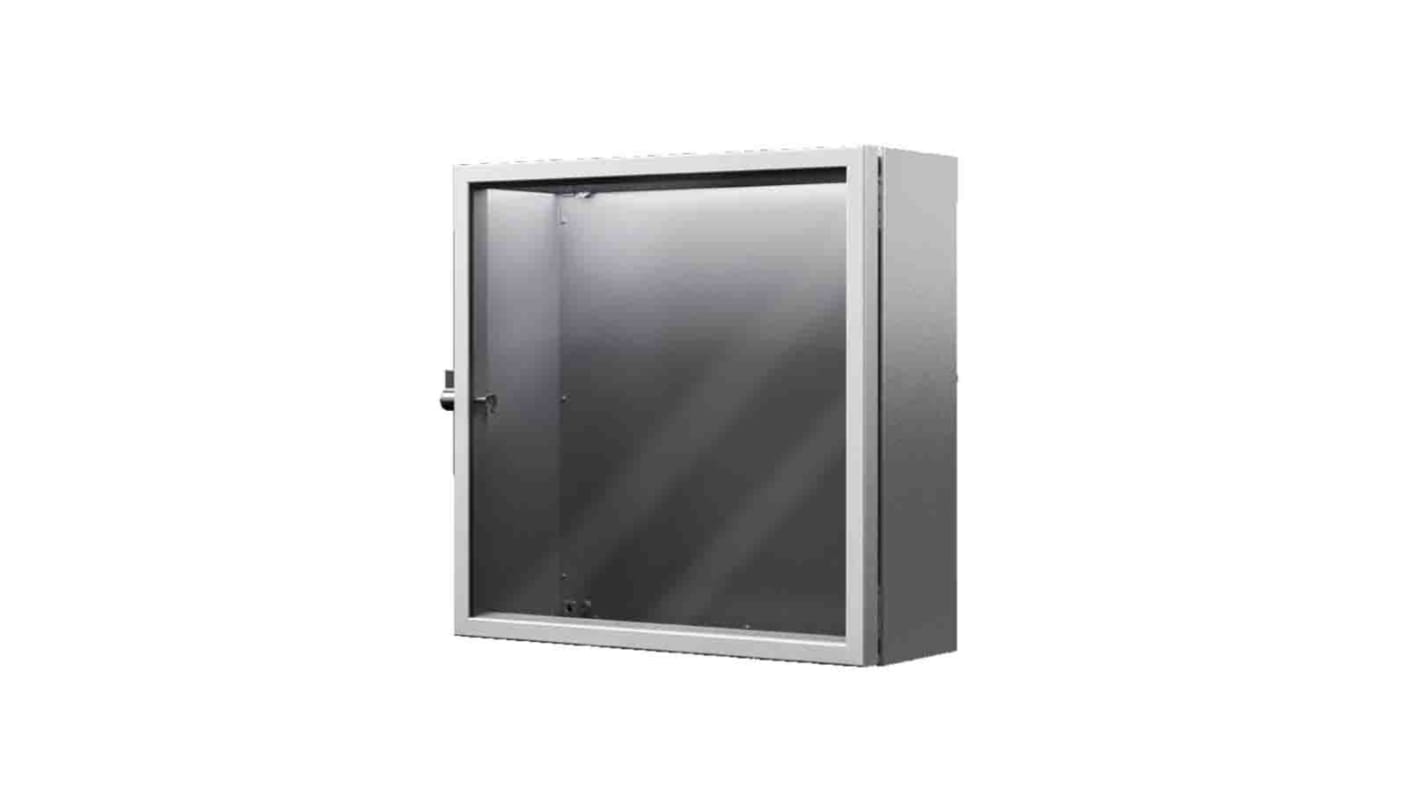

The Rittal FT viewing window is a viewing window for AX. It is used for mounting externally on the AX enclosures instead of door and on surfaces. The frame is made of aluminium and is natural anodised whereas the glass panel is acrylic.
IP 54 protection
Fits Enclosure type: AX
Build depth for components (max.): 58mm
