RS PRO 16mm probe Inspection Camera Kit, 1m Probe Length, LED Illumination

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

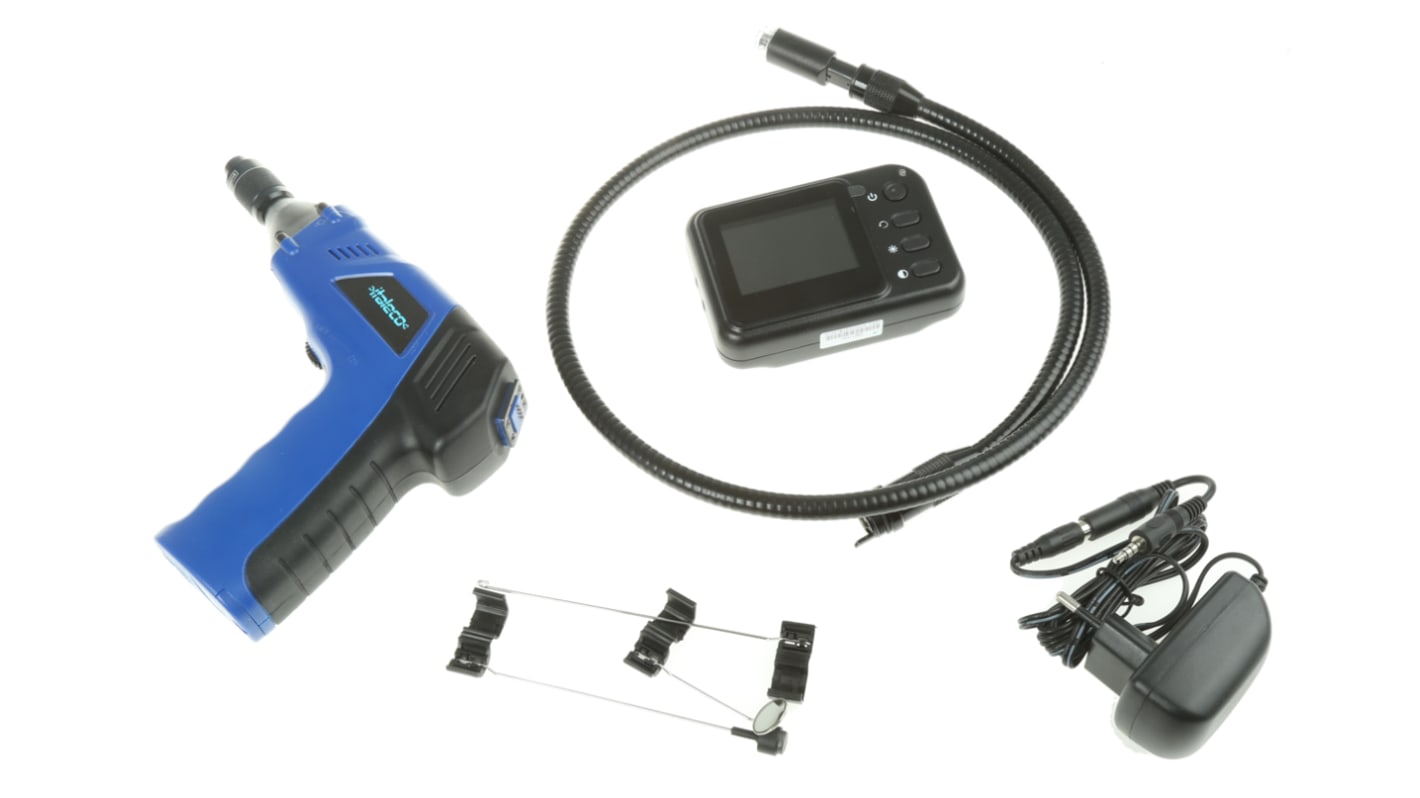

RS Pro Wireless LCD Digital Endoscope

The RS Pro Inspection endoscope kit is designed to make visual checks in hard-to-reach areas so much easier. Light and easy to manipulate, this device is ideal for investigating, identifying and resolving problems with its flexible extension cable and handy accessories.

Features and Benefits

Image sensor: 1/4 CMOS
Viewing angle: 30 / 45 degrees
Illumination: 2 LEDs
Depth of vision in darkness: 1.5 m
Flexible cable length: 1 m
Waterproof rating: IP67
Removable LCD monitor
Wireless video camera connection
Free field range of up to 15 m

Monitor

Display screen: 3.36 in. colour LCD with rechargeable lithium battery
Resolution: 480 x 240
Adjustable image position

Power supply

Four alkaline batteries (maximum life: two hours)

Accessories

RS Pro flexible 1 m extension cable has been designed for use with RS Pro Wireless LCD Digital Endoscope. This extension cable increases the camera head capacity to reach into more inaccessible places. RS stock no: 806-5866

Supplied with

Mirror, hook and magnet

Specifications
Attribute Value
Probe Length 1m
Probe Diameter 16mm
Illumination Type LED
Battery Type AA
Available to back order for despatch 27/01/2020
Price Each
£ 296.32
(exc. VAT)
£ 355.58
(inc. VAT)
Units
Per unit
1 +
£296.32
