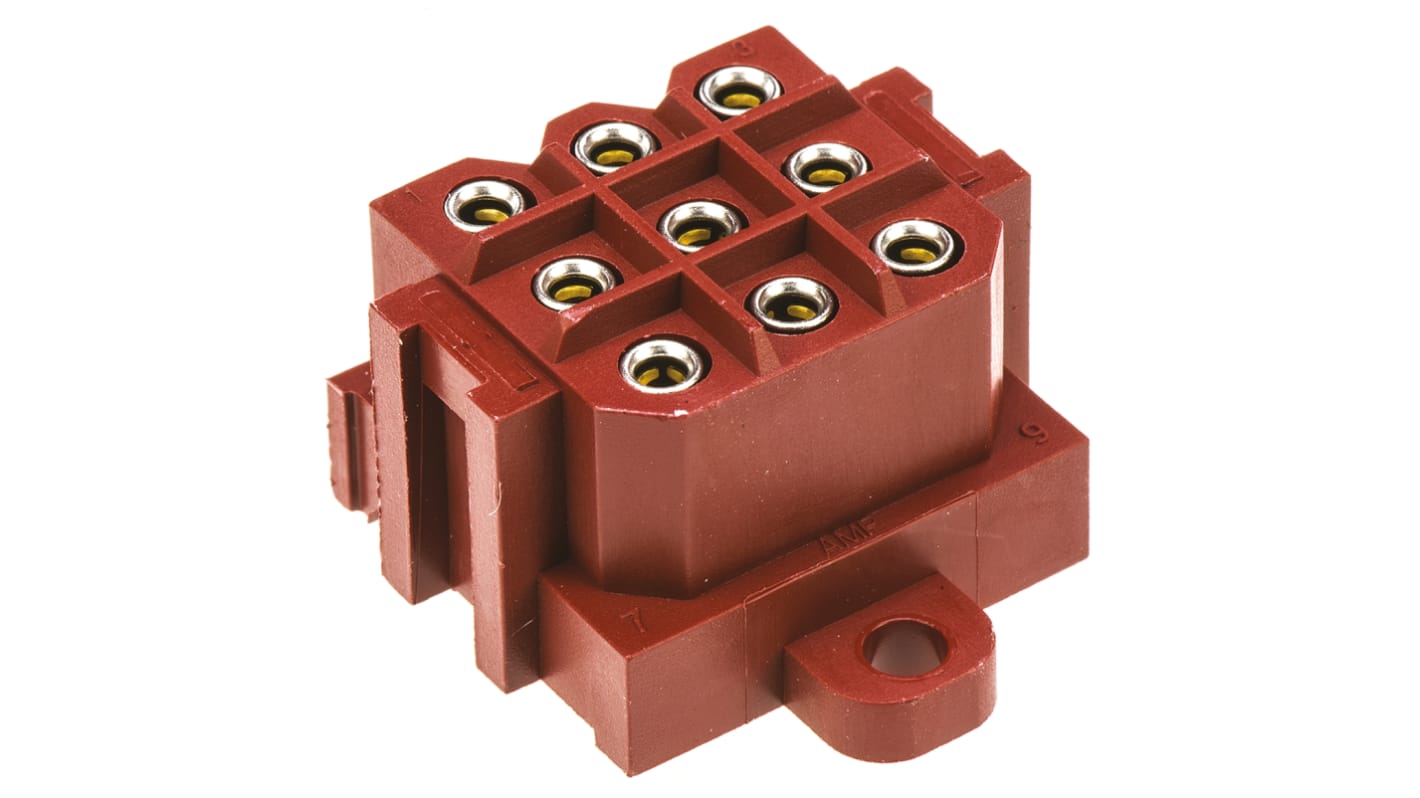

TE Connectivity, Metrimate Red Through Hole Industrial Power Socket, Rated At 14A, 600 V ac/dc
- RS Stock No.:
- 718-3531
- Mfr. Part No.:
- 207526-9
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 718-3531
- Mfr. Part No.:
- 207526-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Current Rating | 14A | |
| Plug/Socket | Socket | |
| Voltage Rating | 600 V ac/dc | |
| Mounting Type | Through Hole | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Series | Metrimate | |
| Colour | Red | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +130°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Current Rating 14A | ||
Plug/Socket Socket | ||
Voltage Rating 600 V ac/dc | ||
Mounting Type Through Hole | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Series Metrimate | ||
Colour Red | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +130°C | ||
TE Connectivity Metrimate 5mm Square Grid Pin and Socket PCB Headers
Metrimate square grid pin and socket PCB mount headers with red thermoplastic, 94V-0 rated housings and a 5mm centerline. These square grid pin and socket PCB mount headers are preloaded with copper alloy,plated tin or gold duplex pin contacts or phosphor bronze, plated tin or gold duplex socket contacts and have locking tabs and mounting ears.
5mm Pitch connectors
For panel or free mounting
Higher pinout than the Mate-N-Lok range
For panel or free mounting
Higher pinout than the Mate-N-Lok range
