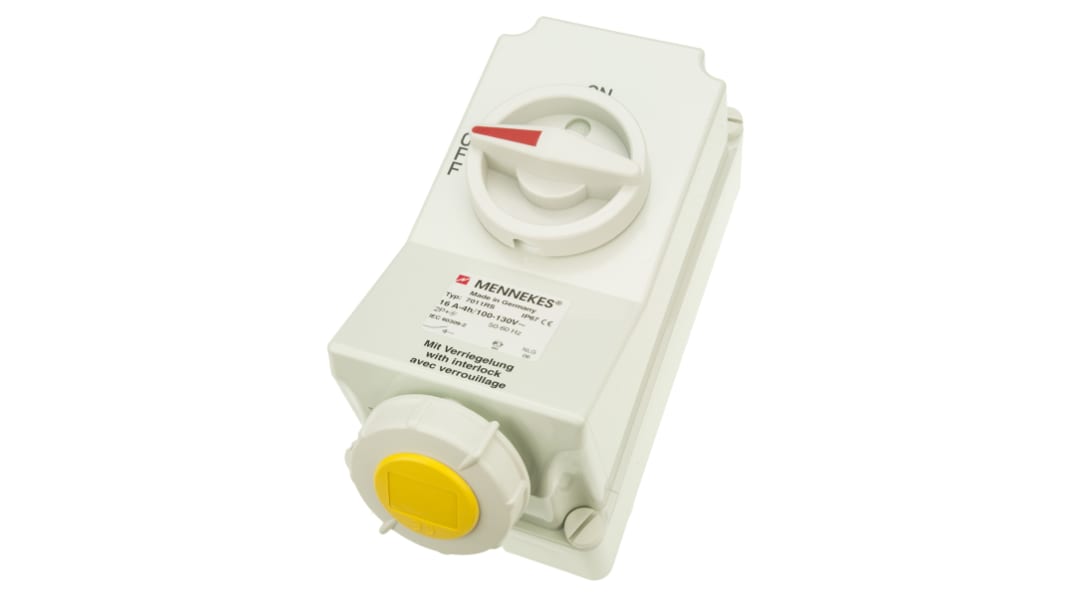

MENNEKES Switchable IP67 Industrial Interlock Socket 2P+E, Earthing Position 4h, 16A, 110 V
- RS Stock No.:
- 184-4255
- Mfr. Part No.:
- 7011A
- Brand:
- MENNEKES
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 184-4255
- Mfr. Part No.:
- 7011A
- Brand:
- MENNEKES
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MENNEKES | |
| Plug/Socket | Socket | |
| Pole Format | 2P+E | |
| Switchable | Yes | |
| Colour | Yellow | |
| IP Rating | IP67 | |
| Voltage Rating | 110 V | |
| Current Rating | 16A | |
| Body Orientation | Straight | |
| Dimensions | 252 x 118 x 144mm | |
| Earthing Position | 4h | |
| Body Material | Thermoplastic | |
| Depth | 144mm | |
| Length | 252mm | |
| Width | 118mm | |
Select all | ||
|---|---|---|
Brand MENNEKES | ||
Plug/Socket Socket | ||
Pole Format 2P+E | ||
Switchable Yes | ||
Colour Yellow | ||
IP Rating IP67 | ||
Voltage Rating 110 V | ||
Current Rating 16A | ||
Body Orientation Straight | ||
Dimensions 252 x 118 x 144mm | ||
Earthing Position 4h | ||
Body Material Thermoplastic | ||
Depth 144mm | ||
Length 252mm | ||
Width 118mm | ||
- COO (Country of Origin):
- DE
Vertical
Fully interlocked switched (phase) sockets give enhanced electrical safety.
Switch cannot be energised until the plug is inserted
Plug cannot be withdrawn with the switch in the ON position, which prolongs contact life
16A - 63A can be padlocked in the OFF position
Housings are moulded from thermoplastic materials, giving insulation, strength and durability properties
Continuous polyurethane gasket between lid and base
Neutral block must be removed first before fitting auxillary contact block
Plug cannot be withdrawn with the switch in the ON position, which prolongs contact life
16A - 63A can be padlocked in the OFF position
Housings are moulded from thermoplastic materials, giving insulation, strength and durability properties
Continuous polyurethane gasket between lid and base
Neutral block must be removed first before fitting auxillary contact block
* Has metric threads on mounting box cable entries
Standards
BS4343 (IEC/EN 60309-2)
