RS PRO Switchable IP44 Industrial Interlock Socket 2P+E, Earthing Position 6h, 32A, 250 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

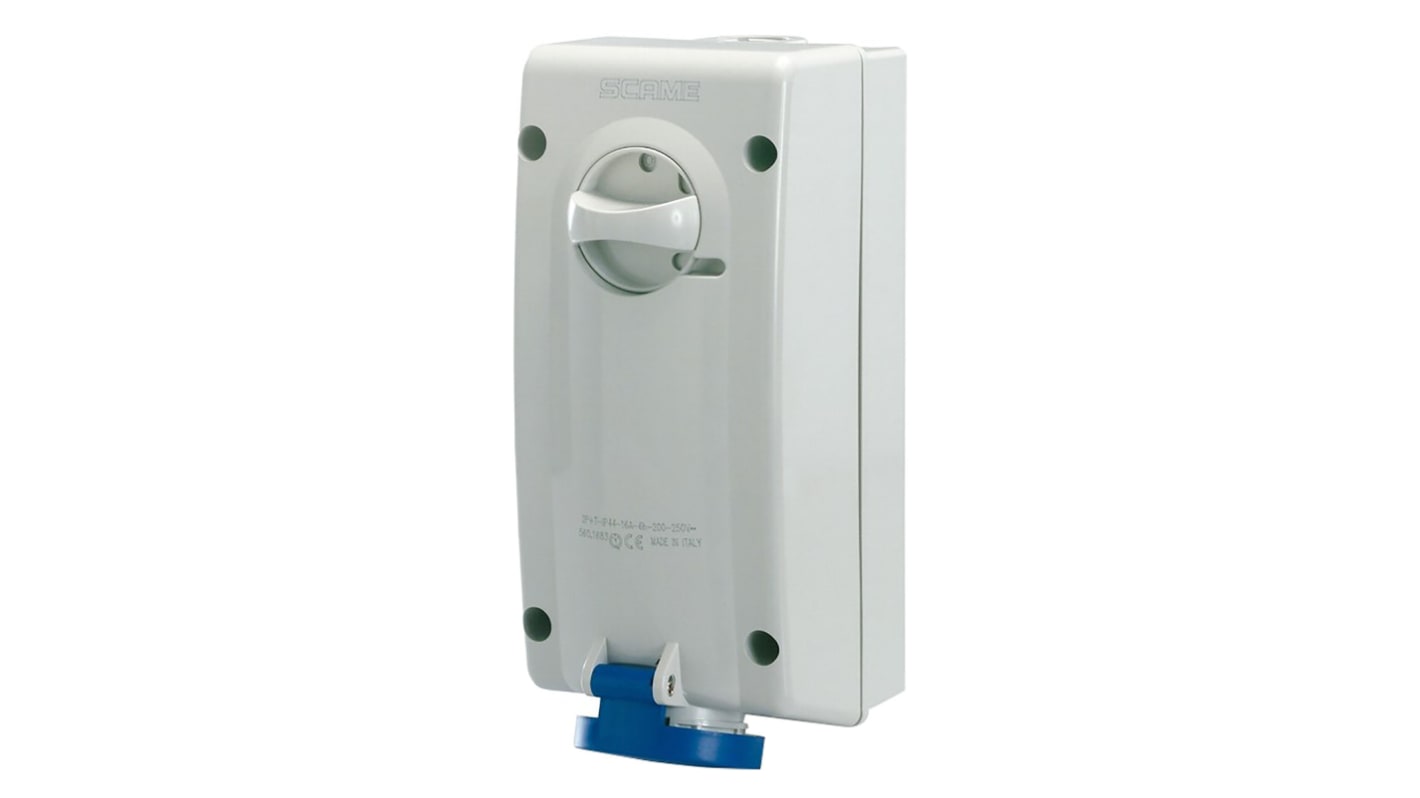

Vertical style with switch

RS pro surface mounted interlocked sockets feature hard plastic housing and a covered socket. They are designed for industrial use, but may also be suitable for a commercial environment.

Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.

These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)

Specifications
Attribute Value
Plug/Socket Socket
Pole Format 2P+E
Switchable Yes
Colour Blue
IP Rating IP44
Voltage Rating 250 V
Current Rating 32A
Body Orientation Straight
Dimensions 106 x 136 x 266mm
Earthing Position 6h
Body Material Plastic
Depth 266mm
Length 106mm
Width 136mm
2 In stock - FREE next working day delivery available
Price Each
£ 174.18
(exc. VAT)
£ 209.02
(inc. VAT)
Units
Per unit
1 +
£174.18
