Scame Switchable IP44 Industrial Interlock Socket 2P+E, Earthing Position 4h, 16A, 130 V
- RS Stock No.:
- 125-4368
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 125-4368
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Plug/Socket | Socket | |
| Pole Format | 2P+E | |
| Switchable | Yes | |
| Colour | Yellow | |
| IP Rating | IP44 | |
| Voltage Rating | 130 V | |
| Current Rating | 16A | |
| Body Orientation | Straight | |
| Dimensions | 106 x 126.4 x 257mm | |
| Earthing Position | 4h | |
| Body Material | Plastic | |
| Depth | 257mm | |
| Length | 106mm | |
| Width | 126.4mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Plug/Socket Socket | ||
Pole Format 2P+E | ||
Switchable Yes | ||
Colour Yellow | ||
IP Rating IP44 | ||
Voltage Rating 130 V | ||
Current Rating 16A | ||
Body Orientation Straight | ||
Dimensions 106 x 126.4 x 257mm | ||
Earthing Position 4h | ||
Body Material Plastic | ||
Depth 257mm | ||
Length 106mm | ||
Width 126.4mm | ||
- COO (Country of Origin):
- IT

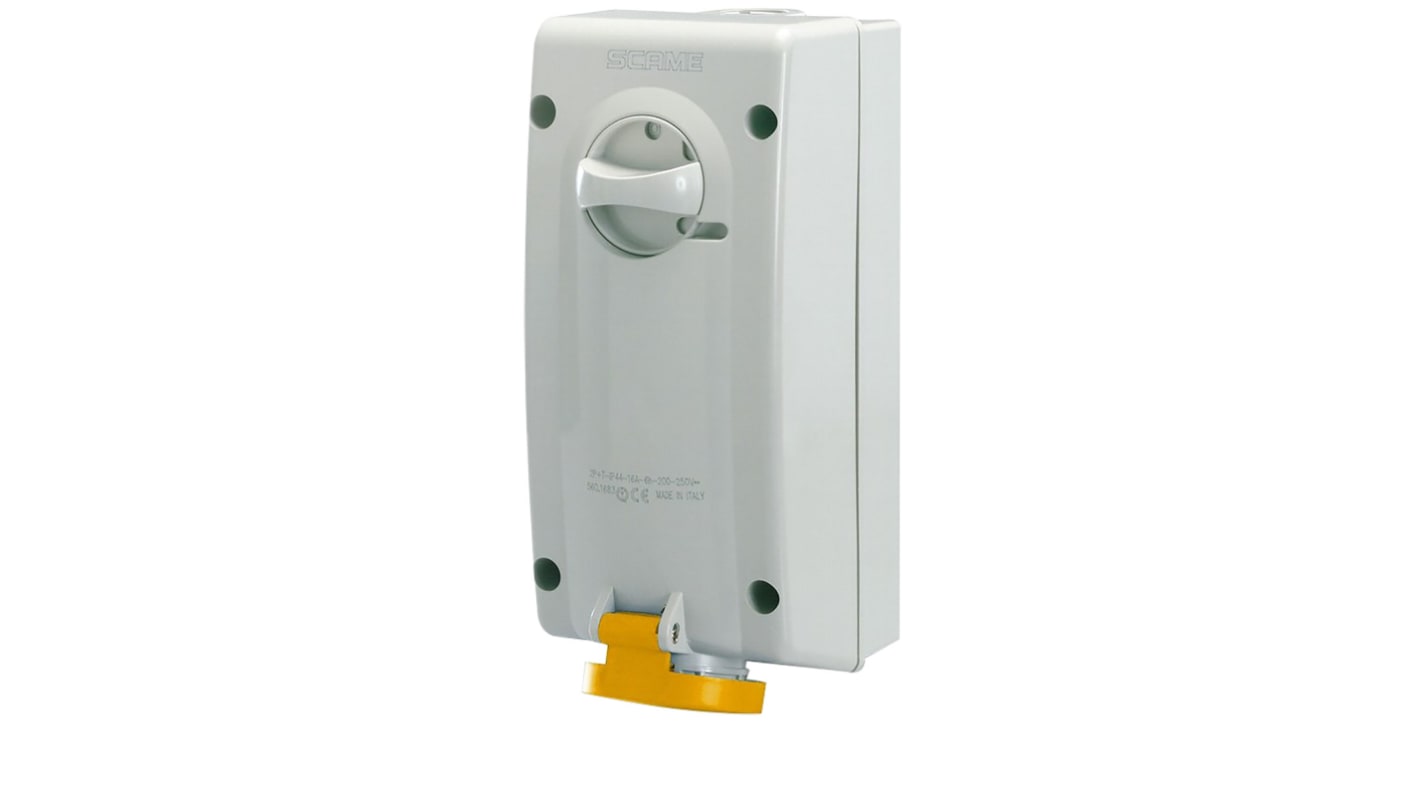

Vertical style with switch
Scame surface mounted interlocked sockets feature hard plastic housing and a covered socket. They are designed for industrial use, but may also be suitable for a commercial environment.
Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.
These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)
Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.
These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)
