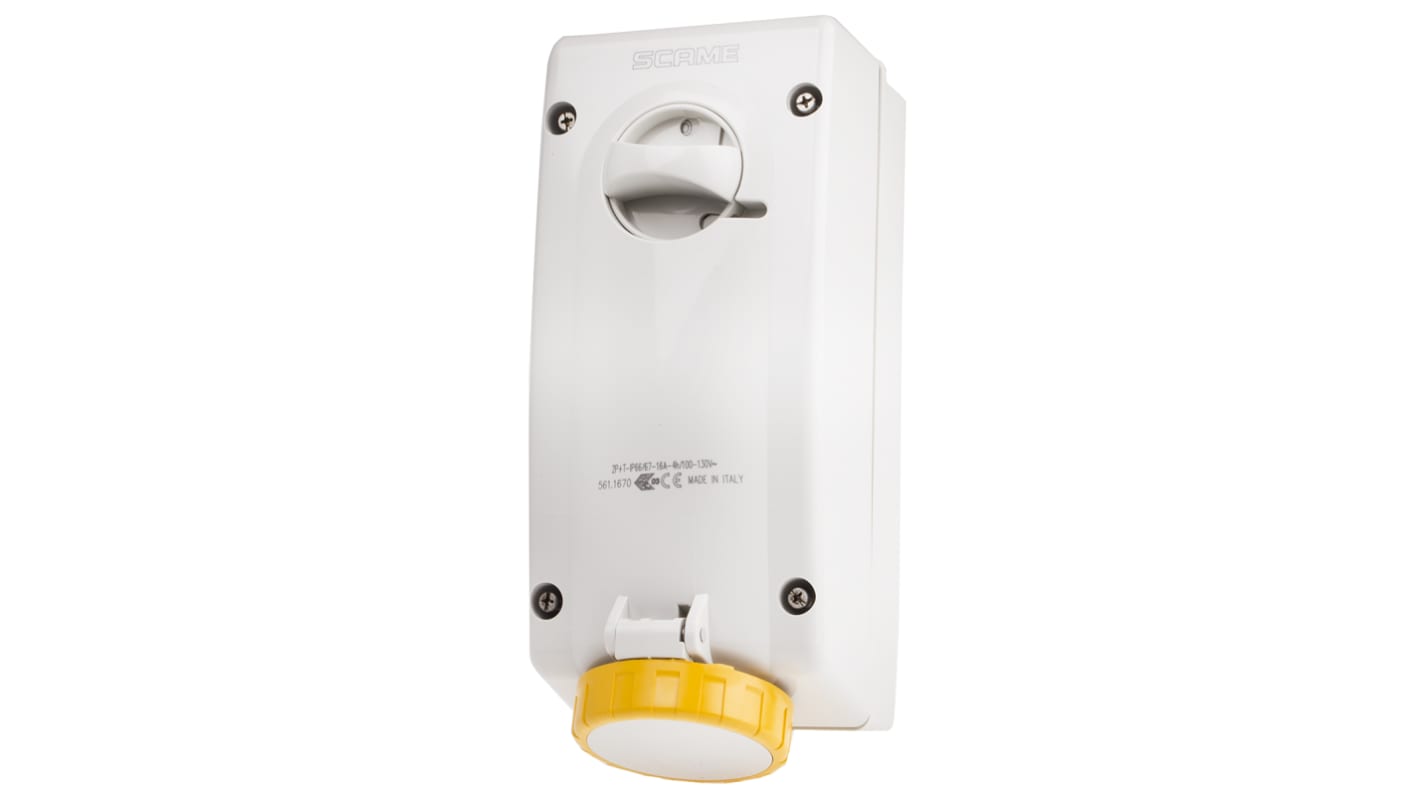

RS PRO Switchable IP67 Industrial Interlock Socket 2P+E, Earthing Position 4h, 16A, 130 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Vertical style with switch

RS pro surface mounted interlocked sockets feature hard plastic housing and a covered socket. They are designed for industrial use, but may also be suitable for a commercial environment.

Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.

These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)

Specifications
Attribute Value
Plug/Socket Socket
Pole Format 2P+E
Switchable Yes
Colour Yellow
IP Rating IP67
Voltage Rating 130 V
Current Rating 16A
Body Orientation Straight
Dimensions 341 x 106 x 145mm
Earthing Position 4h
Body Material Polymer
Depth 145mm
Length 341mm
Width 106mm
2 In stock - FREE next working day delivery available
Price Each
£ 121.75
(exc. VAT)
£ 146.10
(inc. VAT)
Units
Per unit
1 +
£121.75
