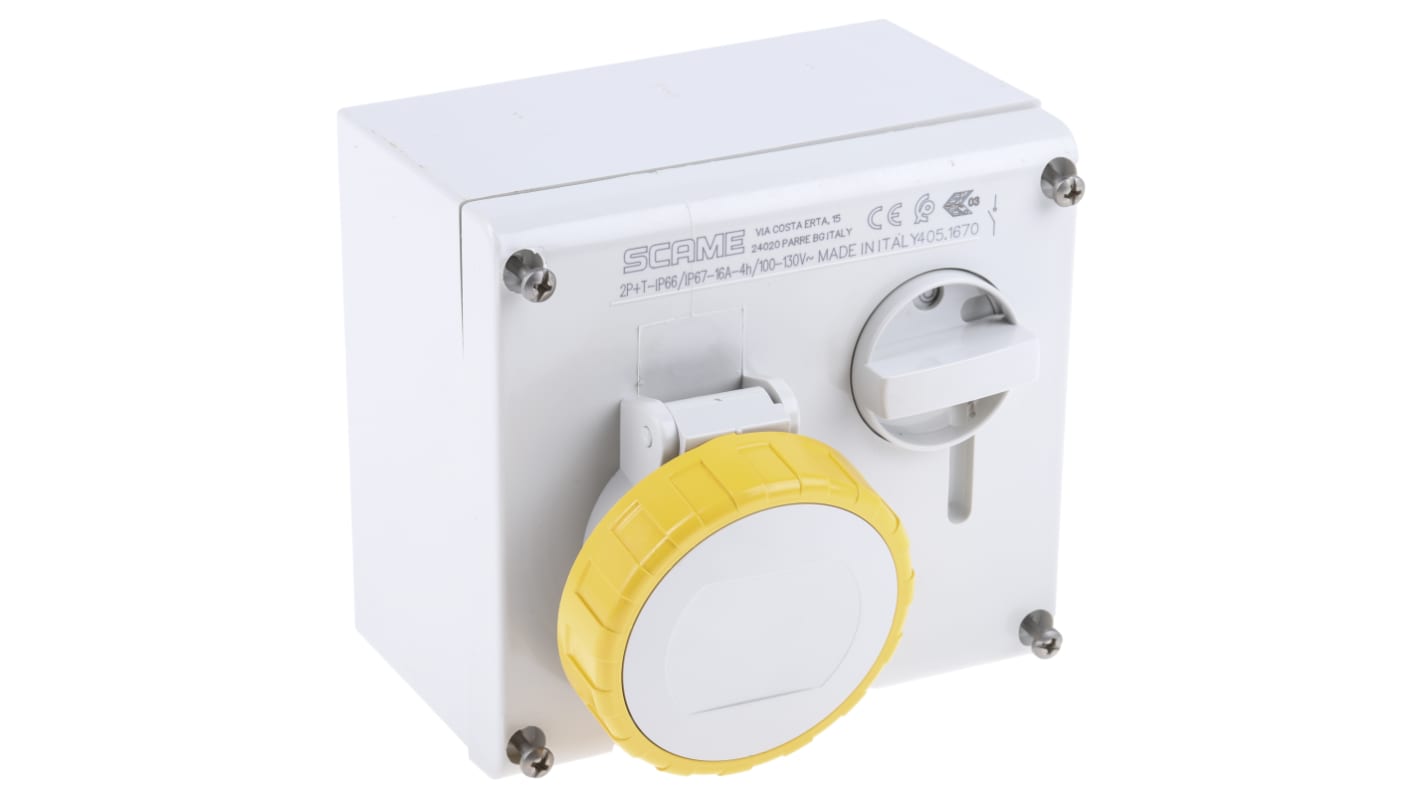

RS PRO Right Angle Switchable IP66, IP67 Industrial Interlock Socket 2P+E, Earthing Position 4h, 16A, 130 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Horizontal style with switch

RS Pro surface mounted outlet sockets feature hard plastic housing and a socket cover. They are desinged for industrial use, but are also suitable for commercial environments.

Designed with safety in mind, this range also features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.

These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)

Specifications
Attribute Value
Plug/Socket Socket
Pole Format 2P+E
Switchable Yes
Colour Yellow
IP Rating IP66, IP67
Voltage Rating 130 V
Current Rating 16A
Body Orientation Right Angle
Dimensions 136 x 125 x 202mm
Earthing Position 4h
Body Material Polymer
Depth 202mm
Length 136mm
Width 125mm
16 In stock - FREE next working day delivery available
Price Each
£ 60.36
(exc. VAT)
£ 72.43
(inc. VAT)
Units
Per unit
1 - 9
£60.36
10 +
£57.34
