Kunbus RevPi Connect, Industrial Computer, 1.2 GHz Quad-Core, BCM2837 1.2 GHz, 1 GB (RAM), 4 GB (Flash), Linux
- RS Stock No.:
- 182-5570
- Mfr. Part No.:
- PR100274
- Brand:
- Kunbus
Bulk discount available
Subtotal (1 unit)*
£325.79
(exc. VAT)
£390.95
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 6 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 4 | £325.79 |
| 5 - 9 | £309.50 |
| 10 - 24 | £297.12 |
| 25 - 49 | £289.30 |
| 50 + | £281.81 |
*price indicative
- RS Stock No.:
- 182-5570
- Mfr. Part No.:
- PR100274
- Brand:
- Kunbus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kunbus | |
| Processor Type | 1.2 GHz Quad-Core, BCM2837 | |
| Clock Speed | 1.2 GHz | |
| Series | RevPi Connect | |
| Compatible Operating System | Linux | |
| Bus Type | ConBridge, PiBridge | |
| Supply Voltage | 12 → 24 V dc | |
| Port Type | 1 x ConBridge System Bus, 1 x Micro-USB, 1 x Micro HDMI, 1 x PiBridge System Bus, 1 x RJ45 Ethernet, 1 x RS485, 2 x USB | |
| Dimensions | 96 x 45 x 110.5 mm | |
| Housing Material | Polycarbonate | |
| Graphic Output Onboard | Yes | |
| Onboard Memory | 1 GB (RAM), 4 GB (Flash) | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +55°C | |
Select all | ||
|---|---|---|
Brand Kunbus | ||
Processor Type 1.2 GHz Quad-Core, BCM2837 | ||
Clock Speed 1.2 GHz | ||
Series RevPi Connect | ||
Compatible Operating System Linux | ||
Bus Type ConBridge, PiBridge | ||
Supply Voltage 12 → 24 V dc | ||
Port Type 1 x ConBridge System Bus, 1 x Micro-USB, 1 x Micro HDMI, 1 x PiBridge System Bus, 1 x RJ45 Ethernet, 1 x RS485, 2 x USB | ||
Dimensions 96 x 45 x 110.5 mm | ||
Housing Material Polycarbonate | ||
Graphic Output Onboard Yes | ||
Onboard Memory 1 GB (RAM), 4 GB (Flash) | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +55°C | ||
- COO (Country of Origin):
- DE

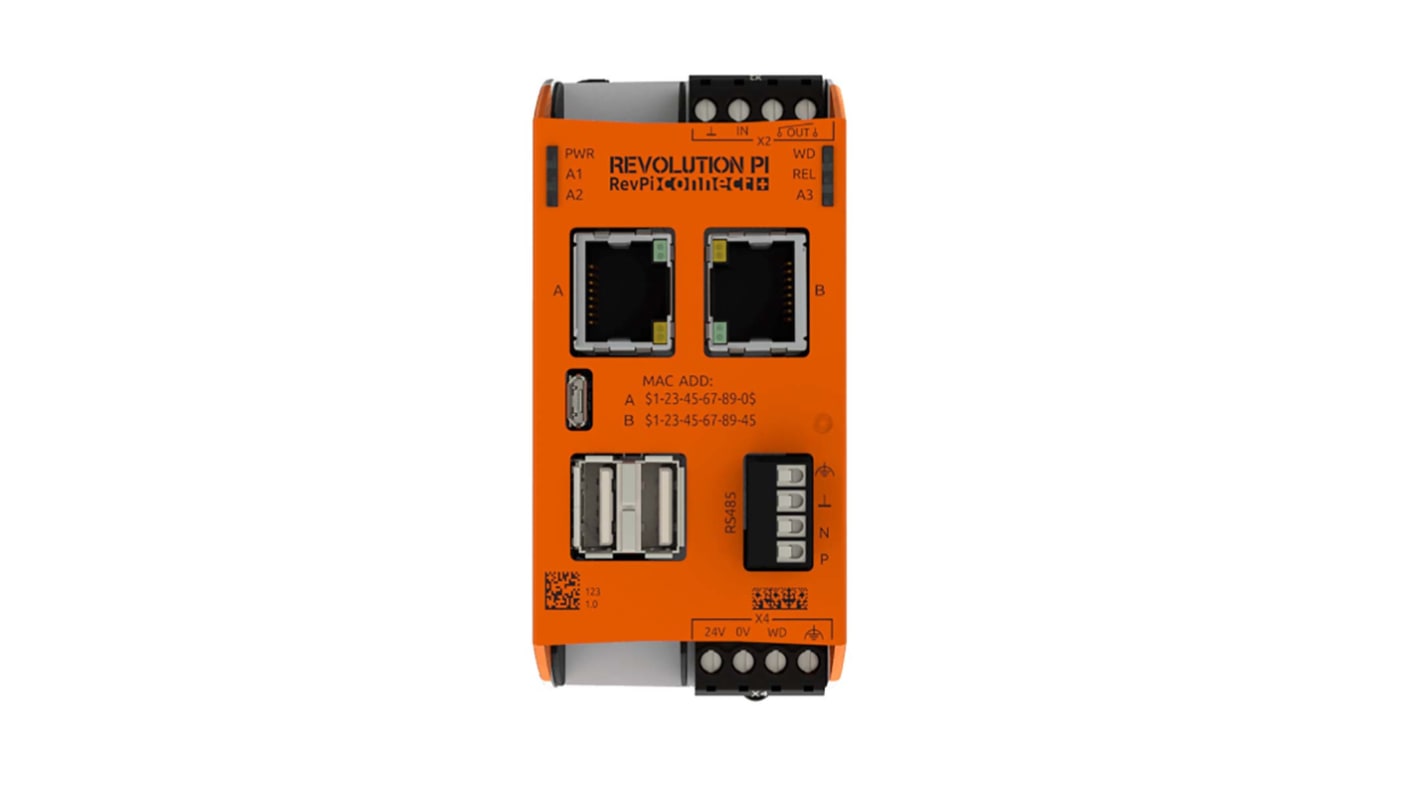

Kunbus Revolution Pi Connect
Introducing the latest in the line of KUNBUS' Revolution Pi product range, the RevPi Connect. This is your solution to IIoT machine and plant engineering. Open source design allows varying levels of customisation with limitless possibilities.
Features and benefits
• 2 x RJ45 Ethernet ports allowing simultaneous support for both automation and IT networking, allowing for your data to be sent from your operations to a cloud-based or higher ERP system.
• 2 x USB ports furthering your connectivity functionality with other PCs/Laptops or similar expansion modules.
• 1 x 4-pin RS485 interface allowing support of local networks, communication links and more.
• 1 x Micro-HDMI port for seamless connectivity to displays such as projects or monitors.
• 1 x Micro-USB socket furthering the connectivity to devices that have the same output.
•Plug & Play functionality with other RevPi products such as the Digital and Analogue I/O modules, Fieldbus gateways or radio modules. These integrations are seamless and easy. A relay output on the Connect monitors any and all connected devices or modules so you can have the reassurance of a fully functioning circuit.
•Raspbian operating system as standard (customised version) with real-time patch.
•Master & Slave capabilities with Modbus RTU and Modbus TCP protocols. Integration into common fieldbus or industrial Ethernet networks such as PROFIBUS or EtherCAT can be utilised with the other RevPi expansion modules on offer. The device has the capability of expanding into a small industrial control unit if you so wish.
• 2 x USB ports furthering your connectivity functionality with other PCs/Laptops or similar expansion modules.
• 1 x 4-pin RS485 interface allowing support of local networks, communication links and more.
• 1 x Micro-HDMI port for seamless connectivity to displays such as projects or monitors.
• 1 x Micro-USB socket furthering the connectivity to devices that have the same output.
•Plug & Play functionality with other RevPi products such as the Digital and Analogue I/O modules, Fieldbus gateways or radio modules. These integrations are seamless and easy. A relay output on the Connect monitors any and all connected devices or modules so you can have the reassurance of a fully functioning circuit.
•Raspbian operating system as standard (customised version) with real-time patch.
•Master & Slave capabilities with Modbus RTU and Modbus TCP protocols. Integration into common fieldbus or industrial Ethernet networks such as PROFIBUS or EtherCAT can be utilised with the other RevPi expansion modules on offer. The device has the capability of expanding into a small industrial control unit if you so wish.
Applications
• Automation (IIoT & Industry 4.0)
• Factory Automation
• Industrial Networks
• Plant & Asset Management
• Industrial Computer systems
