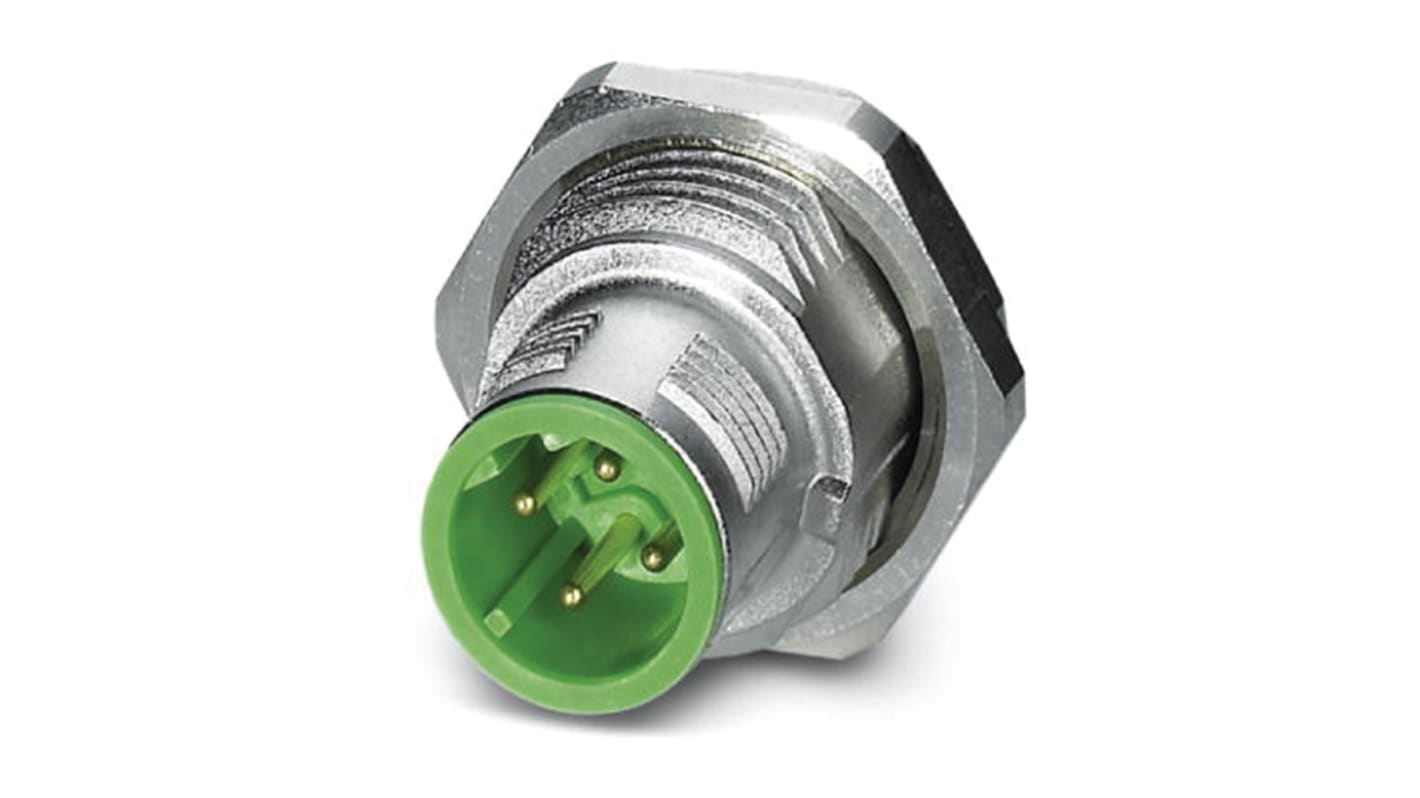

Phoenix Contact Circular Connector, 4 Contacts, Rear, M12 Connector, Plug, Male, IP67, SACC Series
- RS Stock No.:
- 857-0440
- Mfr. Part No.:
- 1456556
- Brand:
- Phoenix Contact
Subtotal (1 box of 20 units)*
£213.11
(exc. VAT)
£255.73
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £213.11 | £10.656 |
*price indicative
- RS Stock No.:
- 857-0440
- Mfr. Part No.:
- 1456556
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Circular Connector | |
| Number of Contacts | 4 | |
| Mount Type | Rear | |
| Current | 4A | |
| Connector Size | M12 | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| IP Rating | IP67 | |
| Orientation | Straight | |
| Series | SACC | |
| Coding | D | |
| Voltage | 250V | |
| Minimum Operating Temperature | -40°C | |
| Mating Type | SPEEDCON | |
| Shell Size | M12 | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CHINA RoHS, cUL, EF3.0, EU REACH SVHC, EU RoHS, UL, UL 94 HB | |
| Contact Plating | Nickel Gold Alloy | |
| Contact Material | Copper Zinc Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Circular Connector | ||
Number of Contacts 4 | ||
Mount Type Rear | ||
Current 4A | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
IP Rating IP67 | ||
Orientation Straight | ||
Series SACC | ||
Coding D | ||
Voltage 250V | ||
Minimum Operating Temperature -40°C | ||
Mating Type SPEEDCON | ||
Shell Size M12 | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CHINA RoHS, cUL, EF3.0, EU REACH SVHC, EU RoHS, UL, UL 94 HB | ||
Contact Plating Nickel Gold Alloy | ||
Contact Material Copper Zinc Alloy | ||
- COO (Country of Origin):
- DE
Bus system flush-type plug, with green contact carrier, 4-pos., M12 SPEEDCON, shielded, D-coded, rear/screw mounting with M16 thread, with straight solder connection
