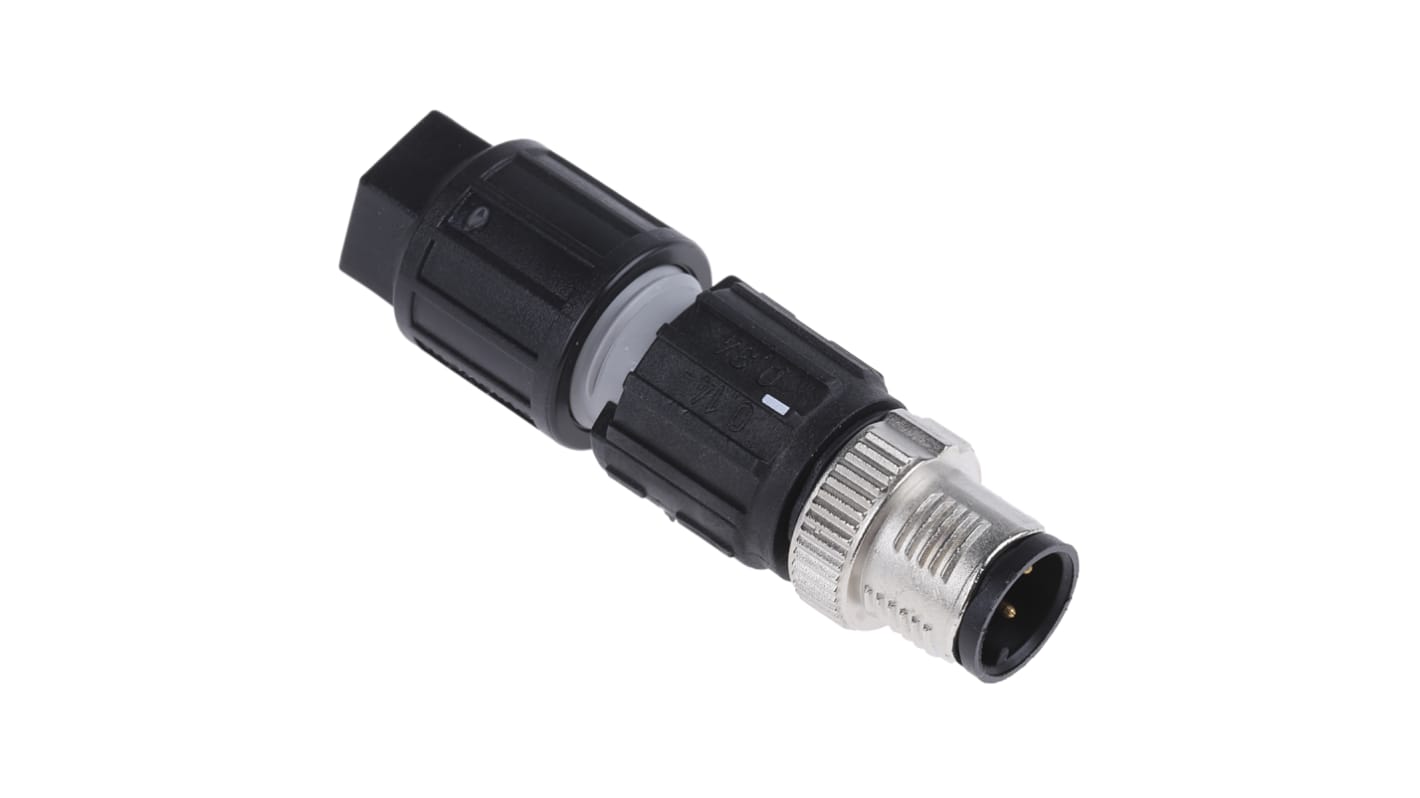

Phoenix Contact Circular Connector, 4 Contacts, M12 Connector, Plug, Male, IP67, SACC Series
- RS Stock No.:
- 652-8194
- Distrelec Article No.:
- 110-33-778
- Mfr. Part No.:
- 1521575
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£13.67
(exc. VAT)
£16.40
(inc. VAT)
- RS Stock No.:
- 652-8194
- Distrelec Article No.:
- 110-33-778
- Mfr. Part No.:
- 1521575
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 4 | |
Connector Size | M12 | |
Plug/Socket | Plug | |
Contact Gender | Male | |
IP Rating | IP67 | |
Current Rating | 4.0A | |
Body Orientation | Straight | |
Series | SACC | |
Coding | A | |
Voltage Rating | 125.0 V | |
Housing Material | Polyamide | |
Contact Plating | Nickel Plated | |
Shielded/Unshielded | Unshielded | |
Outer Diameter | 16.3mm | |
Minimum Operating Temperature | -25°C | |
Contact Material | CuSn | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Body Orientation Straight | ||
Series SACC | ||
Coding A | ||
Voltage Rating 125.0 V | ||
Housing Material Polyamide | ||
Contact Plating Nickel Plated | ||
Shielded/Unshielded Unshielded | ||
Outer Diameter 16.3mm | ||
Minimum Operating Temperature -25°C | ||
Contact Material CuSn | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Phoenix Contact Circular Connector, 4A Current Rating, SPEEDCON Fast Locking System - SACC-MS-4QO-0,34-M SCO - 1521575
To receive a reliable signal in the field, turn to this circular connector from Phoenix Contact. Its M12-sized male-gendered plug features four contacts for rapid-fire connectivity. The straight-shaped unit is easy to handle with its ergonomic circular body. It's quick to connect, too, thanks to the SPEEDCON fast-locking system. You'll be able to make electrical connections in half a twist with the plug-and-turn principle, which reduces connection time by up to 90%.
This circular connector is A-coded, making it a good fit for linking sensors, actuators and motors. It supports DC power and 1Gbit Ethernet cables for universal use. A 4A current rating means it stands up to high-energy installations. As there's an IDC built right into the device's design, you'll be able to connect in a flash without the need to strip down wires first.
This circular connector is A-coded, making it a good fit for linking sensors, actuators and motors. It supports DC power and 1Gbit Ethernet cables for universal use. A 4A current rating means it stands up to high-energy installations. As there's an IDC built right into the device's design, you'll be able to connect in a flash without the need to strip down wires first.
Features & Benefits
• IP67 rating indicates it's dust-tight and waterproof, so safe to use in harsh environmental conditions
• Wide operating temperature range between -25°C and +80°C means it performs in challenging conditions
• Compact 54mm length fits easily into tight setups
• Wide operating temperature range between -25°C and +80°C means it performs in challenging conditions
• Compact 54mm length fits easily into tight setups
