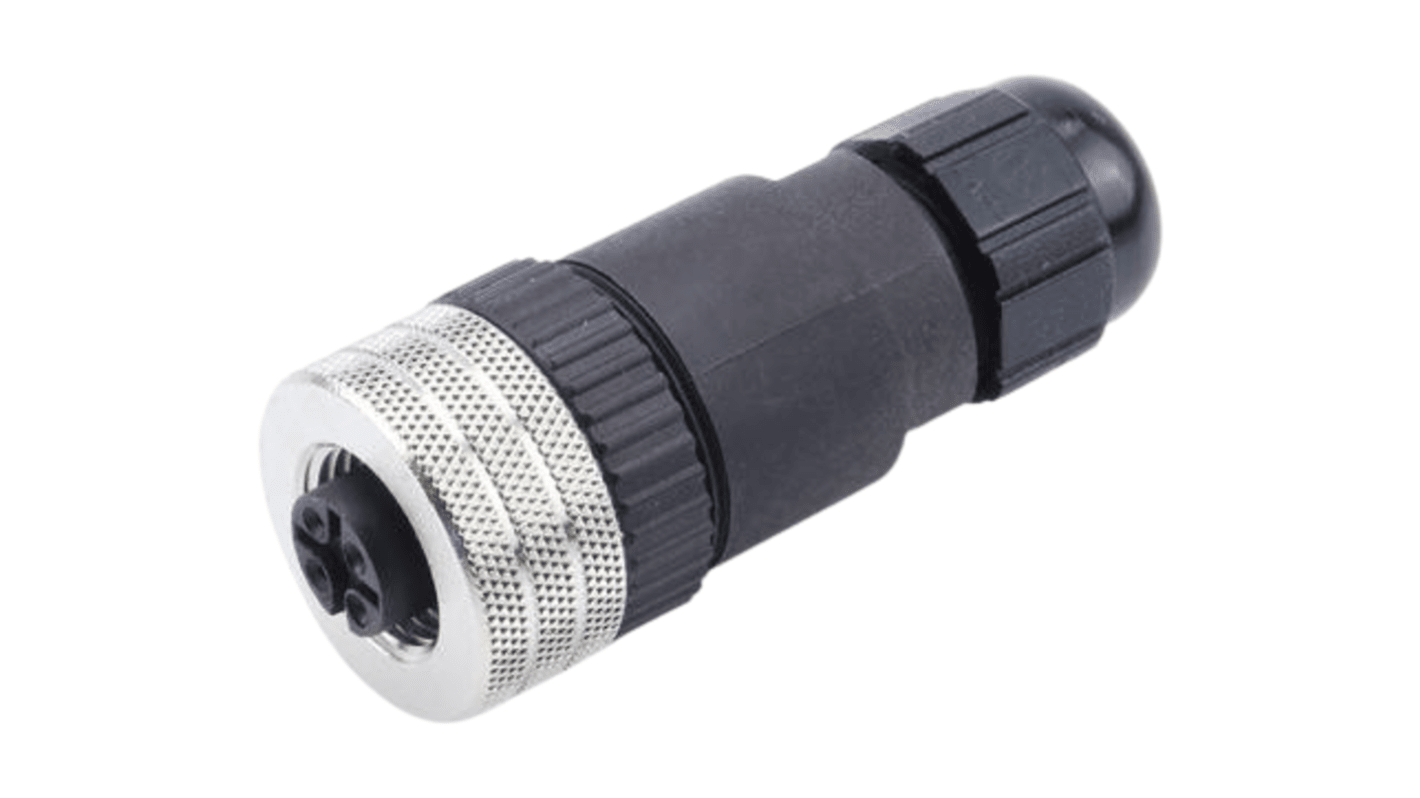

Molex Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67, Micro-Change Series
- RS Stock No.:
- 822-1589
- Mfr. Part No.:
- 120071-0035
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£30.19
(exc. VAT)
£36.23
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1 unit(s), ready to ship
Units | Per unit |
---|---|
1 - 4 | £30.19 |
5 - 9 | £28.65 |
10 + | £27.96 |
*price indicative
- RS Stock No.:
- 822-1589
- Mfr. Part No.:
- 120071-0035
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Number of Contacts | 4 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Crimp | |
IP Rating | IP67 | |
Current Rating | 4.0A | |
Series | Micro-Change | |
Body Orientation | Straight | |
Voltage Rating | 250.0 V , 300.0 V | |
Mating Type | Threaded | |
Housing Material | Polymer | |
Pole Format | 4P | |
Contact Plating | Silver | |
Series Number | 120071 | |
Minimum Operating Temperature | -25°C | |
Contact Material | Copper | |
Maximum Operating Temperature | +90°C | |
Outer Diameter | 2.5 → 6.5mm | |
Select all | ||
---|---|---|
Brand Molex | ||
Number of Contacts 4 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Crimp | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Series Micro-Change | ||
Body Orientation Straight | ||
Voltage Rating 250.0 V , 300.0 V | ||
Mating Type Threaded | ||
Housing Material Polymer | ||
Pole Format 4P | ||
Contact Plating Silver | ||
Series Number 120071 | ||
Minimum Operating Temperature -25°C | ||
Contact Material Copper | ||
Maximum Operating Temperature +90°C | ||
Outer Diameter 2.5 → 6.5mm | ||
Molex Micro-Change Series Circular Connector, 4 Contacts, IP67 Protection - 120071-0035
This circular connector is a field attachable component, specifically designed with a straight female socket and accommodating cable diameters of 3.30 to 6.60mm. Its robust construction ensures high performance across various demanding environments.
Features & Benefits
• IP67 rating ensures resistance to water and dust
• Suitable for cable mounting for versatile installation
• Crimp termination method allows for secure connections
• Silver-plated contacts enhance conductivity and resistance
• Female socket connector facilitates easy integration
• Suitable for cable mounting for versatile installation
• Crimp termination method allows for secure connections
• Silver-plated contacts enhance conductivity and resistance
• Female socket connector facilitates easy integration
Applications
• Used with M12 connectors for industrial automation systems
• Suitable for connecting sensors in electrical installations
• Ideal for harsh environments requiring waterproof connectors
• Effective in machinery requiring durable electrical connections
• Suitable for connecting sensors in electrical installations
• Ideal for harsh environments requiring waterproof connectors
• Effective in machinery requiring durable electrical connections
What type of coupling mechanism does it utilise?
The circular connector uses an internal thread coupling type, providing a secure fit between the connector and mating components.
What are the voltage and current ratings for safe operation?
It can handle a maximum voltage of 250V AC and 300V DC with a current rating of 4A per contact, ensuring reliable performance in various applications.
What materials are used in the construction of the connector?
The connector body is made of polymer, while the coupling nut is nickel-plated brass, enhancing durability and resistance to wear.
What is the significance of the connector's operating temperature range?
The extensive operating range of -25°C to +90°C makes it suitable for a wide variety of applications, ensuring functionality in both low and high-temperature environments.
