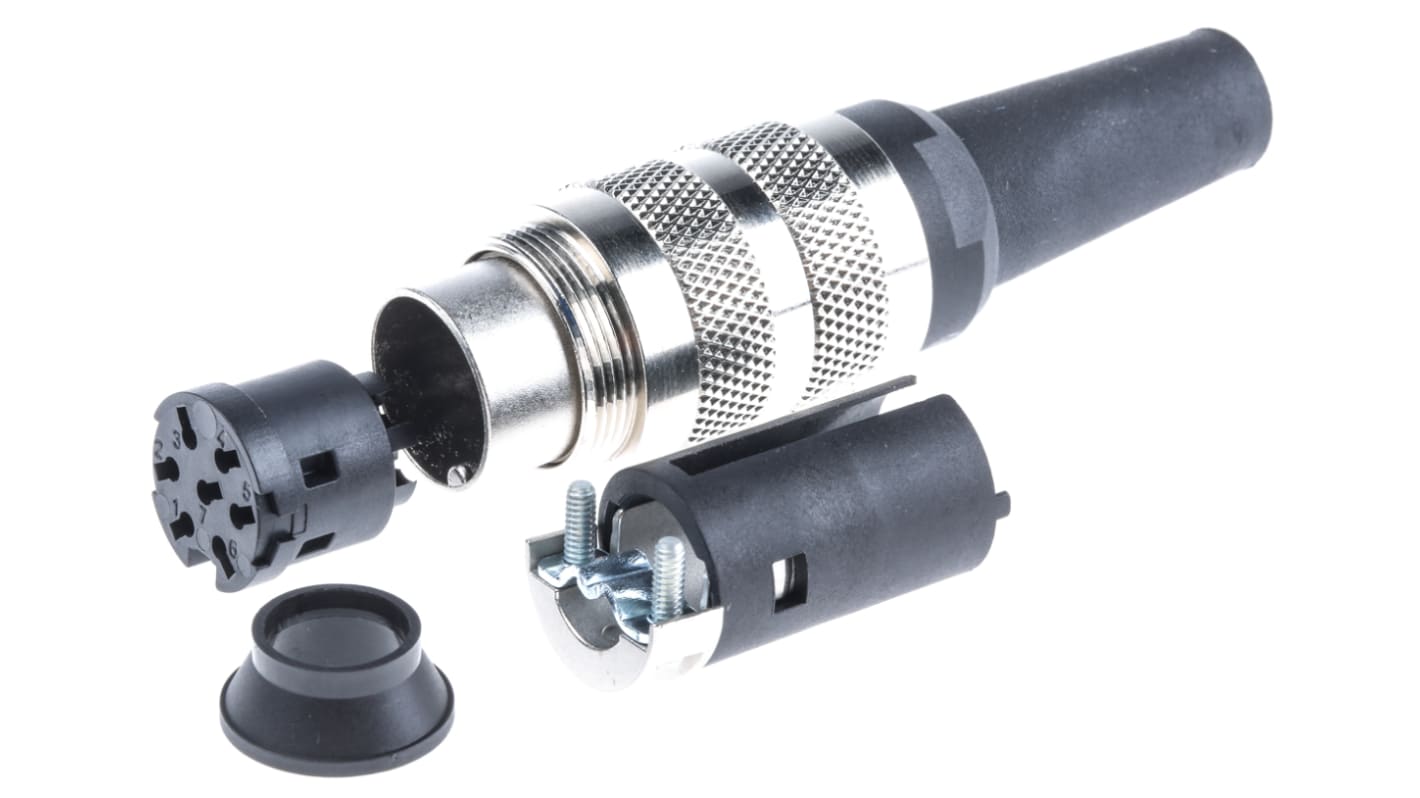

binder Circular Connector, 7 Contacts, Cable Mount, M16 Connector, Plug, Male, IP40, 581 Series
- RS Stock No.:
- 807-2826
- Mfr. Part No.:
- 99-2025-702-07
- Brand:
- binder
Bulk discount available
Subtotal (1 unit)*
£11.20
(exc. VAT)
£13.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 49 | £11.20 |
50 - 99 | £9.95 |
100 - 249 | £8.96 |
250 - 499 | £8.60 |
500 + | £8.29 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£6.86
(exc. VAT)
£8.23
(inc. VAT)
- RS Stock No.:
- 807-2826
- Mfr. Part No.:
- 99-2025-702-07
- Brand:
- binder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | binder | |
Number of Contacts | 7 | |
Mounting Type | Cable Mount | |
Connector Size | M16 | |
Plug/Socket | Plug | |
Contact Gender | Male | |
Termination Method | Crimp | |
IP Rating | IP40 | |
Current Rating | 5.0A | |
Series | 581 | |
Body Orientation | Straight | |
Voltage Rating | 125.0 V | |
Mating Type | Threaded | |
Housing Material | Brass | |
Contact Plating | Silver | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Copper | |
Select all | ||
---|---|---|
Brand binder | ||
Number of Contacts 7 | ||
Mounting Type Cable Mount | ||
Connector Size M16 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Crimp | ||
IP Rating IP40 | ||
Current Rating 5.0A | ||
Series 581 | ||
Body Orientation Straight | ||
Voltage Rating 125.0 V | ||
Mating Type Threaded | ||
Housing Material Brass | ||
Contact Plating Silver | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Copper | ||
- COO (Country of Origin):
- DE
581 Series M16 Cable Connectors, Bend Protection, Shielded
A comprehensive range of M16 DIN cable mount connectors, in solder and crimp variants, these M16 DIN connectors are suitable for a wide variety of applications, having an internal bend protection sleeve and with cable clamp or solder lug for easy shield or ground connection these miniature connectors also have good EMI shielding.
Operating temperature range -40 to +85° C
Cable outlet 6-8mm
IP40 rated
500 mating cycles
Cable outlet 6-8mm
IP40 rated
500 mating cycles
Binder 581 Series Connectors
