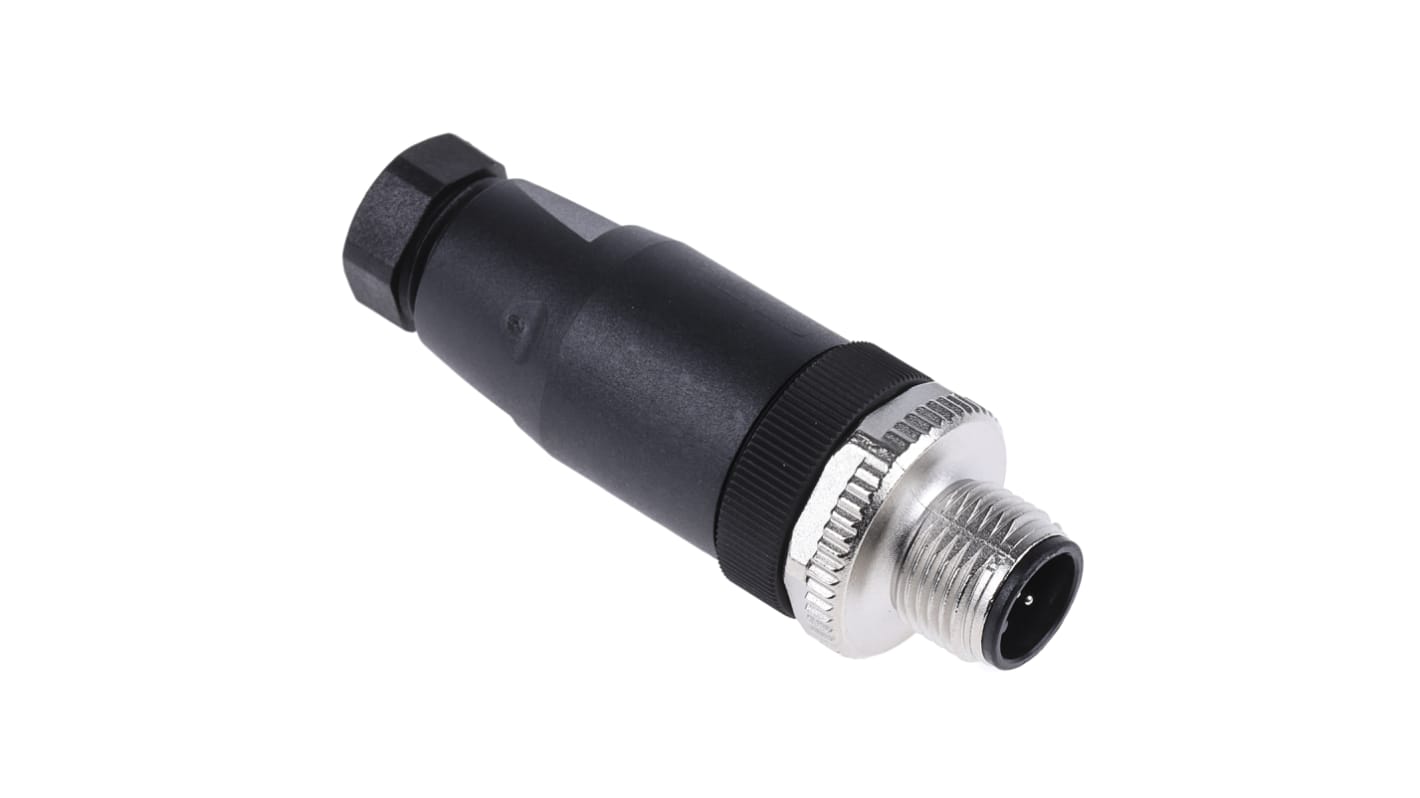

Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Female, IP67, SACC Series
- RS Stock No.:
- 801-6441
- Distrelec Article No.:
- 144-18-251
- Mfr. Part No.:
- 1663116
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£19.92
(exc. VAT)
£23.90
(inc. VAT)
FREE delivery for orders over £50.00
- 165 unit(s) ready to ship
- Plus 48 unit(s) ready to ship from another location
- Plus 999,999,834 unit(s) shipping from 21 November 2025
Units | Per unit |
---|---|
1 - 9 | £19.92 |
10 - 24 | £18.92 |
25 + | £17.93 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£10.68
(exc. VAT)
£12.82
(inc. VAT)
- RS Stock No.:
- 801-6441
- Distrelec Article No.:
- 144-18-251
- Mfr. Part No.:
- 1663116
- Brand:
- Phoenix Contact
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 5 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Plug | |
Contact Gender | Female | |
Termination Method | Screw | |
IP Rating | IP67 | |
Current Rating | 4.0A | |
Body Orientation | Straight | |
Series | SACC | |
Coding | A | |
Voltage Rating | 60.0 V | |
Mating Type | Screw On | |
Shell Size | 12 | |
Housing Material | Thermoplastic | |
Pole Format | 5P | |
Contact Plating | CuSnZn | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -40°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Body Orientation Straight | ||
Series SACC | ||
Coding A | ||
Voltage Rating 60.0 V | ||
Mating Type Screw On | ||
Shell Size 12 | ||
Housing Material Thermoplastic | ||
Pole Format 5P | ||
Contact Plating CuSnZn | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Brass | ||
Non Compliant
- COO (Country of Origin):
- DE
Phoenix Contact SACC-M12FS SPEEDCON Series of Connector
Features and Benefits
• Screw connection, widely compatible with different conductors. The wires can be connected with or without the use of ferrules.
• Zin die-cast, nickel-plated knurls material. Sealed with NBR.
• IEC 61076-2-101 regulated.
• Overvoltage category 2 degree of protection
Typical Applications
Phoenix Contact Circular Connector, M12, 5 Pin - SPEEDCON Series - SACC-M12MS-5CON-PG 7-M - 1663116
Thanks to a fast locking system, this sensor-actuator offers quick and easy assembly. It's a robust, durable item you can confidently use in harsh ambient conditions. You can expect fast and effortless connection and disconnection of signal, power and optical circuits without the need for coupling tools – simply plug and unplug the unit.
You can use this versatile circular connector for a wide selection of applications in residential, commercial and industrial environments. It provides secure and stable connections for factory and industrial automation processes and manufacturing lines.
Features & Benefits
• Operating temperature range of -40°C to +85°C for use in harsh environments
• Thermoplastic housing insulates internal heat for safe connection and disconnection
• RoHS (Restriction of Hazardous Substances) compliance verifies only minimal amounts of any harmful materials are present
