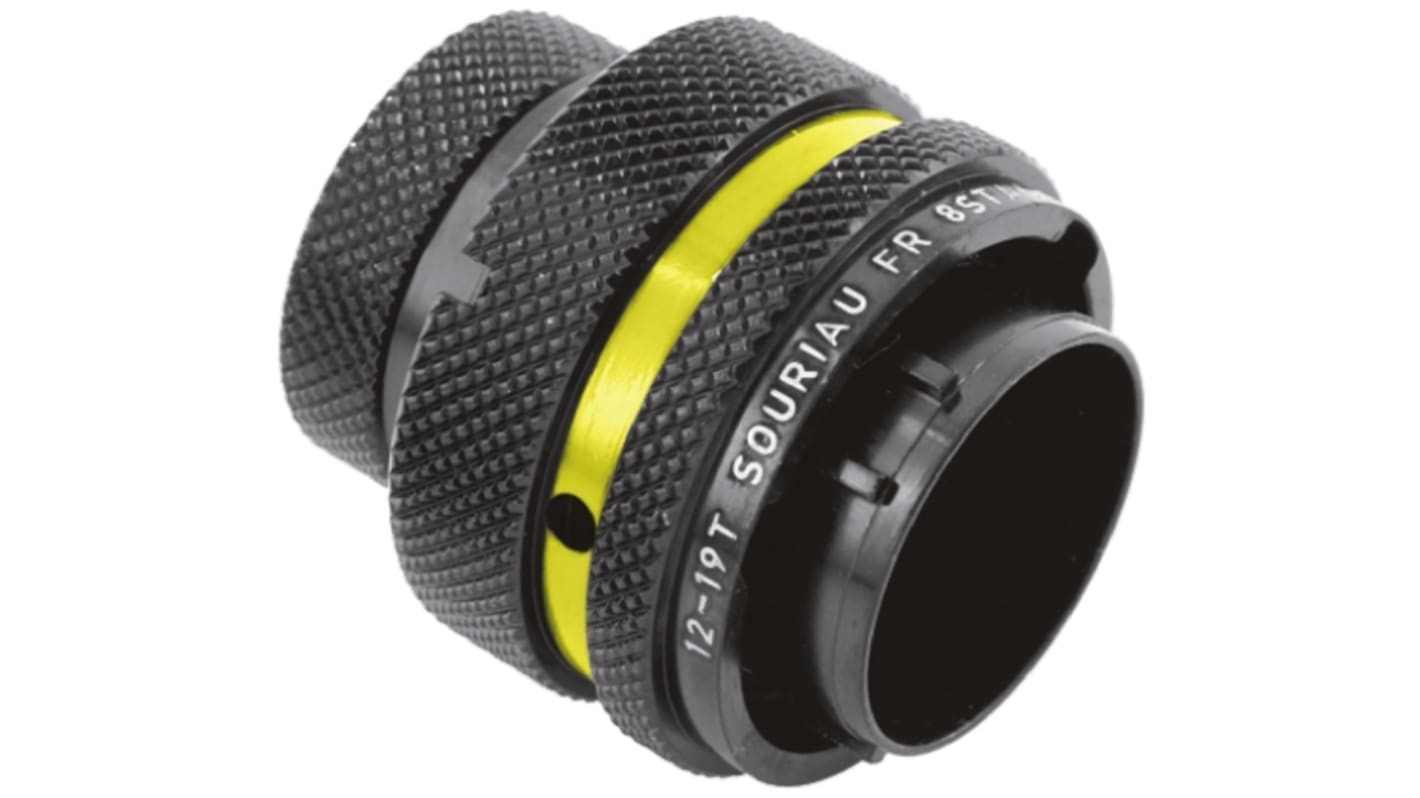

Souriau Sunbank by Eaton Circular Connector, 55 Contacts, Cable Mount, Plug, Male, IP67, 8STA Series

Bulk discount available

Subtotal (1 unit)*

£165.48

(exc. VAT)

£198.58

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£165.48
5 +£160.52

*price indicative

RS Stock No.:
760-1512
Mfr. Part No.:
8STA61635PA
Brand:
Souriau Sunbank by Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Souriau Sunbank by Eaton

Number of Contacts

55

Mounting Type

Cable Mount

Connector Size

Standard

Plug/Socket

Plug

Contact Gender

Male

Termination Method

Crimp, PC Tail

IP Rating

IP67

Current Rating

5.0A

Series

8STA

Body Orientation

Straight

Mating Type

Bayonet

Shell Size

16

Housing Material

Aluminium

Contact Plating

Gold

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+175°C

Contact Material

Copper

COO (Country of Origin):
FR

Souriau Circular Connector


The Souriau 8STA series 55-poles male circular connector has a plug-type connection. It features a colour-coded banding system for easy identification and mate in 1/3 of a turn with an audible click. It has 5A current rating per contact with a superb tolerance to vibration, impact and harsh environments. The connector shell is made from rugged aluminium over conductive black zinc plating with gold-plated copper alloy contacts. This connector is ideal for non-safety applications that require a robust circular connector such as military where size and weight are important design consideration.
Souriau 8STA Series Motorsport Connectors
The Souriau 8STA series range of connectors was developed primarily for the motorsport market, durable, lightweight plug and receptacle connectors with a superb tolerance to vibration, impact and harsh environments. Souriau 8STA motorsport connectors are small and lightweight circular connectors suitable for Formula 1, Moto GP, WRC, Nascar, World Super Bikes, kart racing, boat racing and many other motorsports and also many other applications. Souriau 8STA series circular motorsport connectors feature a colour-coded banding system for easy identification and mate in 1/3 of a turn with an audible click.

Features and Benefits


Crimp termination
Straight body orientation
6 colours-coded keyways orientations
Boot termination
Yellow orientation
Contact resistance is 16Mohm
Durability of 500 mating cycles
EMI shielding
High seismic and vibration resistance
Insulation resistance is greater than 5000Mohm
Operation temperature ranges between -55°C and 175°C
Scoop-proof contacts
Shell size is 02mm
Ultra compact and lightweight design
Wire size ranges between 24AWG and 30AWG

Applications


Ground vehicles and Infantry interconnections
Military applications
Motorsports

Certifications


IP67 rated
