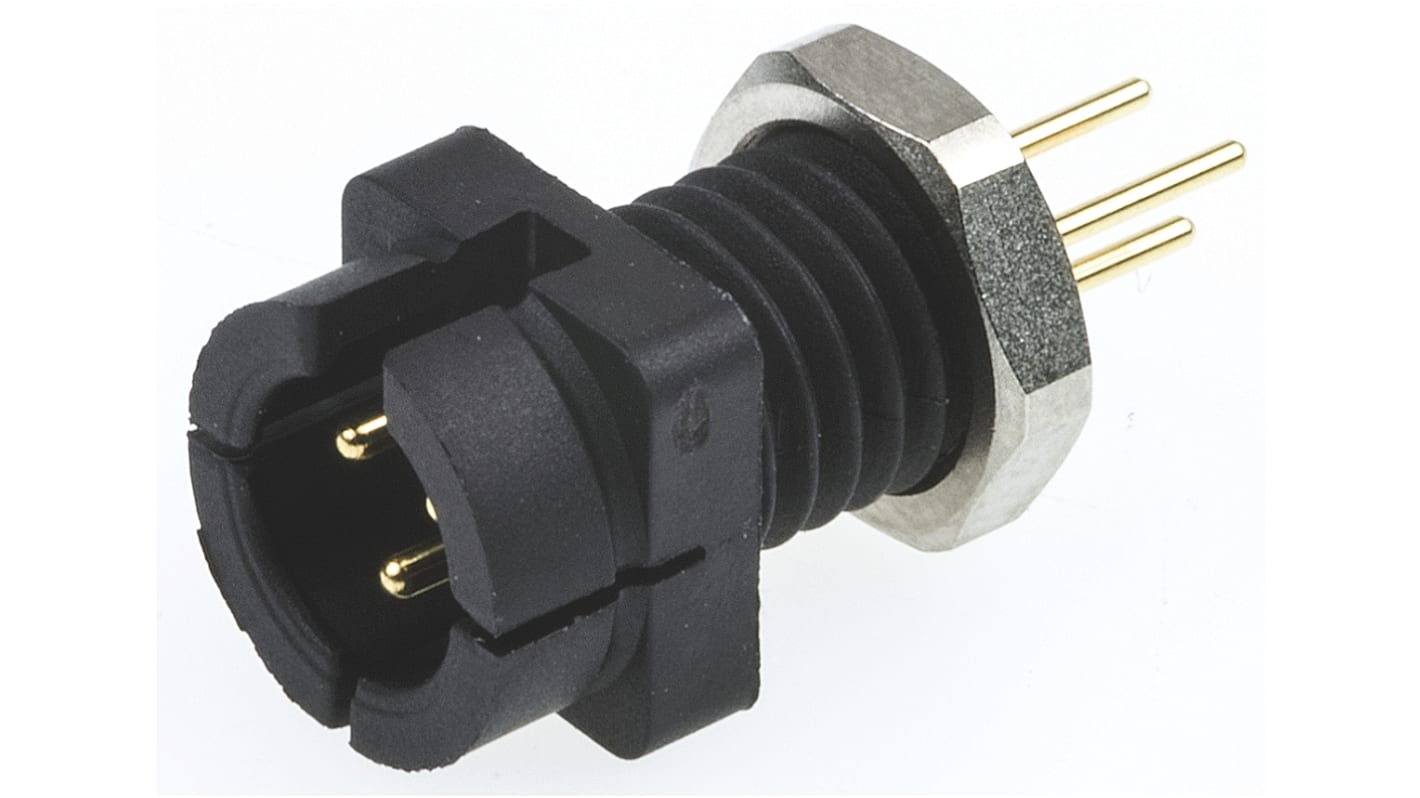

binder Circular Connector, 3 Contacts, Panel Mount, Subminiature Connector, Socket, Male, IP40, 709 Series
- RS Stock No.:
- 734-5177
- Mfr. Part No.:
- 09-9749-20-03
- Brand:
- binder
Bulk discount available
Subtotal (1 unit)*
£4.38
(exc. VAT)
£5.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 60 unit(s) shipping from 13 October 2025
- Plus 30 unit(s) shipping from 13 October 2025
- Plus 83 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 49 | £4.38 |
50 - 99 | £4.11 |
100 - 249 | £3.84 |
250 - 499 | £3.55 |
500 + | £3.25 |
*price indicative
- RS Stock No.:
- 734-5177
- Mfr. Part No.:
- 09-9749-20-03
- Brand:
- binder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | binder | |
Number of Contacts | 3 | |
Mounting Type | Panel Mount | |
Connector Size | Subminiature | |
Plug/Socket | Socket | |
Contact Gender | Male | |
Termination Method | Solder | |
IP Rating | IP40 | |
Current Rating | 3.0A | |
Series | 709 | |
Body Orientation | Straight | |
Voltage Rating | 60.0 V | |
Shell Size | 8 | |
Mating Type | Snap-In | |
Housing Material | Polymer | |
Contact Plating | Gold | |
Maximum Operating Temperature | +70°C | |
Contact Material | Brass | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand binder | ||
Number of Contacts 3 | ||
Mounting Type Panel Mount | ||
Connector Size Subminiature | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method Solder | ||
IP Rating IP40 | ||
Current Rating 3.0A | ||
Series 709 | ||
Body Orientation Straight | ||
Voltage Rating 60.0 V | ||
Shell Size 8 | ||
Mating Type Snap-In | ||
Housing Material Polymer | ||
Contact Plating Gold | ||
Maximum Operating Temperature +70°C | ||
Contact Material Brass | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- DE
Binder 719/709 Series Subminiature Connectors, Snap-in
Binder Series 719/709 panel mount connectors are protected to IP40 when mated. The Series 719/709 connectors are compact in size and suitable for connector applications in medical electronics, portable instrumentation, power supplies and consumer electronics amongst many others.
Plastic connector shells
Degree of protection IP 40
Gold plated contacts
Easy to assemble
Degree of protection IP 40
Gold plated contacts
Easy to assemble
Binder 719/709 Series Connectors
