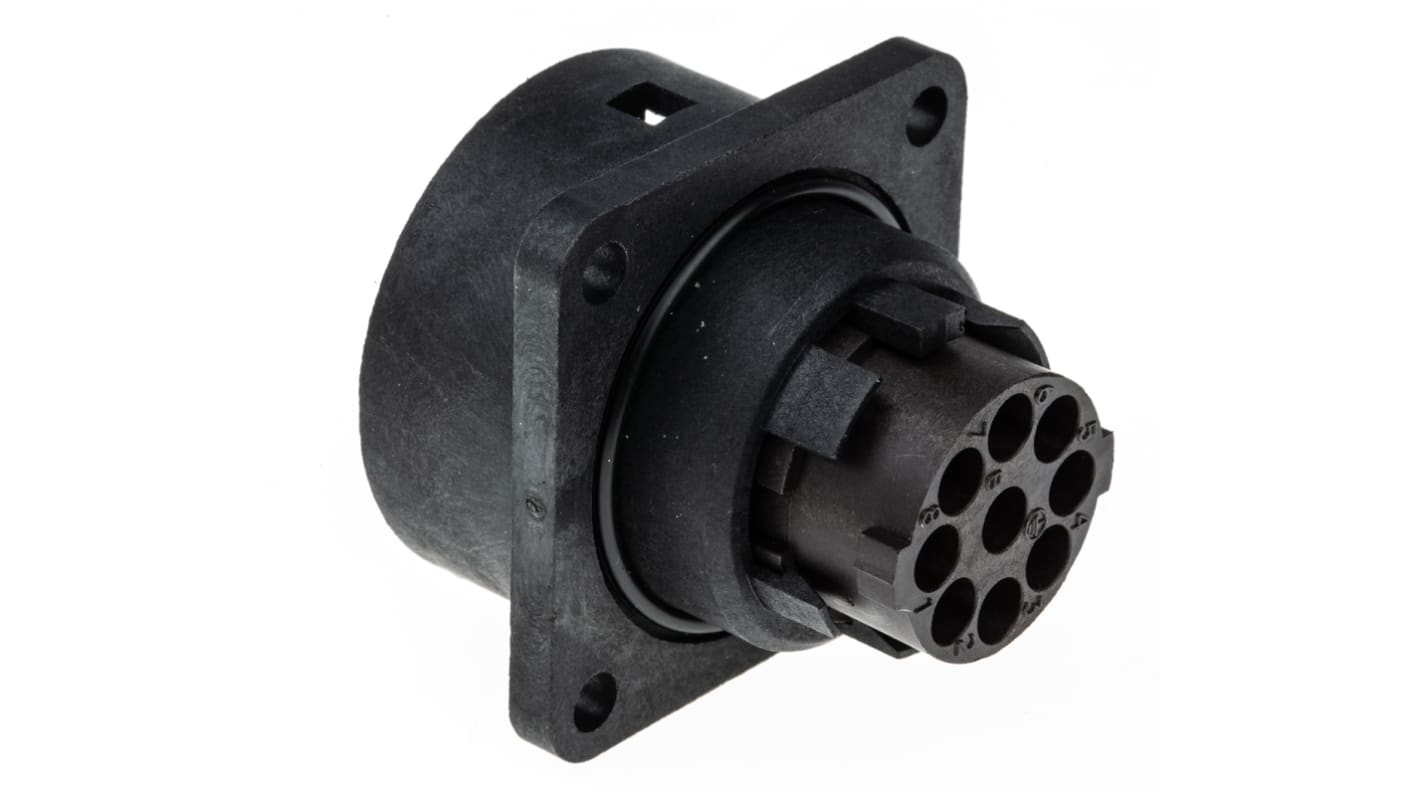

Amphenol Industrial Circular Connector, 8 + PE Contacts, Panel Mount, Socket, Female, IP65, Ecomate C16 Series

View this category
Bulk discount available

Subtotal (1 unit)*

£16.87

(exc. VAT)

£20.24

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 348 unit(s) ready to ship
  • Plus 80 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 14£16.87
15 - 49£15.99
50 - 99£15.17
100 +£14.39

*price indicative

RS Stock No.:
329-9231
Distrelec Article No.:
110-66-370
Mfr. Part No.:
C016-10G008-0001
Brand:
Amphenol Industrial
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol Industrial

Number of Contacts

8 + PE

Mounting Type

Panel Mount

Connector Size

Standard

Plug/Socket

Socket

Contact Gender

Female

Termination Method

Crimp

IP Rating

IP65

Current Rating

12.0A

Series

Ecomate C16

Body Orientation

Straight

Voltage Rating

400.0 V

Housing Material

Polymer

Pole Format

8 + PE

Contact Plating

Gold, Silver

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
CZ

Panel Plugs and Sockets - C 16-3 Circular Connectors


From Amphenol, this C 16-3 Series panel mount circular connector is versatile and reliable, mating easily with corresponding C16-3 Series connectors.

Note

Shell size 14+PE will accommodate 2.5mm² contacts, but they are not currently included as part of the Amphenol C16-3 offer.

Approvals

VDE (3964); UL (E63093); CSA (49932-9)

Approvals

VDE (3964); UL (E63093); CSA (49932-9)


Amphenol C 16-3 Circular Connectors


All planforms require crimp contacts with the exception of the 5 +PE configuration which is supplied complete with screw termination contacts.
Bayonet locking, robust, lightweight plastic connectors suited for machinery, light and sound applications and where power and control are required through one connection. Plug shells accept pin contacts, socket shells accept socket contacts.


Cable and chassis mount inserts may be keyed to prevent incorrect connection between types
Can facilitate cable to cable and cable to chassis connection
All have a pre-mating earth design
Supplied with strain relief and PG cable gland for conduit fixing
IP65 to IEC529

Note

Ratchet Crimp Tool see 241-2786, Insert/Extraction Tool 1 see 240-8642 , Insert/Extraction Tool 2 see 240-8658 and Insert/Extraction Tool 3 see 240-8642.
