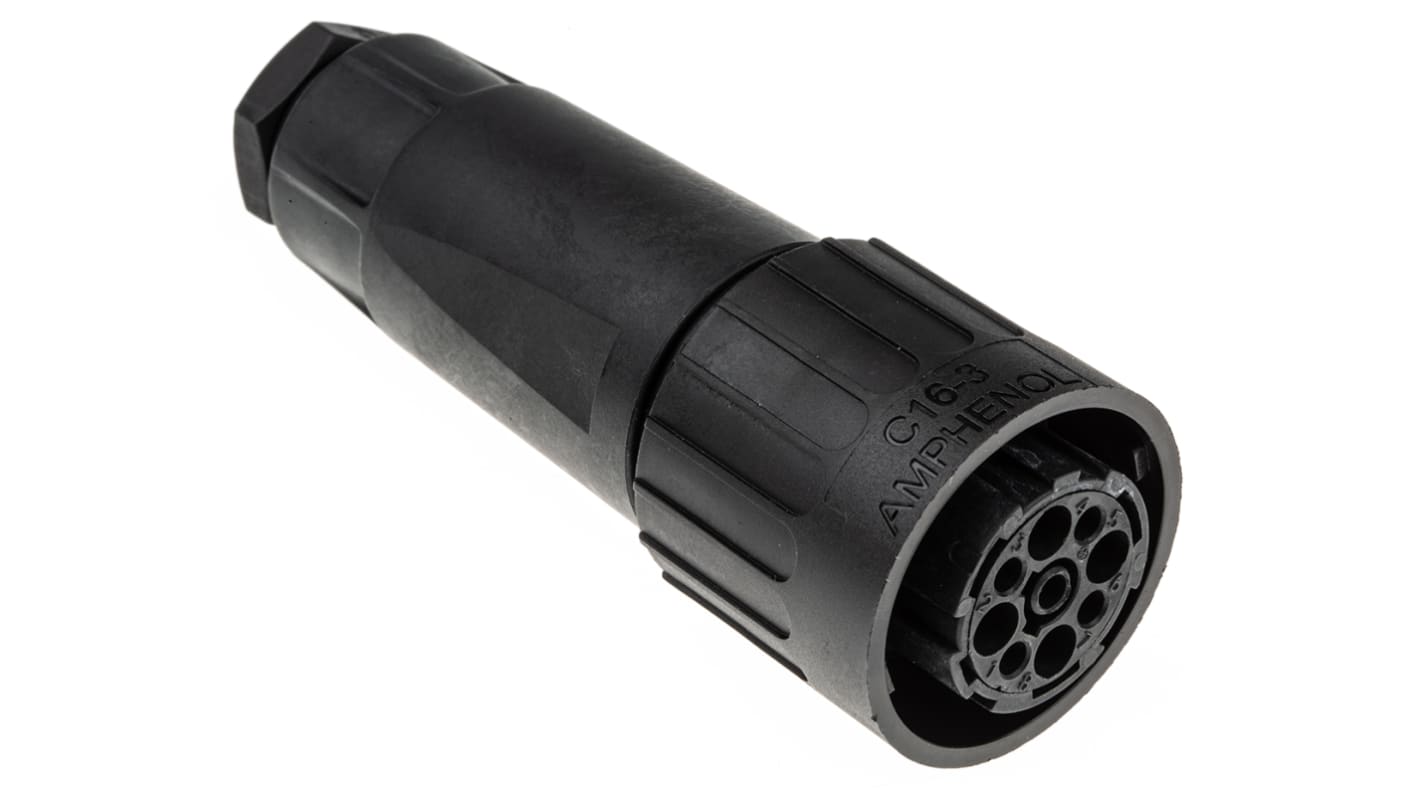

Amphenol Industrial Circular Connector, 8 + PE Contacts, Cable Mount, Socket, Female, IP65, Ecomate C16 Series
- RS Stock No.:
- 329-9152
- Mfr. Part No.:
- C016-10E008-0021
- Brand:
- Amphenol Industrial
Save 14% when you buy 100 units
Subtotal (1 unit)*
£28.63
(exc. VAT)
£34.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
- Plus 999,999,939 unit(s) shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £28.63 |
10 - 49 | £27.23 |
50 - 99 | £25.86 |
100 + | £24.54 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£16.87
(exc. VAT)
£20.24
(inc. VAT)
- RS Stock No.:
- 329-9152
- Mfr. Part No.:
- C016-10E008-0021
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol Industrial | |
Number of Contacts | 8 + PE | |
Mounting Type | Cable Mount | |
Connector Size | Standard | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Crimp | |
IP Rating | IP65 | |
Current Rating | 12.0A | |
Body Orientation | Straight | |
Series | Ecomate C16 | |
Voltage Rating | 400.0 V | |
Housing Material | Polymer | |
Pole Format | 8 + PE | |
Strain Relief | Yes | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +125°C | |
Select all | ||
---|---|---|
Brand Amphenol Industrial | ||
Number of Contacts 8 + PE | ||
Mounting Type Cable Mount | ||
Connector Size Standard | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Crimp | ||
IP Rating IP65 | ||
Current Rating 12.0A | ||
Body Orientation Straight | ||
Series Ecomate C16 | ||
Voltage Rating 400.0 V | ||
Housing Material Polymer | ||
Pole Format 8 + PE | ||
Strain Relief Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- CZ
Cable Plugs and Sockets - C 16-3 Circular Connectors
From Amphenol, this C 16-3 Series cable mount circular connector is versatile and reliable, mating easily with corresponding C16-3 Series receptacles.
Note
Shell size 14+PE will accommodate 2.5mm² contacts, but they are not currently included as part of the Amphenol C16-3 offer.
Approvals
VDE (3964); UL (E63093); CSA (49932-9)
Approvals
VDE (3964); UL (E63093); CSA (49932-9)
Amphenol C 16-3 Circular Connectors
All planforms require crimp contacts with the exception of the 5 +PE configuration which is supplied complete with screw termination contacts.
Bayonet locking, robust, lightweight plastic connectors suited for machinery, light and sound applications and where power and control are required through one connection. Plug shells accept pin contacts, socket shells accept socket contacts.
Bayonet locking, robust, lightweight plastic connectors suited for machinery, light and sound applications and where power and control are required through one connection. Plug shells accept pin contacts, socket shells accept socket contacts.
Cable and chassis mount inserts may be keyed to prevent incorrect connection between types
Can facilitate cable to cable and cable to chassis connection
All have a pre-mating earth design
Supplied with strain relief and PG cable gland for conduit fixing
IP65 to IEC529
Can facilitate cable to cable and cable to chassis connection
All have a pre-mating earth design
Supplied with strain relief and PG cable gland for conduit fixing
IP65 to IEC529
Note
