Phoenix Contact Circular Connector, 4 Contacts, Front, M16 Connector, Socket, Female, IP65, IP67, SACC Series
- RS Stock No.:
- 286-1577
- Distrelec Article No.:
- 301-31-010
- Mfr. Part No.:
- 1027686
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£8.69
(exc. VAT)
£10.43
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.69 |
*price indicative
- RS Stock No.:
- 286-1577
- Distrelec Article No.:
- 301-31-010
- Mfr. Part No.:
- 1027686
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | Circular Connector | |
| Mount Type | Front | |
| Current | 4A | |
| Connector Size | M16 | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| IP Rating | IP65, IP67 | |
| Series | SACC | |
| Voltage | 250V | |
| Coding | D | |
| Mating Type | Push Pull | |
| Shell Size | M12 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | cUL, cULus, IEC 61076-2-101, RoHS, UL | |
| Contact Material | Copper Zinc Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type Circular Connector | ||
Mount Type Front | ||
Current 4A | ||
Connector Size M16 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
IP Rating IP65, IP67 | ||
Series SACC | ||
Voltage 250V | ||
Coding D | ||
Mating Type Push Pull | ||
Shell Size M12 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals cUL, cULus, IEC 61076-2-101, RoHS, UL | ||
Contact Material Copper Zinc Alloy | ||
- COO (Country of Origin):
- DE

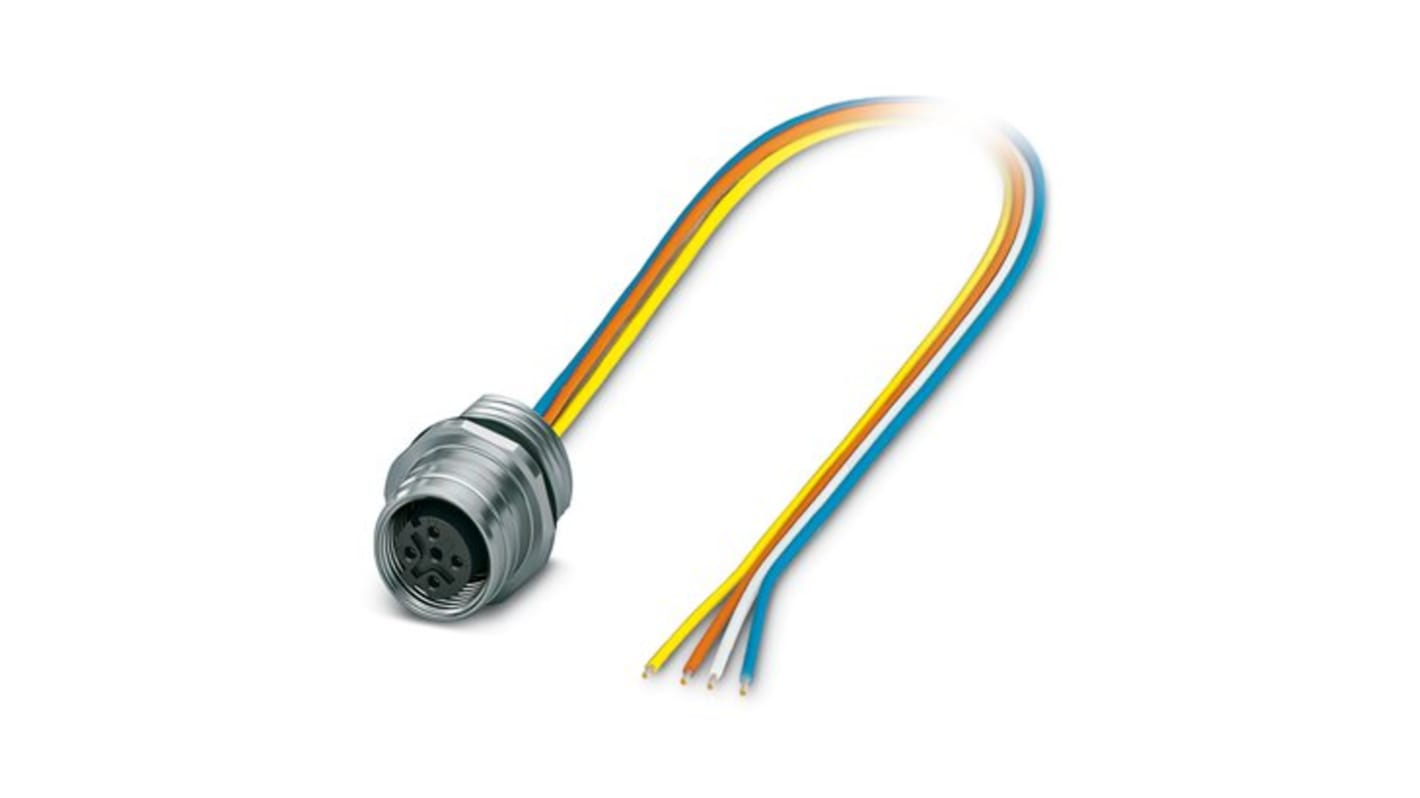

The Phoenix Contact device connector is designed for front mounting with specifications for PROFINET CAT5 (IEC 11801:2002). It features 4 positions and a socket connection with a straight M12-Push-Pull coding. The connector is mounted on a free cable end with a front mounting size of M16 x 1.5. The cable consists of individual wires with a length of 0.5 m and a wire gauge of 0.34 mm². The cable type is TPE litz wire.
Reliable shield connection even under extreme mechanical strain
Compatible with connectors with screw or push-in connection
