ITT Cannon Circular Connector, 32 Contacts, Panel Mount, Socket, Male, IP67, Trident Neptune Series

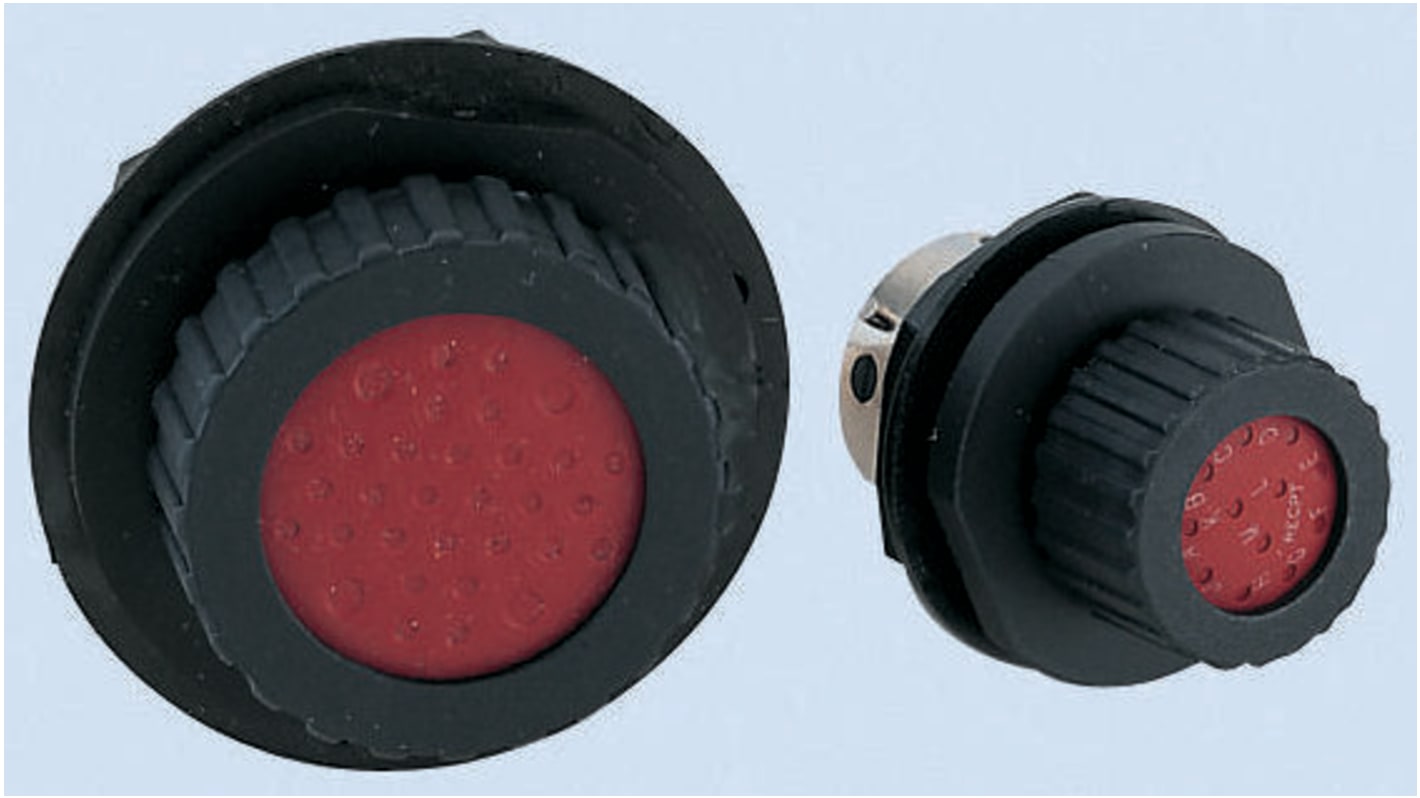

Image representative of range

View this category
Bulk discount available

Subtotal (1 unit)*

£44.01

(exc. VAT)

£52.81

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 43 unit(s) shipping from 06 October 2025
  • Plus 7 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 19£44.01
20 - 39£39.61
40 +£37.67

*price indicative

RS Stock No.:
273-5629
Mfr. Part No.:
TN7S24-0428P1L / 192900-0074
Brand:
ITT Cannon
Find similar products by selecting one or more attributes.
Select all

Brand

ITT Cannon

Number of Contacts

32

Mounting Type

Panel Mount

Connector Size

Standard

Plug/Socket

Socket

Contact Gender

Male

Termination Method

Crimp

IP Rating

IP67

Body Orientation

Straight

Series

Trident Neptune

Housing Material

Polymer

Contact Plating

Nickel

Maximum Operating Temperature

+105°C

Contact Material

Copper

Minimum Operating Temperature

-55°C

COO (Country of Origin):
HU

Panel Plug and Socket Shells, Jam Nut Fixing


Mounted from the rear of a panel via a single "D" hole. May also be used for in-line connections. Includes "O" ring interface seals, rubber cable seals, seal securing nuts and plastic jam nut.Can be used for in-line connections.


Neptune


Based on Trident Ringlok series, the Neptune range combines power and signal contacts. Widely used in automotive, marine and process control industries, they feature a strong bayonet coupling system with standard and reversed pin/socket combinations. A wide selection of backshell accessories, rear housings and dust caps are available.,To maintain IP67 rating the rear of the connectors have a rubber seal which is pierced upon contact insertion. The seal is held in place by a screw ring (as supplied) which may be replaced with the appropriate size backshell. For IP67 rating to be maintained, wire insulation diameters should be within the following diameters: Signal wires: 1.7 to 2.7mm, Power wires : 2.7 to 4.0mm.,Number of contacts shown as power/signal eg 2//13.
