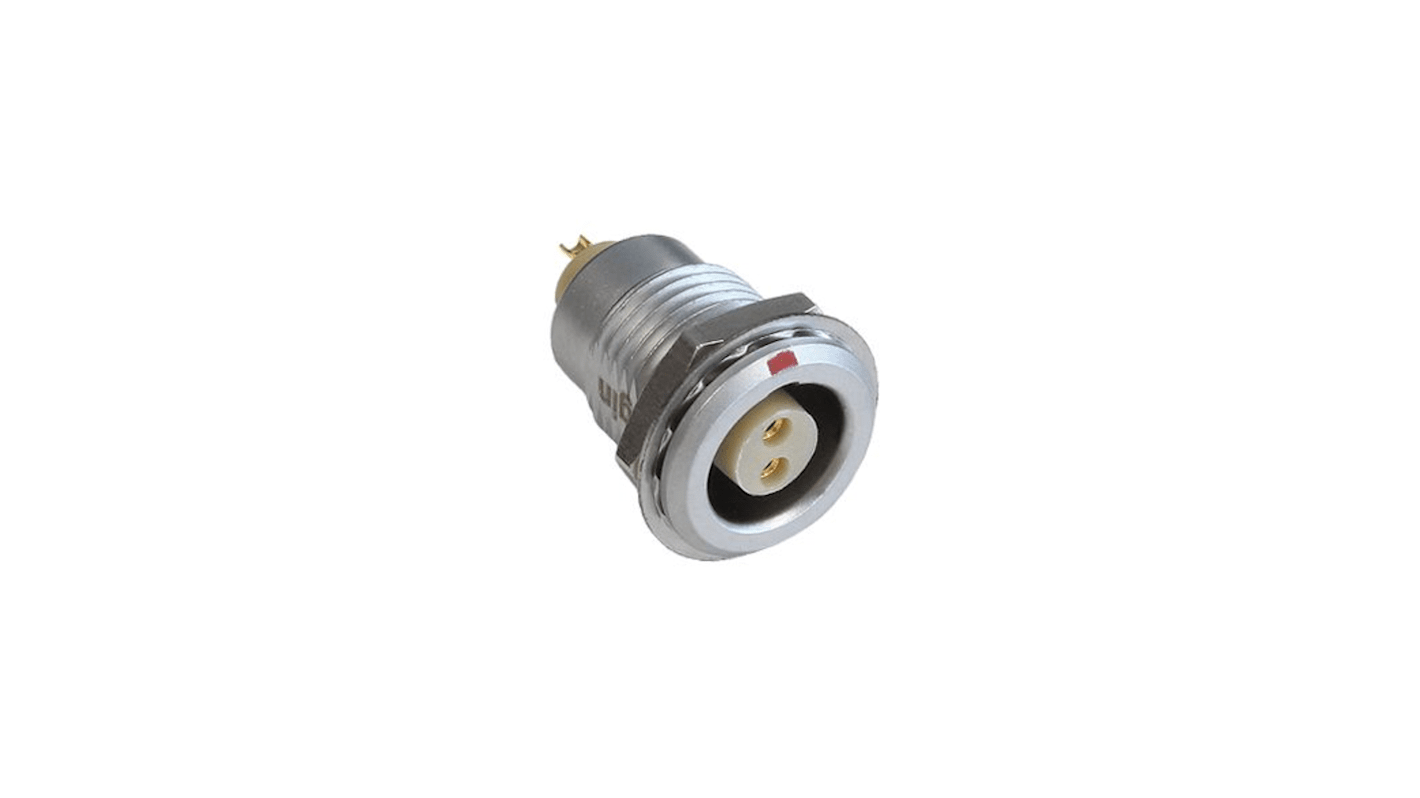

Bulgin Circular Connector, 2 Contacts, Push Pull, Standard Connector, Socket, Female, IP50, X Series
- RS Stock No.:
- 251-7543
- Mfr. Part No.:
- PPCEGG1B02CLL
- Brand:
- Bulgin
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 25 units)*
£425.25
(exc. VAT)
£510.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 75 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 25 - 25 | £17.01 | £425.25 |
| 50 - 75 | £16.21 | £405.25 |
| 100 - 225 | £15.343 | £383.58 |
| 250 + | £14.696 | £367.40 |
*price indicative
- RS Stock No.:
- 251-7543
- Mfr. Part No.:
- PPCEGG1B02CLL
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Number of Contacts | 2 | |
| Product Type | Circular Connector | |
| Mount Type | Push Pull | |
| Connector Size | Standard | |
| Current | 35A | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| IP Rating | IP50 | |
| Orientation | Straight | |
| Series | X | |
| Voltage | 4250V | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -50°C | |
| Mating Type | Push Pull | |
| Maximum Operating Temperature | 250°C | |
| Housing Material | Brass Chrome Plated, Nickel Plated | |
| Standards/Approvals | RoHS | |
| Contact Plating | Gold Plated | |
| Contact Material | Phosphor Bronze Gold Plated | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Number of Contacts 2 | ||
Product Type Circular Connector | ||
Mount Type Push Pull | ||
Connector Size Standard | ||
Current 35A | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
IP Rating IP50 | ||
Orientation Straight | ||
Series X | ||
Voltage 4250V | ||
Termination Type Solder | ||
Minimum Operating Temperature -50°C | ||
Mating Type Push Pull | ||
Maximum Operating Temperature 250°C | ||
Housing Material Brass Chrome Plated, Nickel Plated | ||
Standards/Approvals RoHS | ||
Contact Plating Gold Plated | ||
Contact Material Phosphor Bronze Gold Plated | ||
- COO (Country of Origin):
- CN
The Bulgin X series push-pull connectors are very secure, push pull latching system with high-density panel spacing, 360-degree EMI shielding and quick mating and unmating. it is designed for indoor or vacuum-tight applications, making it an ideal choice for general-purpose high-quality interconnects, medical, test & measurement, research, communications, audio-video, military, aerospace, industrial control, information systems, nuclear, surveillance.
Secure Push-Pull self-latching system
Multiple key options to avoid mismating
Solder contacts
High packing density for space savings
IP50 rated
