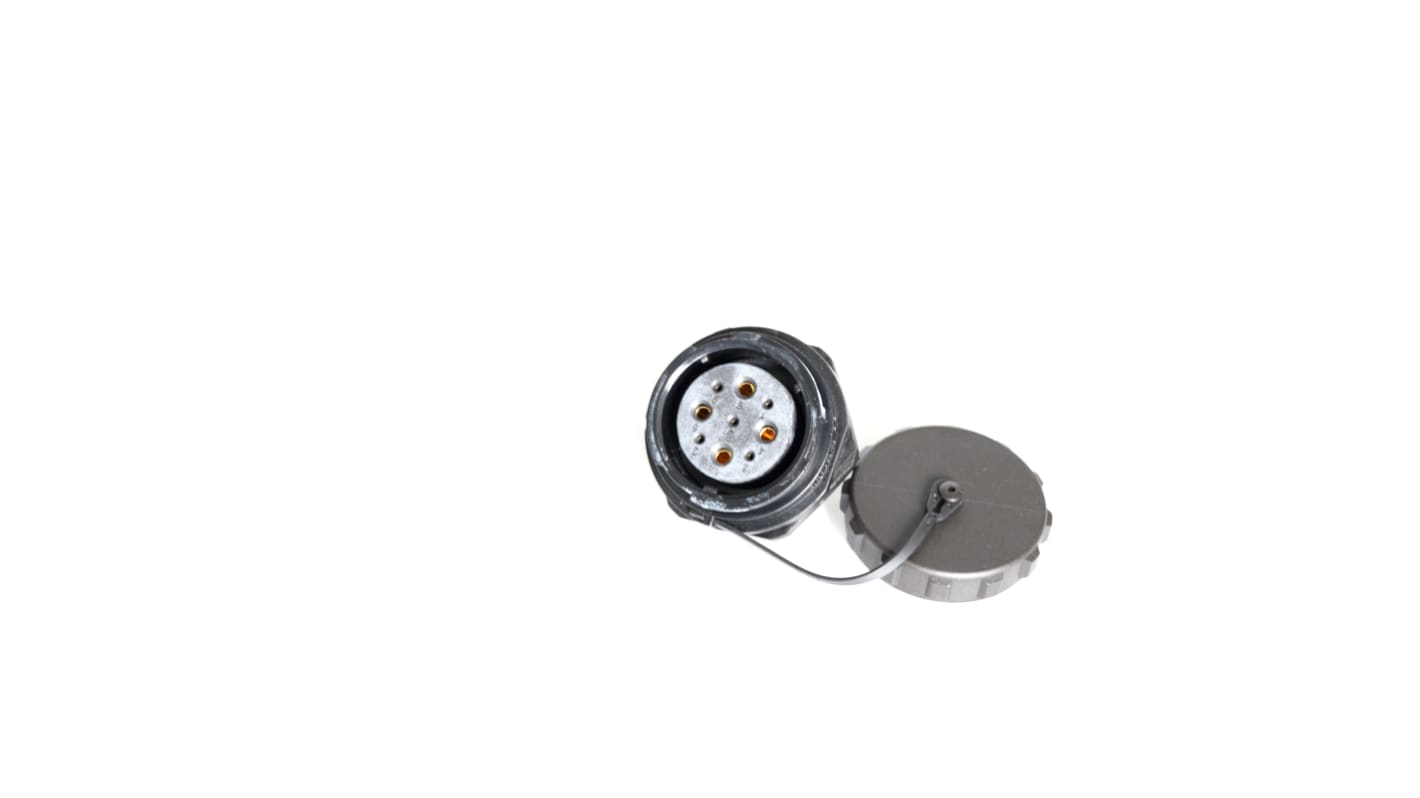

RS PRO Circular Connector, 9 Contacts, Front Mount, Socket, Female, IP67

View this category
Save 8% when you buy 25 units

Subtotal (1 unit)*

£15.57

(exc. VAT)

£18.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£15.57
5 - 9£15.25
10 - 24£14.94
25 +£14.19

*price indicative

RS Stock No.:
250-6246
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Contacts

9

Mounting Type

Front Mount

Connector Size

Standard

Plug/Socket

Socket

Contact Gender

Female

Termination Method

Solder

IP Rating

IP67

Current Rating

25 + 5A

Series

SY29

Body Orientation

Straight

Voltage Rating

500V

Mating Type

Bayonet

Housing Material

Nylon 66, PC

Pole Format

4 + 5P

Strain Relief

No

Contact Plating

Gold

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Outer Diameter

13→16mm

COO (Country of Origin):
CN

RS PRO 4 + 5 Pole 25A Panel Mount Connector (SY29)


RS PRO SY29 series of connectors offer a reliable way to panel mount wire connections in industrial and automated applications.

Complete with a quick secure bayonet fitting it is simple and quick to connect to and features numbered receptacles reducing soldering errors and saving time and rework.

Constructed from a fire-resistant Polycarbonate and Nylon shell protecting Gold Plated Brass contacts and an Ingress Protection rating of IP67 the RS PRO industrial connector is designed for use in harsh and heavy-duty environments.

Features and benefits


  • IP67 rating

  • Panel mount

  • Bayonet coupling

  • Maximum wire size of <4mm (11AWG)

  • 29.2 x 26.2mm Panel Cut Out

  • 41mm Diameter front

Suitable Applications


  • Factory and Industrial Automation

  • Manufacturing

  • Process Control

  • Industrial networking
