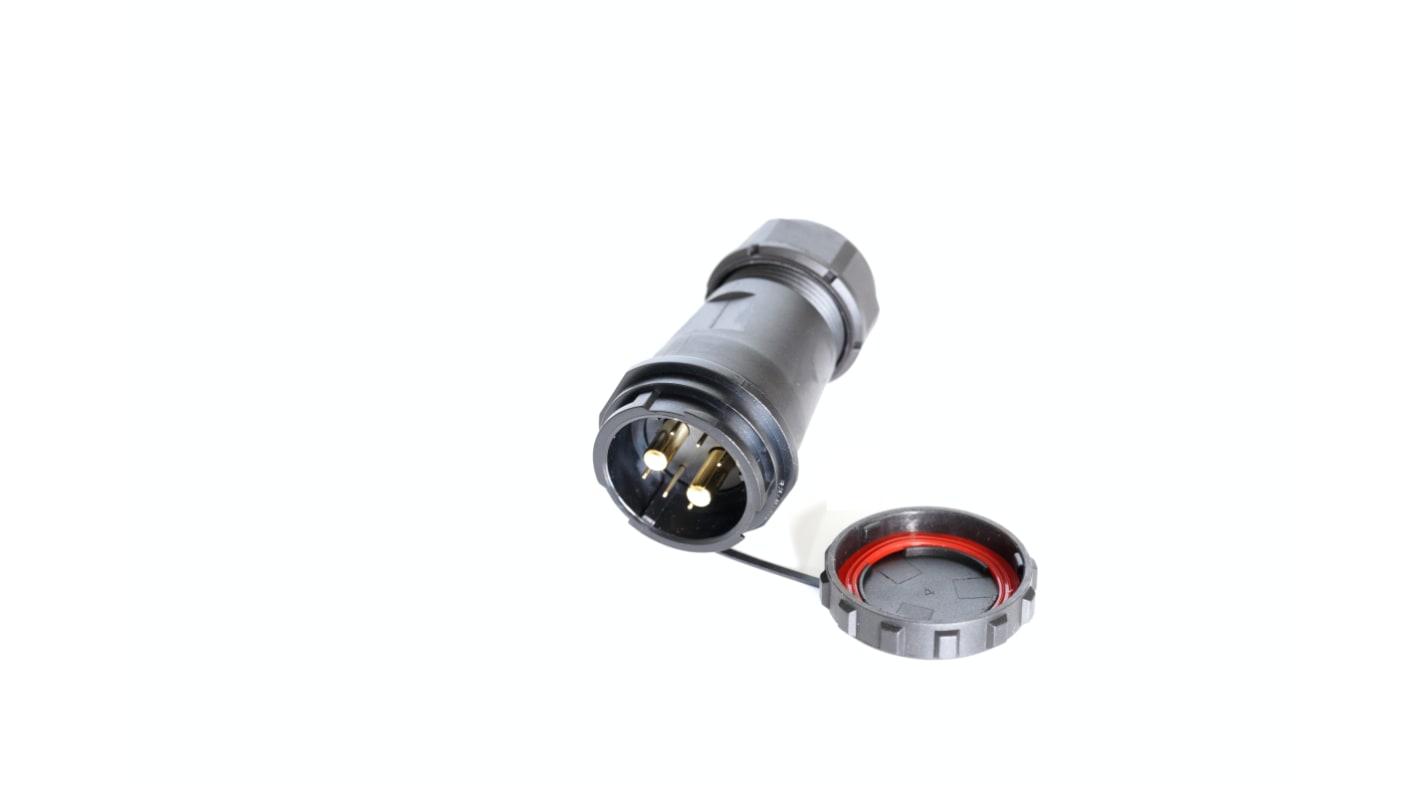

RS PRO Circular Connector, 9 Contacts, Cable Mount, Plug and Socket, Male and Female Contacts, IP67

View this category
Save 8% when you buy 25 units

Subtotal (1 pair)*

£33.07

(exc. VAT)

£39.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 17 unit(s) ready to ship
  • Plus 999,999,982 unit(s) shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pair(s)
Per Pair
1 - 4£33.07
5 - 9£32.41
10 - 24£31.75
25 +£30.16

*price indicative

RS Stock No.:
250-6164
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Contacts

9

Mounting Type

Cable Mount

Connector Size

Standard

Plug/Socket

Plug, Socket

Contact Gender

Female, Male

Termination Method

Solder

IP Rating

IP67

Current Rating

25 + 5A

Body Orientation

Straight

Series

SY29

Voltage Rating

500V

Mating Type

Bayonet

Housing Material

Nylon 66, PC

Pole Format

4 + 5P

Strain Relief

No

Contact Plating

Gold

Maximum Operating Temperature

85°C

Outer Diameter

13→16mm

Minimum Operating Temperature

-40°C

COO (Country of Origin):
CN

RS PRO 4 + 5 Pole 25A Cable Mount Circular Connector Set (SY29)


The RS PRO cable mount circular connector set offers a reliable way to create secure wire connections in industrial and automated applications.

Featuring separate male and female circular connectors with a quick connecting bayonet fitting the RS PRO circular connector set is easy to install and includes numbered receptacles reducing soldering errors and saving time and rework.

Constructed from a fire-resistant Polycarbonate and Nylon shell protecting Gold Plated Brass contacts and an Ingress Protection rating of IP67 the RS PRO industrial connector is designed for use in harsh and heavy-duty environments.

Kit Includes


1 x Male circular connector: 70.6mm length

1 x Female circular connector: 71.2mm length

Features and benefits


  • IP67 rating

  • Cable mount

  • Bayonet coupling

  • Maximum wire size of <4mm (11AWG)

  • Cable outer diameter range of 13 to 16mm

  • Temperature range of -40 to 85°C

Suitable Applications


  • Factory and Industrial Automation

  • Manufacturing

  • Process Control

  • Industrial networking

Why RS PRO?


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
