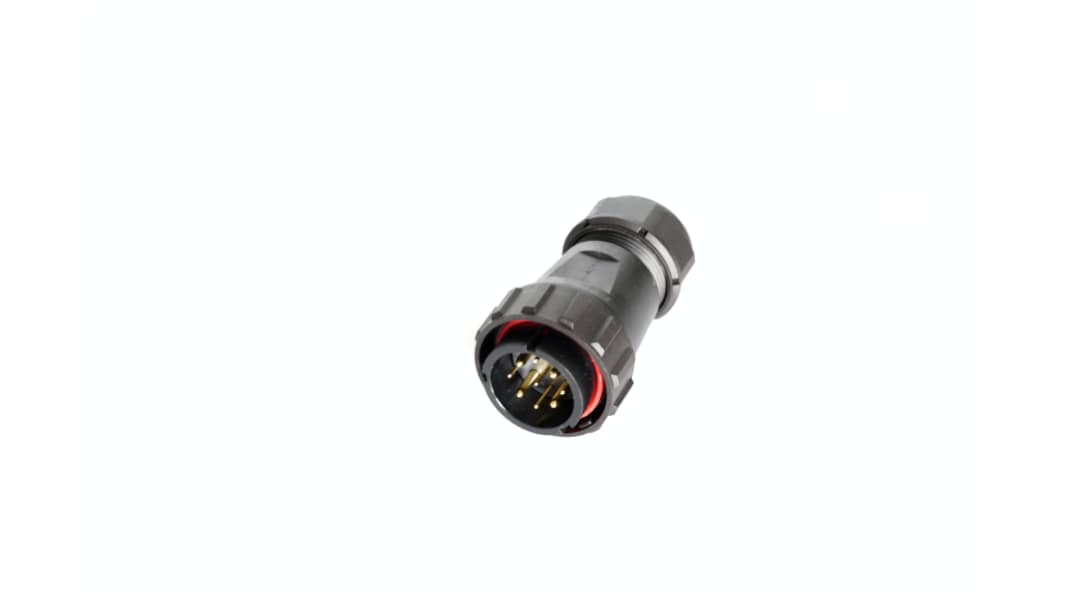

RS PRO Circular Connector, 20 Contacts, Cable Mount, Plug and Socket, Male and Female Contacts, IP67
- RS Stock No.:
- 250-6143
- Brand:
- RS PRO
Available to back order for despatch when stock is available
Price 1 Pair
£32.93
(exc. VAT)
£39.52
(inc. VAT)
Pair(s) | Per Pair |
---|---|
1 - 4 | £32.93 |
5 - 9 | £32.26 |
10 - 24 | £31.61 |
25 + | £30.03 |
- RS Stock No.:
- 250-6143
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS PRO 20 Pole 5A Cable Mount Circular Connector Set (SY29)
The RS PRO cable mount circular connector set offers a reliable way to create secure wire connections in industrial and automated applications.
Featuring separate male and female circular connectors with a quick connecting bayonet fitting the RS PRO circular connector set is easy to install and includes numbered receptacles reducing soldering errors and saving time and rework.
Constructed from a fire-resistant Polycarbonate and Nylon shell protecting Gold Plated Brass contacts and an Ingress Protection rating of IP67 the RS PRO industrial connector is designed for use in harsh and heavy-duty environments.
Kit Includes
1 x Male circular connector: 70.6mm length
1 x Female circular connector: 71.2mm length
Features and benefits
- IP67 rating
- Cable mount
- Bayonet coupling
- Maximum wire size of <0.75mm (18AWG)
- Cable outer diameter range of 13 to 16mm
- Temperature range of -40 to 85°C
Suitable Applications
- Factory and Industrial Automation
- Manufacturing
- Process Control
- Industrial networking
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 20 |
Mounting Type | Cable Mount |
Connector Size | Standard |
Plug/Socket | Plug, Socket |
Contact Gender | Female, Male |
Termination Method | Solder |
IP Rating | IP67 |
Current Rating | 5.0A |
Series | SY29 |
Body Orientation | Straight |
Voltage Rating | 400.0 V |
Mating Type | Bayonet |
Pole Format | 20P |
