RS PRO Circular Connector, 5 Contacts, Panel Mount, M12 Connector, Plug, Male, IP67, CPM12 Series

View this category
Bulk discount available

Subtotal (1 unit)*

£9.34

(exc. VAT)

£11.21

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 94 unit(s) ready to ship
  • Plus 17 unit(s) ready to ship from another location
  • Plus 100 unit(s) shipping from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£9.34
5 - 9£9.06
10 +£8.78

*price indicative

RS Stock No.:
250-0745
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Contacts

5

Product Type

Circular Connector

Mount Type

Panel Mount

Connector Size

M12

Current

4A

Plug/Socket

Plug

Contact Gender

Male

IP Rating

IP67

Orientation

Straight

Series

CPM12

Voltage

60.0V

Coding

A

Termination Type

Partially Stripped

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

75°C

Housing Material

Brass Nickel Plated

Standards/Approvals

IEC 61076-2-101

Pole Format

5

Contact Plating

Gold Flash

Contact Material

Copper Zinc Alloy

COO (Country of Origin):
IN

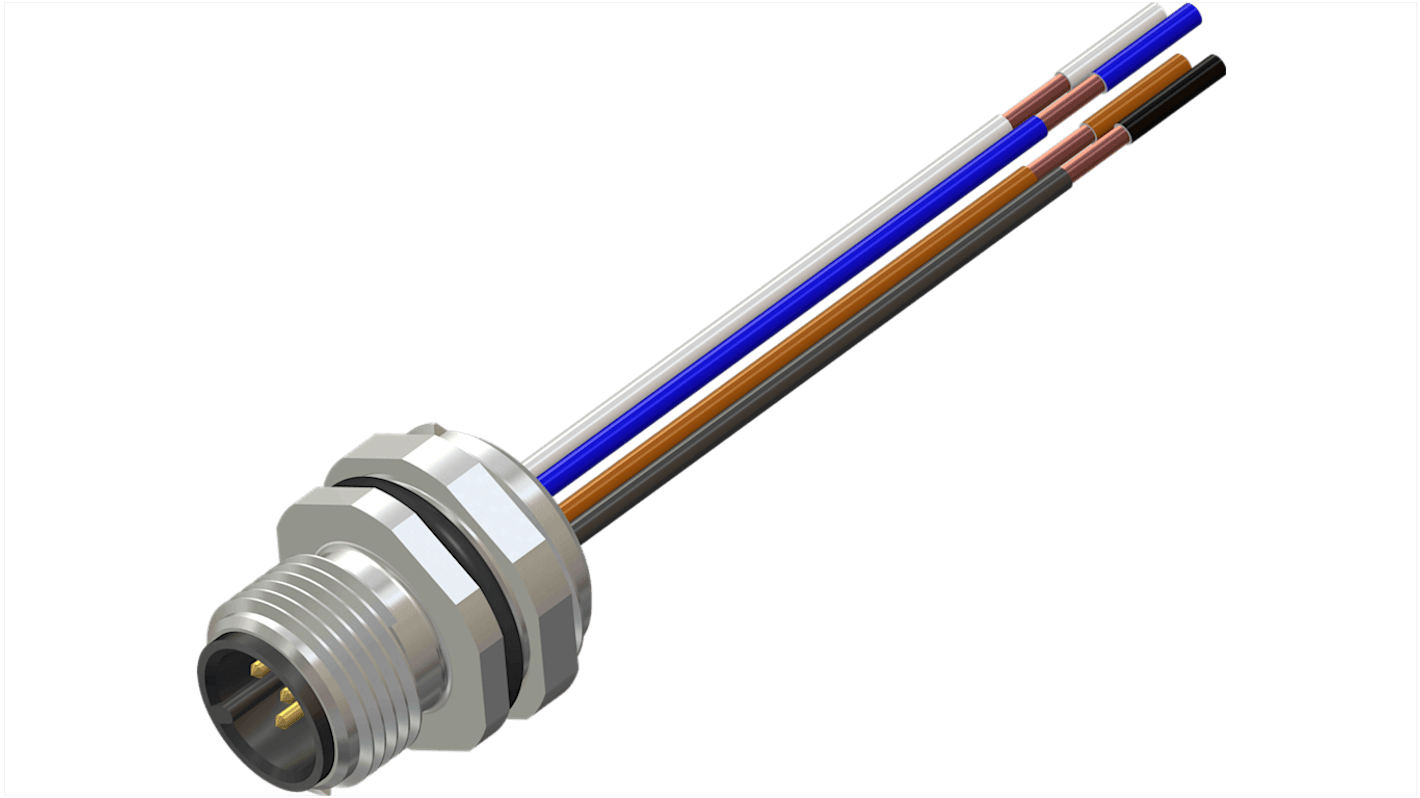

RS PRO 5 Core Male M12 Connector Assembly (Unterminated)


The RS PRO M12 single-ended multicore cable assembly is designed for front panel mounting and features 5 x 500mm partially stripped wires for quick and easy custom installation, and a tough and durable design for the safe and reliable transmission of data in harsh industrial settings.;Featuring a Brass Nickel-Plated housing with a secure Neoprene O-ring for peace of mind from moisture and liquid penetration, Gold plated contacts for excellent data transmission and each wire is wrapped in Polyvinyl Chloride (PVC) for easy and safe termination. The RS PRO multicore cable assembly is built for the industrial environment.

Features and benefits


  • M12 connector to unterminated wires

  • PG9 Clamp Nut

  • Shielded A coded cable

  • High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge

  • Neoprene O-ring to keep out liquid and moisture

  • Nickel-plated Brass housing

  • 5 Core cable

  • Length 500mm

  • Operating temperature range from -25°C to +75˚C

  • Voltage rating of 250V

  • Brass contacts with Gold Flash plating

  • Current rating of 4A

  • IP67 rating

    • Typical Applications


    Ideal for industrial use in automation and sensor equipment in a wide range of applications including:

  • Instrumentation

  • Process control

  • Robotics

  • Assembly lines

  • Factory automation

  • Industrial automation

    • Approvals and Standards: IEC 61076-2-101
