Available in either plug (straight or 90°) or socket (straight only) variations. They may be mated to the opposite gender panel connector or can be mated in an interchangeable manner, therefore in line connections are possible.

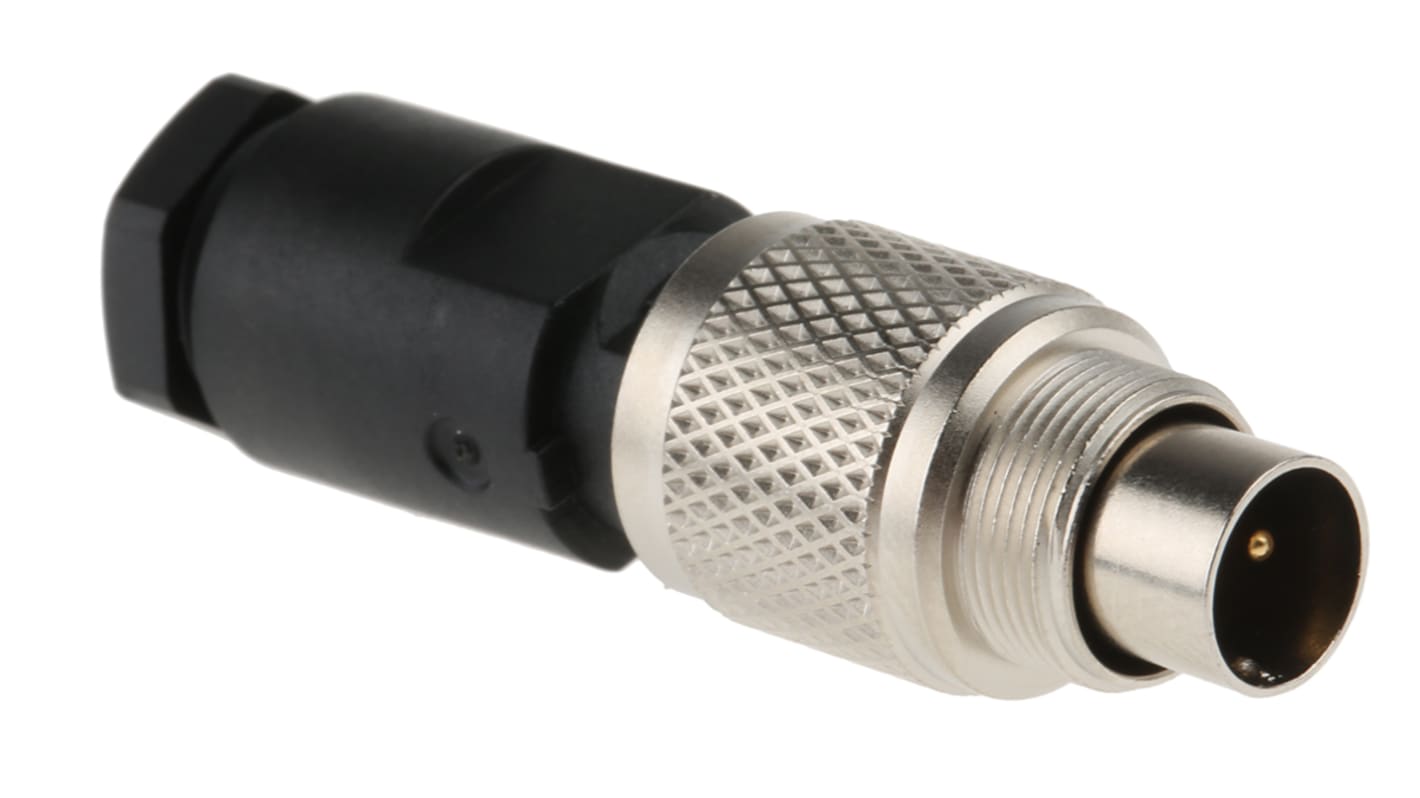

The Binder 712 series 3-contacts, M9 male subminiature circular connector has a plug-type connection. This cable mount connector has a voltage rating of 125V and a current rating of up to 4A per contact. This connector is made of polyamide with gold-plated brass contacts. It supports a screw-on locking mechanism for sturdy mating attenuation and reliable contact.
Cable plug and socket
Available in either plug (straight or 90°) or socket (straight only) variations. They may be mated to the opposite gender panel connector or can be mated interchangeably, therefore in line connections are possible.

Straight body orientation
Solder termination
Durability is greater than 500 mating cycles
Not shielded
Wire gauge is 24AWG
Cable outlet ranges between 3.5mm and 5mm
Operating temperature ranges between -40°C and 85°C

Process control
Industrial automation and instrumentation
Commercial electronics

IP67 rated
UL approved
