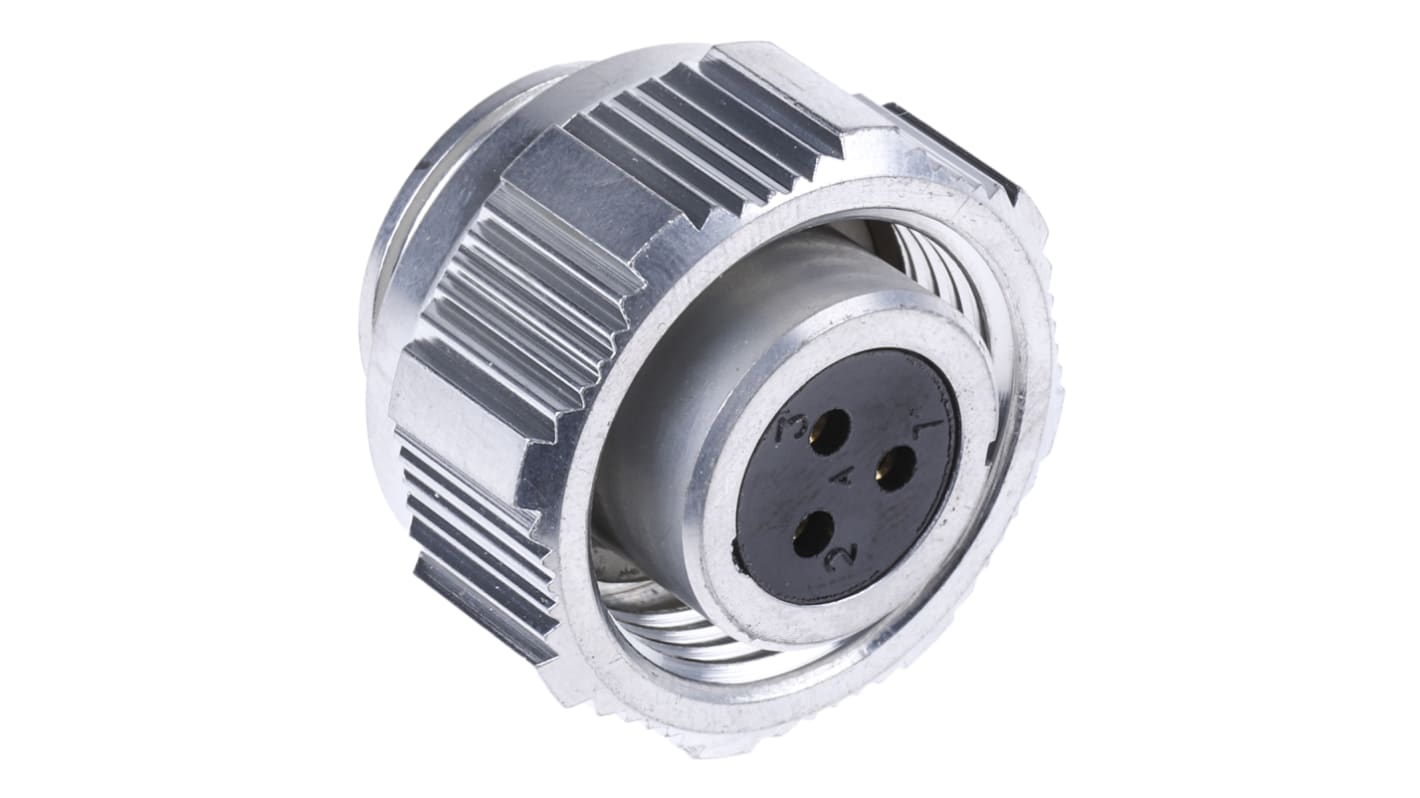

Amphenol Socapex Circular Connector, 3 Contacts, Cable, Standard Connector, Socket, Female, IP67, SL61 Series
- RS Stock No.:
- 190-2273
- Mfr. Part No.:
- SL BF 13 U
- Brand:
- Amphenol Socapex
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 100 units)*
£9,421.00
(exc. VAT)
£11,305.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 100 | £94.21 | £9,421.00 |
| 200 + | £89.499 | £8,949.90 |
*price indicative
- RS Stock No.:
- 190-2273
- Mfr. Part No.:
- SL BF 13 U
- Brand:
- Amphenol Socapex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Socapex | |
| Product Type | Circular Connector | |
| Number of Contacts | 3 | |
| Mount Type | Cable | |
| Connector Size | Standard | |
| Current | 10A | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| IP Rating | IP67 | |
| Orientation | Straight | |
| Series | SL61 | |
| Voltage | 280.0V | |
| Termination Type | Solder | |
| Shell Size | 13 mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Pole Format | 3 | |
| Contact Plating | Gold | |
| Contact Material | Aluminium | |
| Select all | ||
|---|---|---|
Brand Amphenol Socapex | ||
Product Type Circular Connector | ||
Number of Contacts 3 | ||
Mount Type Cable | ||
Connector Size Standard | ||
Current 10A | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
IP Rating IP67 | ||
Orientation Straight | ||
Series SL61 | ||
Voltage 280.0V | ||
Termination Type Solder | ||
Shell Size 13 mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Pole Format 3 | ||
Contact Plating Gold | ||
Contact Material Aluminium | ||
Non Compliant
Amphenol Circular Connector
The Amphenol SL61 series 3-pole female circular connector has a plug-type connection. This panel-mount body of the plug and inline receptacle connector has a voltage rating of 280V and a current rating of up to 10A per contact. The circular connector has a Compact design with easy wiring and screw lock thread for secure mating attenuation. The connector is MADE of aluminium alloy with nickel plating which provides them excellent reliability and robustness.
Amphenol - SL 61 Series Circular Connectors
This family of connectors is widely used in industrial and electronic applications.
This series includes sockets fitted with male or female contacts, plugs with a choice of straight or angled connectors and accessories (blanking plugs, sealing sleeves).
Available in four enclosure sizes, four types of contacts including currents ranging from 7.5 to 50 Amperes and different contact arrangements.
Connected using screws, with positioning and guiding pin.
Features and Benefits
Straight body orientation
Solder termination
Contact size is 16
Operating temperature ranging between -40°C and 85°C
Receptacle with locking ring
Applications
Automation
Entertainment (brand-lights)
Instrumentation
Power distribution
Robotics
Transport
Certifications
IP55 rated
