RS PRO Circular Connector, 4 Contacts, Cable Mount, M8 Connector, Plug, Male, IP67
- RS Stock No.:
- 186-3079
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£19.14
(exc. VAT)
£22.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 71 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
- Plus 72 unit(s) shipping from 24 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £19.14 |
10 - 24 | £17.96 |
25 - 49 | £16.89 |
50 + | £15.54 |
*price indicative
- RS Stock No.:
- 186-3079
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 4 | |
Mounting Type | Cable Mount | |
Connector Size | M8 | |
Plug/Socket | Plug | |
Contact Gender | Male | |
Termination Method | Screw | |
IP Rating | IP67 | |
Current Rating | 3.0A | |
Body Orientation | Right Angle | |
Voltage Rating | 30.0 V | |
Mating Type | Threaded | |
Pole Format | 4P | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 4 | ||
Mounting Type Cable Mount | ||
Connector Size M8 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Current Rating 3.0A | ||
Body Orientation Right Angle | ||
Voltage Rating 30.0 V | ||
Mating Type Threaded | ||
Pole Format 4P | ||
- COO (Country of Origin):
- IN

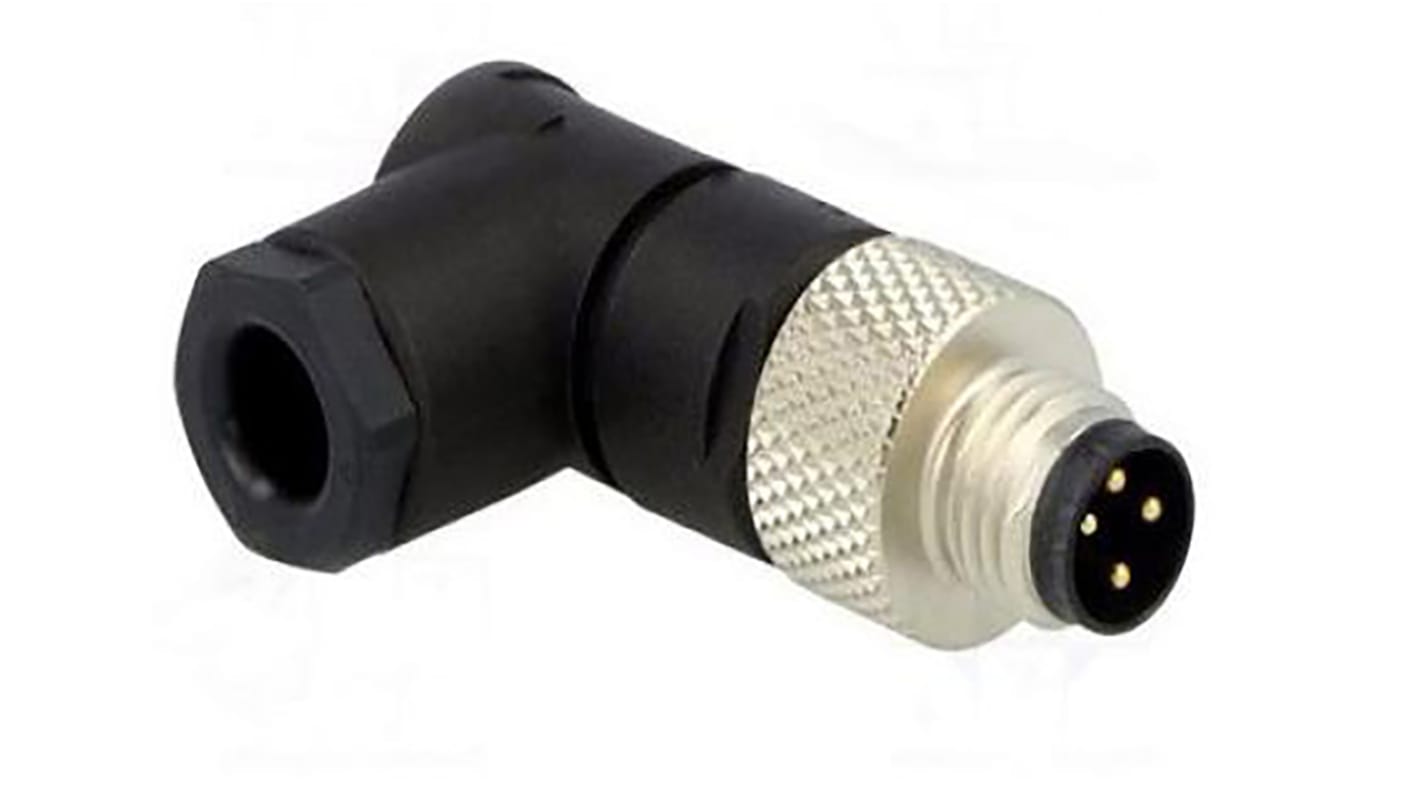

RS PRO Circular Connector
The RS PRO circular 4-pole, right-angled cable mount M8 female connector has a plug-type connection. This connectors voltage rating is 30V and the current rating is up to 3A per contact. The threaded connectors mate with cable mount plugs and feature a neoprene O-ring connector receptacles that provide endless connection possibilities. The connector body has gold plated contact plating with brass nickel plated coupling nut and PG5 cable gland.
Features and Benefits
• Insulation resistance is greater than or equal to 100Mohm
• Operation temperature ranges between -25°C and 75°C
• Screw termination
• Sturdy and reliable connection
• Operation temperature ranges between -25°C and 75°C
• Screw termination
• Sturdy and reliable connection
Applications
• Automation and sensor equipment
• Industrial machinery
• Industrial machinery
Certifications
• IP67 rated
