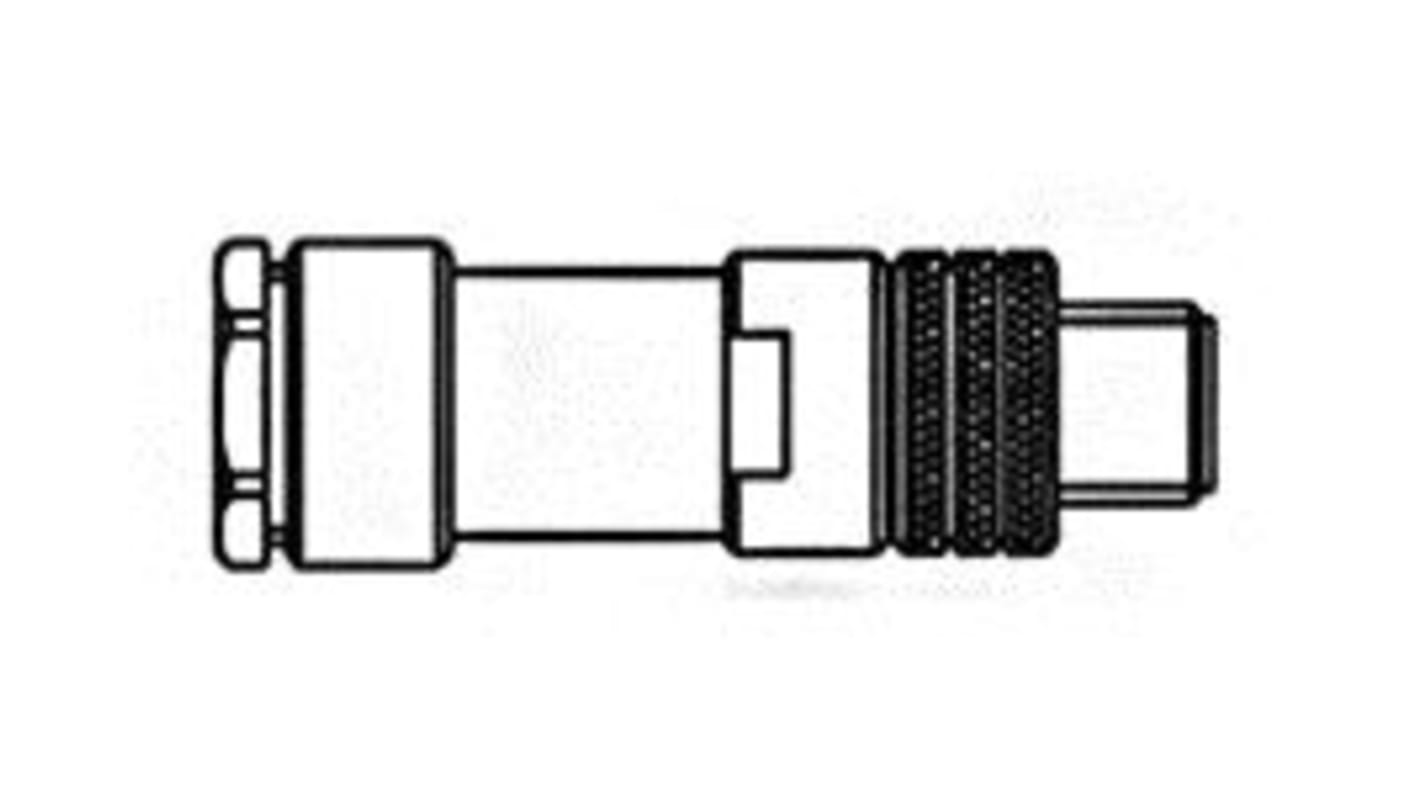

Molex Circular Connector, 4 Contacts, Cable Mount, M8 Connector, Plug, Male, IP67, Nano-Change Series

View this category
Bulk discount available

Subtotal (1 unit)*

£12.34

(exc. VAT)

£14.81

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 6 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£12.34
10 +£12.00

*price indicative

RS Stock No.:
174-6597
Mfr. Part No.:
120091-0025
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Number of Contacts

4

Mounting Type

Cable Mount

Connector Size

M8

Plug/Socket

Plug

Contact Gender

Male

Termination Method

Screw

IP Rating

IP67

Current Rating

4.0A

Series

Nano-Change

Body Orientation

Straight

Voltage Rating

30.0 V

Mating Type

Threaded

Housing Material

Polymer

Pole Format

4P

Contact Plating

Gold

Shielded/Unshielded

Unshielded

Contact Material

Brass

Minimum Operating Temperature

-40°C

Outer Diameter

3.5 → 5mm

Maximum Operating Temperature

+85°C

Series Number

120091

COO (Country of Origin):
DE

Molex Nano-Change Series Circular Connector, 4 Contacts, M8 Connector size - 120091-0025


This product is a circular connector designed for versatile applications in the automation and electronics sectors. The Nano-Change (M8) connector features a 4-pin configuration, ensures IP67 protection, and is suitable for cable mounting. With a robust construction, it can operate efficiently in harsh environments, making it ideal for various electrical and mechanical settings.

Features & Benefits


• Provides a secure connection with a male plug design
• Features screw termination for reliable stability
• Unshielded construction offers lightweight and compact advantages
• IP67 rating ensures protection against dust and water immersion

Applications


• Used for connecting sensors in industrial automation
• Suitable for field attachment in machinery wiring
• Applicable in requiring high-temperature performance
• Utilised in environments where moisture protection is essential
• Ideal for equipment requiring unshielded connectivity

What is the significance of the IP67 rating for this connector?


The IP67 rating indicates that the connector provides complete protection against dust ingress and is capable of withstanding immersion in water up to 1 metre for a duration of 30 minutes. This makes it suitable for outdoor use and in damp environments.

How does the screw termination method enhance reliability?


Screw termination ensures a secure and robust connection that can endure vibrations and mechanical stress, reducing the risk of accidental disconnection during operation.

What are the limitations regarding cable diameter for this product?


This connector accommodates cable diameters between 3.50mm to 5.00mm, which allows for compatibility with various wiring configurations. It is crucial to select cables within this range to ensure optimal performance.

Can it be used in high-temperature environments?


Yes, the connector is designed to operate effectively within a temperature range of -40°C to +85°C, making it suitable for high-temperature applications in industrial settings.

What type of materials are used in its construction?


The connector features a polymer housing, brass contacts with gold plating, and a zinc die-cast coupling nut with nickel plating, providing durability and resistance to corrosion.
