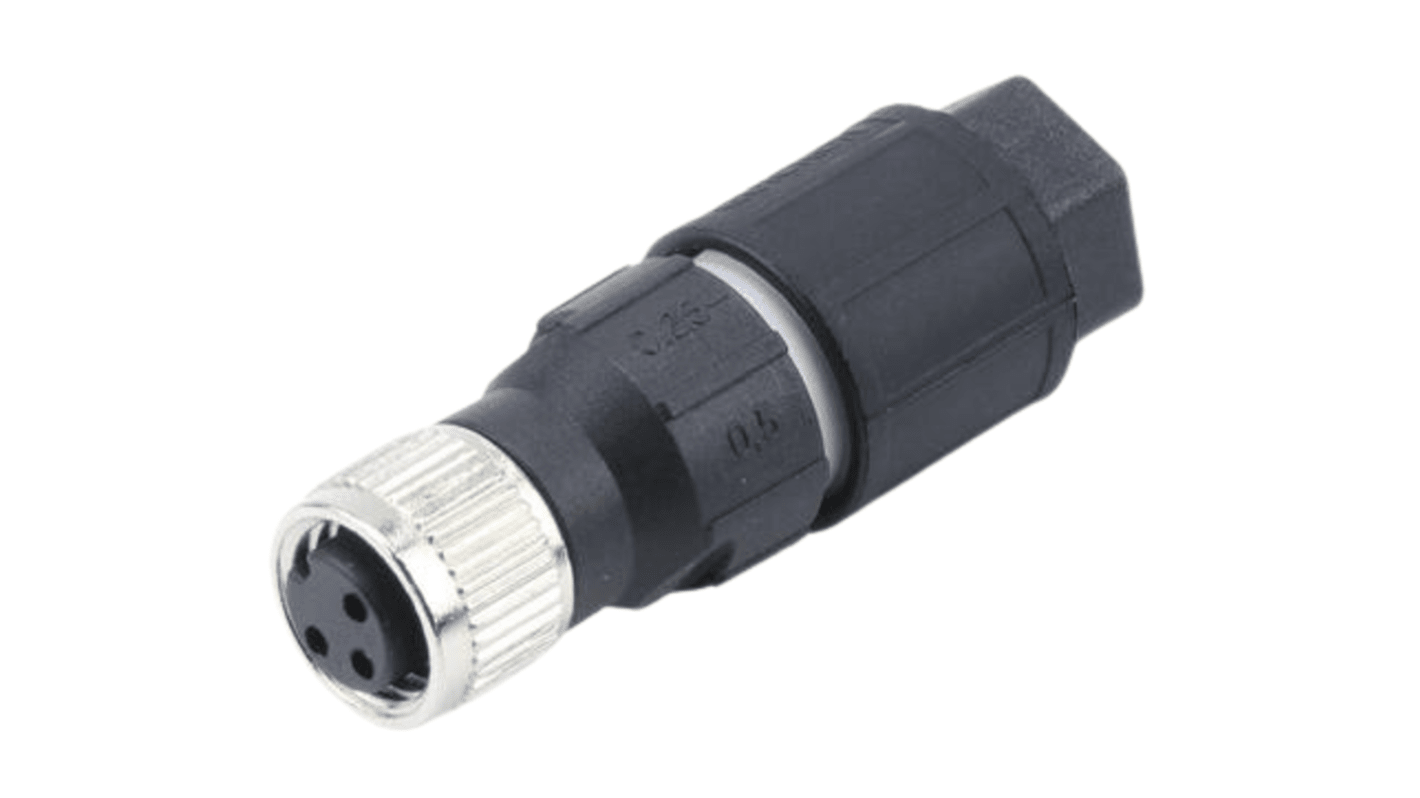

Molex Circular Connector, 3 Contacts, Cable Mount, M8 Connector, Plug, Female, IP67, Nano-Change Series
- RS Stock No.:
- 134-8792
- Mfr. Part No.:
- 120091-0028
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 1 unit)*
£12.43
(exc. VAT)
£14.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 100 unit(s) shipping from 12 December 2025
- Plus 125 unit(s) shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag |
---|---|
1 - 4 | £12.43 |
5 - 9 | £11.66 |
10 - 24 | £10.86 |
25 - 49 | £10.26 |
50 + | £9.96 |
*price indicative
- RS Stock No.:
- 134-8792
- Mfr. Part No.:
- 120091-0028
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Number of Contacts | 3 | |
Mounting Type | Cable Mount | |
Connector Size | M8 | |
Plug/Socket | Plug | |
Contact Gender | Female | |
Termination Method | IDC | |
IP Rating | IP67 | |
Current Rating | 3.0A | |
Body Orientation | Straight | |
Series | Nano-Change | |
Voltage Rating | 60.0 V | |
Mating Type | Threaded | |
Housing Material | Polymer | |
Pole Format | 3 | |
Contact Plating | Gold over Nickel | |
Shielded/Unshielded | Unshielded | |
Outer Diameter | 2.50 → 5.20mm | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -25°C | |
Contact Material | Copper | |
Series Number | 120091 | |
Select all | ||
---|---|---|
Brand Molex | ||
Number of Contacts 3 | ||
Mounting Type Cable Mount | ||
Connector Size M8 | ||
Plug/Socket Plug | ||
Contact Gender Female | ||
Termination Method IDC | ||
IP Rating IP67 | ||
Current Rating 3.0A | ||
Body Orientation Straight | ||
Series Nano-Change | ||
Voltage Rating 60.0 V | ||
Mating Type Threaded | ||
Housing Material Polymer | ||
Pole Format 3 | ||
Contact Plating Gold over Nickel | ||
Shielded/Unshielded Unshielded | ||
Outer Diameter 2.50 → 5.20mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -25°C | ||
Contact Material Copper | ||
Series Number 120091 | ||
- COO (Country of Origin):
- DE
Molex Nano-Change Series Circular Connector, 3 Contacts, 3A Current - 120091-0028
This circular connector is ideal for applications requiring reliable connectivity in harsh environments. Designed with high durability, it features an M8 size, accommodating a 3-pin female plug configuration. The connector is suitable for cable mounting and boasts an IP67 rating for water and dust resistance, ensuring performance under challenging conditions.
Features & Benefits
• Offers a current rating of 3A for efficient power transmission
• Maintains a voltage rating of 60V for versatile usage
• Features IDC termination for straightforward assembly
• Made from polymer housing for enhanced durability
• Unshielded design optimises space and versatility in installations
• Maintains a voltage rating of 60V for versatile usage
• Features IDC termination for straightforward assembly
• Made from polymer housing for enhanced durability
• Unshielded design optimises space and versatility in installations
Applications
• Utilised in automation systems for reliable data transmission
• Ideal for tight spaces in electrical equipment installations
• Suitable for industrial machinery requiring secure connections
• Can be used in mechanical with high-performance needs
• Ideal for tight spaces in electrical equipment installations
• Suitable for industrial machinery requiring secure connections
• Can be used in mechanical with high-performance needs
What benefits does the IDC termination provide for users?
The IDC termination method simplifies installation, enabling quick connections without the need for specialised tools, thereby reducing assembly time. This makes it ideal for users who prioritise efficiency during the setup process.
How does the IP67 rating enhance usability in various environments?
The IP67 rating guarantees that the connector is protected against dust and can withstand immersion in water up to 1 metre deep for a limited duration. This capability ensures reliable operation in outdoor and rugged industrial settings.
Is this connector suitable for high-temperature applications?
Yes, the connector is designed to operate in environments with temperatures ranging from -25°C to +80°C, making it suitable for high-temperature applications within specified limits. This allows for use in a variety of challenging conditions without compromising performance.
Brad Harrison - M8
The Brad Harrison® range of connectors and splitter boxes have been principally designed for use in industrial applications. The Quick Disconnect® principle offers cost savings by enabling quick and simple replacement of either the sensors or cable, helping keep machine down time to a minimum. Designed for use in harsh environments, these connectors are available in re-wireable or pre-wired, factory moulded versions which are robust, compact and waterproof up to IP68. They are typically used for control system products such as proximity, limit and other forms of switches, but are equally at home in test, instrumentation and other electrical/electronic applications where the operating environment is less arduous.
