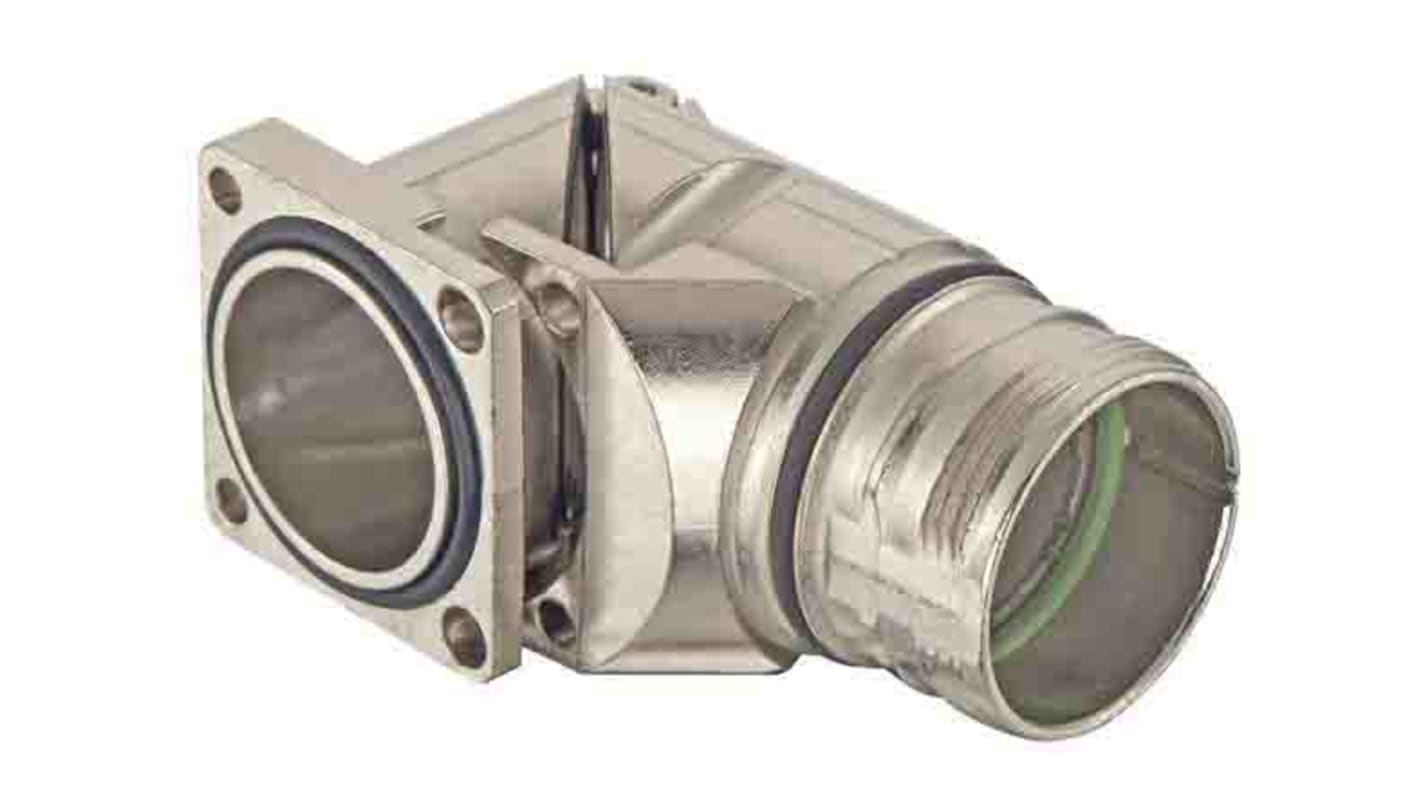

HARTING Housing, Bulkhead Mount, M23 Connector, IP67, IP69K, Han M23 Series
- RS Stock No.:
- 165-1128
- Mfr. Part No.:
- 09151000901
- Brand:
- HARTING
Subtotal (1 unit)*
£28.16
(exc. VAT)
£33.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.16 |
*price indicative
- RS Stock No.:
- 165-1128
- Mfr. Part No.:
- 09151000901
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Mounting Type | Bulkhead Mount | |
| Connector Size | M23 | |
| IP Rating | IP67, IP69K | |
| Series | Han M23 | |
| Body Orientation | Right Angle | |
| Housing Material | Copper | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Mounting Type Bulkhead Mount | ||
Connector Size M23 | ||
IP Rating IP67, IP69K | ||
Series Han M23 | ||
Body Orientation Right Angle | ||
Housing Material Copper | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
Size M23
High contact density
Robust hoods and housings for industrial applications
Assembly requires no tools
Good EMC properties
6 to 19 contacts
Crimp, solder and PCB solder connections
High contact density
Robust hoods and housings for industrial applications
Assembly requires no tools
Good EMC properties
6 to 19 contacts
Crimp, solder and PCB solder connections
Bulkhead mounted housing Angled Front wall assembly O-ring seal (4 x 2 .7 mm)
