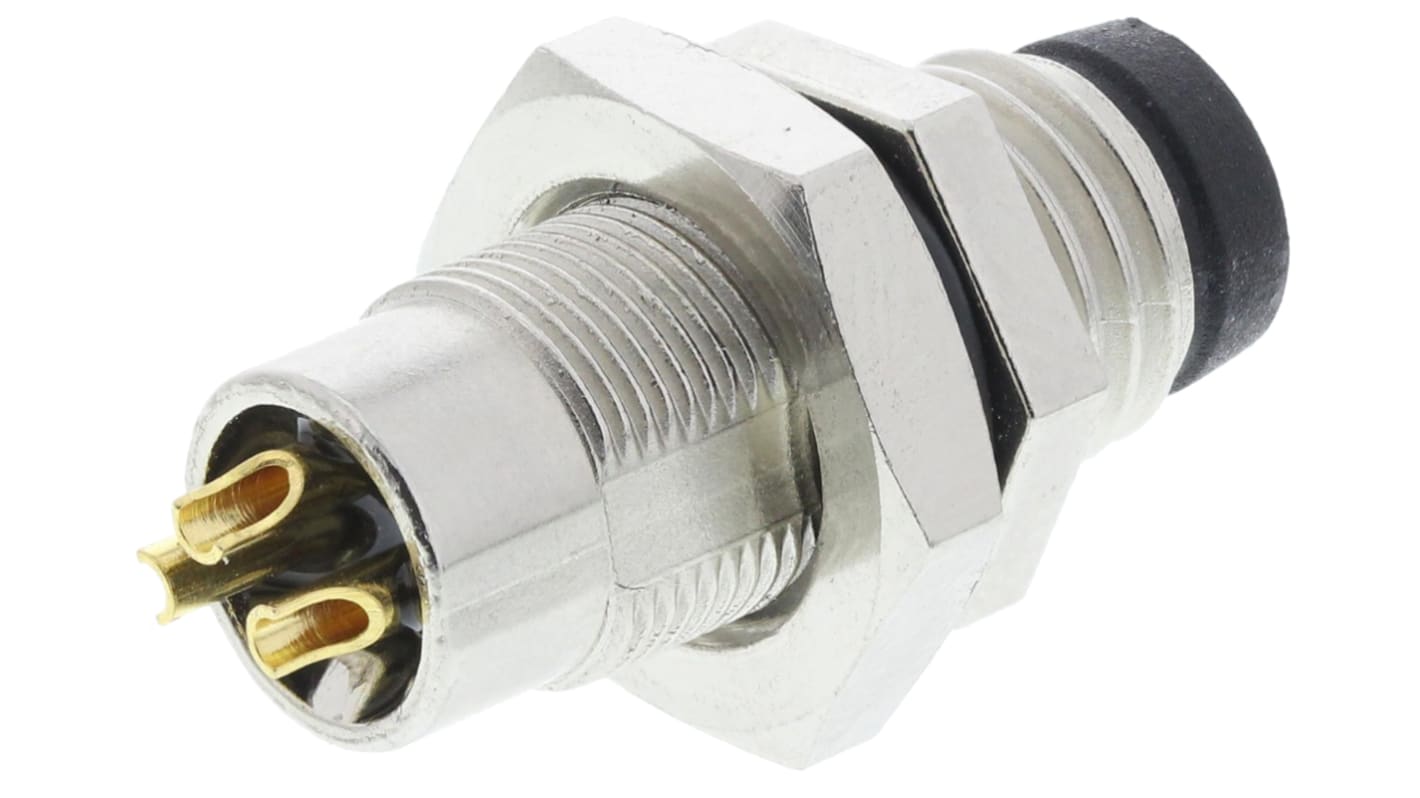

TE Connectivity Circular Connector, 3 Contacts, Panel Mount, M8 Connector, Plug, Male, IP67, M8 Series
- RS Stock No.:
- 164-0245
- Mfr. Part No.:
- 1838838-1
- Brand:
- TE Connectivity
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 164-0245
- Mfr. Part No.:
- 1838838-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
Panel Mount
From TE Connectivity, this panel mount receptacle is available in M8 or M12 and features a threaded connector for secure mating attenuation with corresponding M8 or M12 plugs. When mated, this connection is sealed to IP67, providing excellent protection against dust and water and resulting in a connector that is well suited for industrial purposes. This TE Connectivity panel mount connector is available in contact configurations of 3 to 5 pole and in male and female variants.
TE Connectivity Circular Connector
The TE connectivity M12 series is a 3-pole, panel mount male connector with a Plug type connection. The connector has a voltage rating of 60VAC/VDC and a current rating of 5A. It has a secure solder connection offering a high degree of safety and stability. As it is field serviceable, the connector is by definition easy to assemble while still being of rugged design. It has gold plated nickel brass contacts. The rugged connector is designed to provide a convenient and reliable connection system suited to a wide range of industrial applications.
Features and Benefits
• Connector size is M8
• Dust protected
• Effective insulation
• High durability
• Low cost
• Space efficient
• Straight body orientation
• The operating Temperature ranges between -25°C and 90°C
• Water resistant
• Dust protected
• Effective insulation
• High durability
• Low cost
• Space efficient
• Straight body orientation
• The operating Temperature ranges between -25°C and 90°C
• Water resistant
Applications
• Electrical panels
• Factory automation
• Industrial machinery
• Factory automation
• Industrial machinery
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• EU ELV Directive 2000/53/EC
• EU REACH Regulation (EC) No. 1907/2006
• IP67 rated
• BS EN 61340-5-1:2007
• EU ELV Directive 2000/53/EC
• EU REACH Regulation (EC) No. 1907/2006
• IP67 rated
Specifications
Attribute | Value |
---|---|
Number of Contacts | 3 |
Mounting Type | Panel Mount |
Connector Size | M8 |
Plug/Socket | Plug |
Contact Gender | Male |
Termination Method | Solder |
IP Rating | IP67 |
Current Rating | 5.0A |
Body Orientation | Straight |
Series | M8 |
Voltage Rating | 60 V |
Coding | A |
Contact Plating | Gold over Nickel |
Contact Material | Brass |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +90°C |
