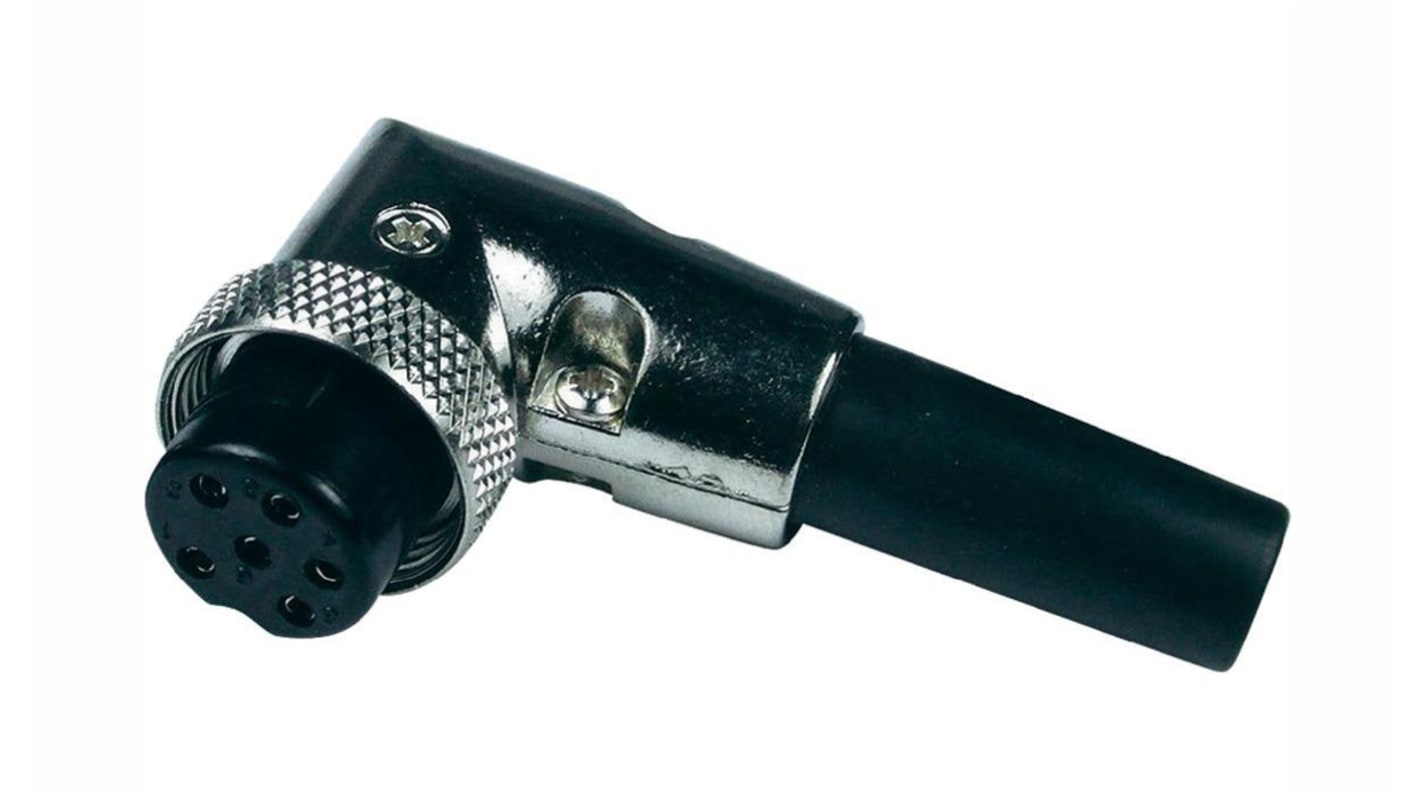

RS PRO Circular Connector, 6 Contacts, Cable Mount, Miniature Connector, Plug, Female
- RS Stock No.:
- 125-1079
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£7.36
(exc. VAT)
£8.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £7.36 |
10 - 24 | £6.91 |
25 - 49 | £6.52 |
50 + | £6.18 |
*price indicative
- RS Stock No.:
- 125-1079
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 6 | |
Mounting Type | Cable Mount | |
Connector Size | Miniature | |
Plug/Socket | Plug | |
Contact Gender | Female | |
Termination Method | Solder | |
Current Rating | 1A | |
Body Orientation | Right Angle | |
Series | ZC | |
Voltage Rating | 48 V | |
Mating Type | Threaded | |
Housing Material | Zinc Alloy | |
Pole Format | 6P | |
Contact Plating | Tin | |
Shielded/Unshielded | Unshielded | |
Strain Relief | Yes | |
Maximum Operating Temperature | +65°C | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 6 | ||
Mounting Type Cable Mount | ||
Connector Size Miniature | ||
Plug/Socket Plug | ||
Contact Gender Female | ||
Termination Method Solder | ||
Current Rating 1A | ||
Body Orientation Right Angle | ||
Series ZC | ||
Voltage Rating 48 V | ||
Mating Type Threaded | ||
Housing Material Zinc Alloy | ||
Pole Format 6P | ||
Contact Plating Tin | ||
Shielded/Unshielded Unshielded | ||
Strain Relief Yes | ||
Maximum Operating Temperature +65°C | ||
Minimum Operating Temperature -10°C | ||
RS Pro Circular Connector Plug Right Angle
From RS Pro, these miniature right angle connectors are primarily intended for low voltage and signal applications. With the 2-pin, all the way up to 8-pin available, you are sure to find a model suitable for your application. All models are highly reliable and excellent quality.
Features & Benefits
• Current Rating: 1A
• Voltage Rating: 48 V
• Body Orientation: Right Angle (90°)
• Voltage Rating: 48 V
• Body Orientation: Right Angle (90°)
