Hirose Circular Connector, 6 Contacts, Cable Mount, Miniature Connector, Plug, Female, IP67, IP68, HR30 Series
- RS Stock No.:
- 536-5706
- Mfr. Part No.:
- HR30-6PA-6S(71)
- Brand:
- Hirose
Bulk discount available
Subtotal (1 unit)*
£6.73
(exc. VAT)
£8.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 37 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
- Plus 300 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £6.73 |
10 - 49 | £6.03 |
50 - 99 | £5.45 |
100 - 249 | £4.91 |
250 + | £4.39 |
*price indicative
- RS Stock No.:
- 536-5706
- Mfr. Part No.:
- HR30-6PA-6S(71)
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirose | |
Number of Contacts | 6 | |
Mounting Type | Cable Mount | |
Connector Size | Miniature | |
Plug/Socket | Plug | |
Contact Gender | Female | |
Termination Method | Solder | |
IP Rating | IP67, IP68 | |
Current Rating | 2.0A | |
Body Orientation | Straight | |
Series | HR30 | |
Voltage Rating | 100.0 V ac | |
Contact Plating | Gold | |
Contact Material | Brass, Phosphor Bronze | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand Hirose | ||
Number of Contacts 6 | ||
Mounting Type Cable Mount | ||
Connector Size Miniature | ||
Plug/Socket Plug | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP67, IP68 | ||
Current Rating 2.0A | ||
Body Orientation Straight | ||
Series HR30 | ||
Voltage Rating 100.0 V ac | ||
Contact Plating Gold | ||
Contact Material Brass, Phosphor Bronze | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -25°C | ||

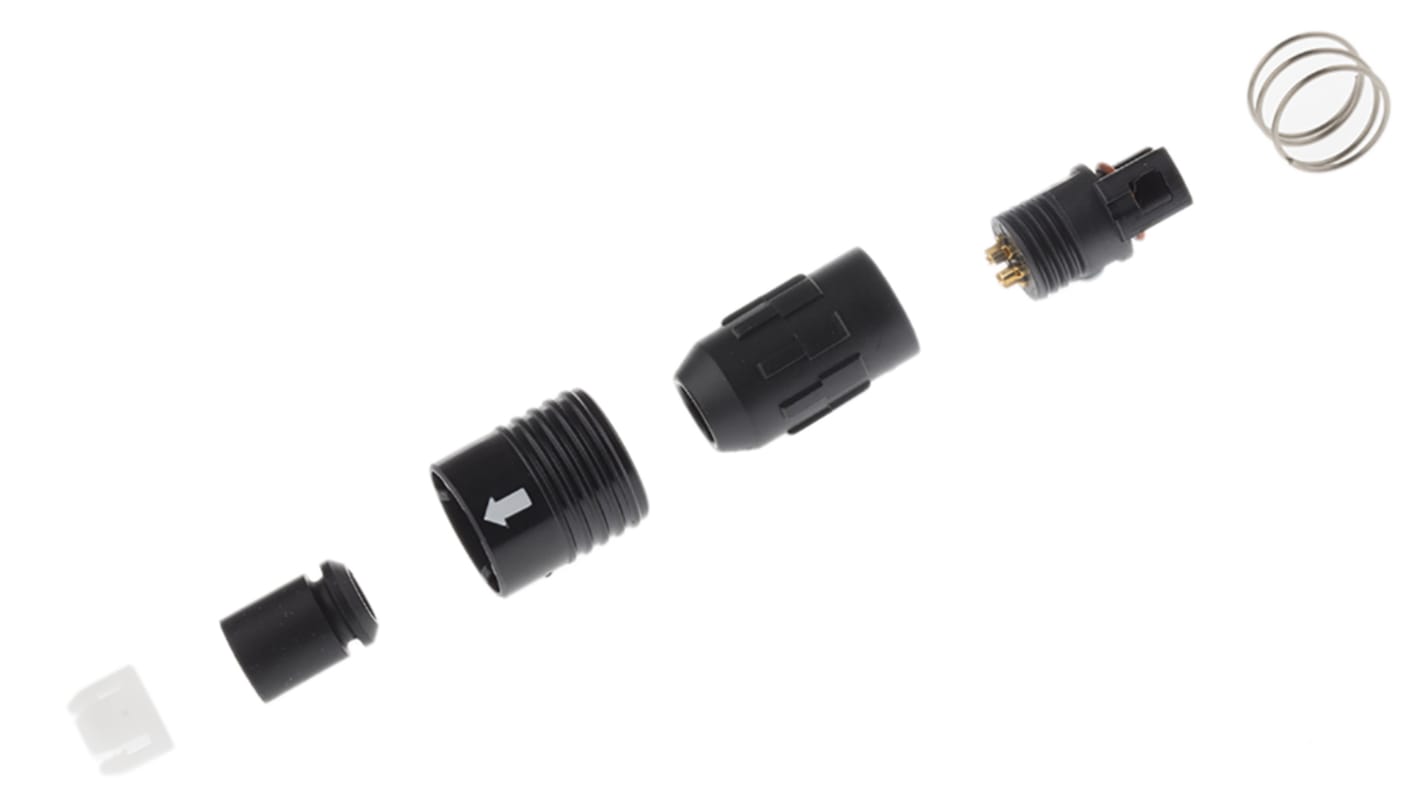

Hirose Miniature Connector Plug
The Hirose 6 way female cable mount miniature connector plug has a current rating of 2A and voltage rating of 140VDC/100VAC. Built-in lock/release mechanism securely locks mated connectors while allowing quick disconnection by simply pulling on the plugs release collar. Moulded-in grooves prevent finger slippage when pulled. The round configuration of the collar allows easy side-by-side panel mounting and will not snag on objects when the cable is pulled-out.
Features and Benefits
Glass reinforced thermoplastic compounds and noncorrosive components are used in all assemblies
Multiple polarizing keys protect the contacts from misalignment or attempted insertion of the wrong connector, while assuring correct mating between the corresponding connectors
Operating temperature ranges between -25°C and +85°C
Permanent alignment indicators in a contrasting colour on all connectors aid in correct alignment and engagement
Short in length when fully terminated and mated
Multiple polarizing keys protect the contacts from misalignment or attempted insertion of the wrong connector, while assuring correct mating between the corresponding connectors
Operating temperature ranges between -25°C and +85°C
Permanent alignment indicators in a contrasting colour on all connectors aid in correct alignment and engagement
Short in length when fully terminated and mated
Applications
Applications requiring use of lightweight, corrosion resistant quick mate-release cable connections
I/O applications
Industrial devices
Instrumentation
Portable devices
Recreational equipment
Test and measuring equipment
I/O applications
Industrial devices
Instrumentation
Portable devices
Recreational equipment
Test and measuring equipment
Certifications
IP67 rated
IP68 rated
IP68 rated
