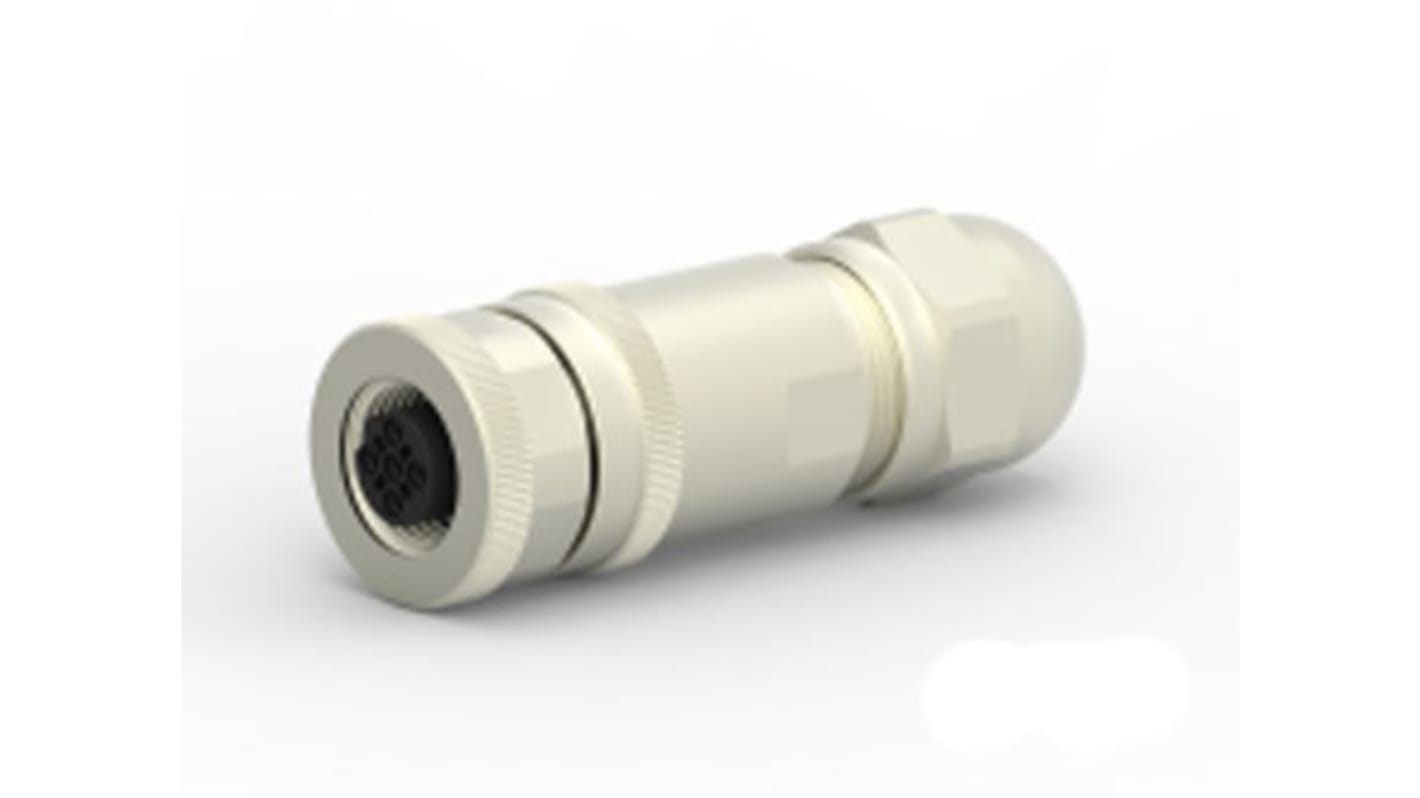

TE Connectivity Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67, T411 Series
- RS Stock No.:
- 124-7132
- Mfr. Part No.:
- T4110412051-000
- Brand:
- TE Connectivity
Available to back order for despatch 13/05/2024
Added
Price Each
£10.04
(exc. VAT)
£12.05
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £10.04 |
| 5 - 9 | £9.54 |
| 10 - 24 | £9.02 |
| 25 + | £8.52 |
- RS Stock No.:
- 124-7132
- Mfr. Part No.:
- T4110412051-000
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
M12 Field Installable B Code Connector, Shielded
From TE connectivity, this shielded M12 connector has screw locking for a secure connection. The connector has a screw terminal and cable gland and is field serviceable. With a nickel plated copper alloy shell and gold plated contacts, this robust connector assures a reliable connection.
Features and Benefits
• Shielded Connector
• Gold over Nickel Contacts
• B-coded Polarization
• IP67
• UL Flammability Rating UL 94V-0
• Gold over Nickel Contacts
• B-coded Polarization
• IP67
• UL Flammability Rating UL 94V-0
Applications
M12 connectors are Euro-style sensor connectors that are ideal for connection in industrial and factory automation. These M12 connectors have B-coded polarization, and are used primarily in fieldbus applications, such as interbus and profibus systems.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 5 |
| Mounting Type | Cable Mount |
| Connector Size | M12 |
| Plug/Socket | Socket |
| Contact Gender | Female |
| Termination Method | Screw |
| IP Rating | IP67 |
| Current Rating | 4.0A |
| Series | T411 |
| Body Orientation | Straight |
| Coding | B |
| Voltage Rating | 125 V |
| Mating Type | Threaded |
| Shell Size | 20 |
| Housing Material | Brass |
| Pole Format | 5P |
| Contact Plating | Gold |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Bronze |
