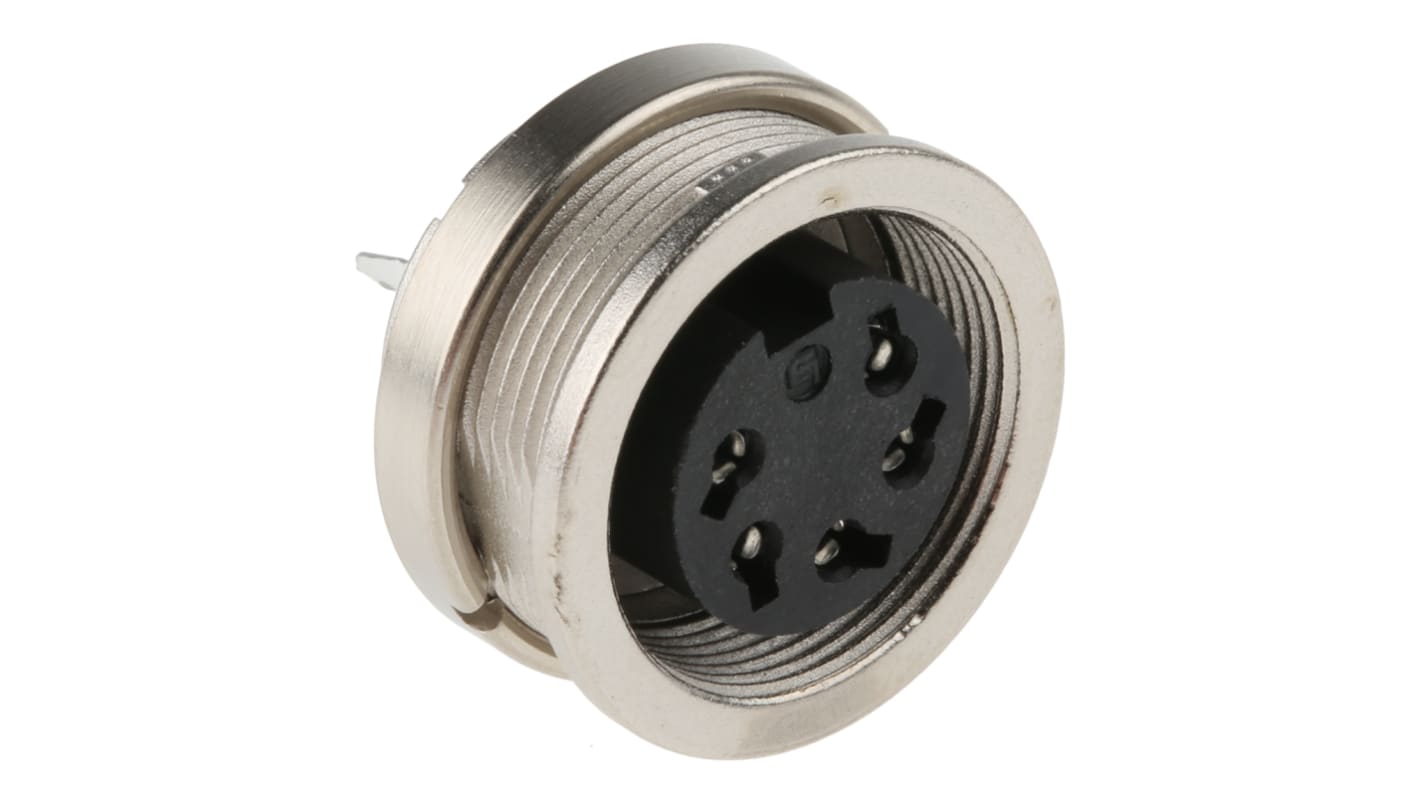

binder Circular Connector, 5 Contacts, Panel Mount, M16 Connector, Socket, Female, IP40, 680 Series
- RS Stock No.:
- 115-2635
- Mfr. Part No.:
- 09-0316-00-05
- Brand:
- binder
Save 29% when you buy 500 units
Subtotal (1 unit)*
£5.84
(exc. VAT)
£7.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 158 unit(s) ready to ship
- Plus 66 unit(s) ready to ship from another location
- Plus 540 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 49 | £5.84 |
50 - 99 | £5.26 |
100 - 249 | £4.96 |
250 - 499 | £4.39 |
500 + | £4.10 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3.22
(exc. VAT)
£3.86
(inc. VAT)
- RS Stock No.:
- 115-2635
- Mfr. Part No.:
- 09-0316-00-05
- Brand:
- binder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | binder | |
Number of Contacts | 5 | |
Mounting Type | Panel Mount | |
Connector Size | M16 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Solder | |
IP Rating | IP40 | |
Current Rating | 6.0A | |
Body Orientation | Straight | |
Series | 680 | |
Voltage Rating | 250.0 V | |
Contact Plating | Silver | |
Maximum Operating Temperature | +85°C | |
Contact Material | Brass | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand binder | ||
Number of Contacts 5 | ||
Mounting Type Panel Mount | ||
Connector Size M16 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP40 | ||
Current Rating 6.0A | ||
Body Orientation Straight | ||
Series 680 | ||
Voltage Rating 250.0 V | ||
Contact Plating Silver | ||
Maximum Operating Temperature +85°C | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
Panel plug & socket
Featuring a straight body, this panel mount connector is miniature but robust. Ideal for solder termination it features silver contact plating with brass contact material. Binder 680 series connectors provide high reliability with simple assembly. Common use for these connectors include medical equipment, machine tool control, industrial automation and instrumentation.
Features and Benefits:
The use of Silver and Brass prevent oxidation and therefore provide durability and extend life expectancy. Multiple termination techniques are available due to the miniature size for panel mounting.
Additional features:
• Female
• Solder termination
• Operating temperature -40°C to +85°C
• Solder termination
• Operating temperature -40°C to +85°C
Binder 680 Series-Metal
