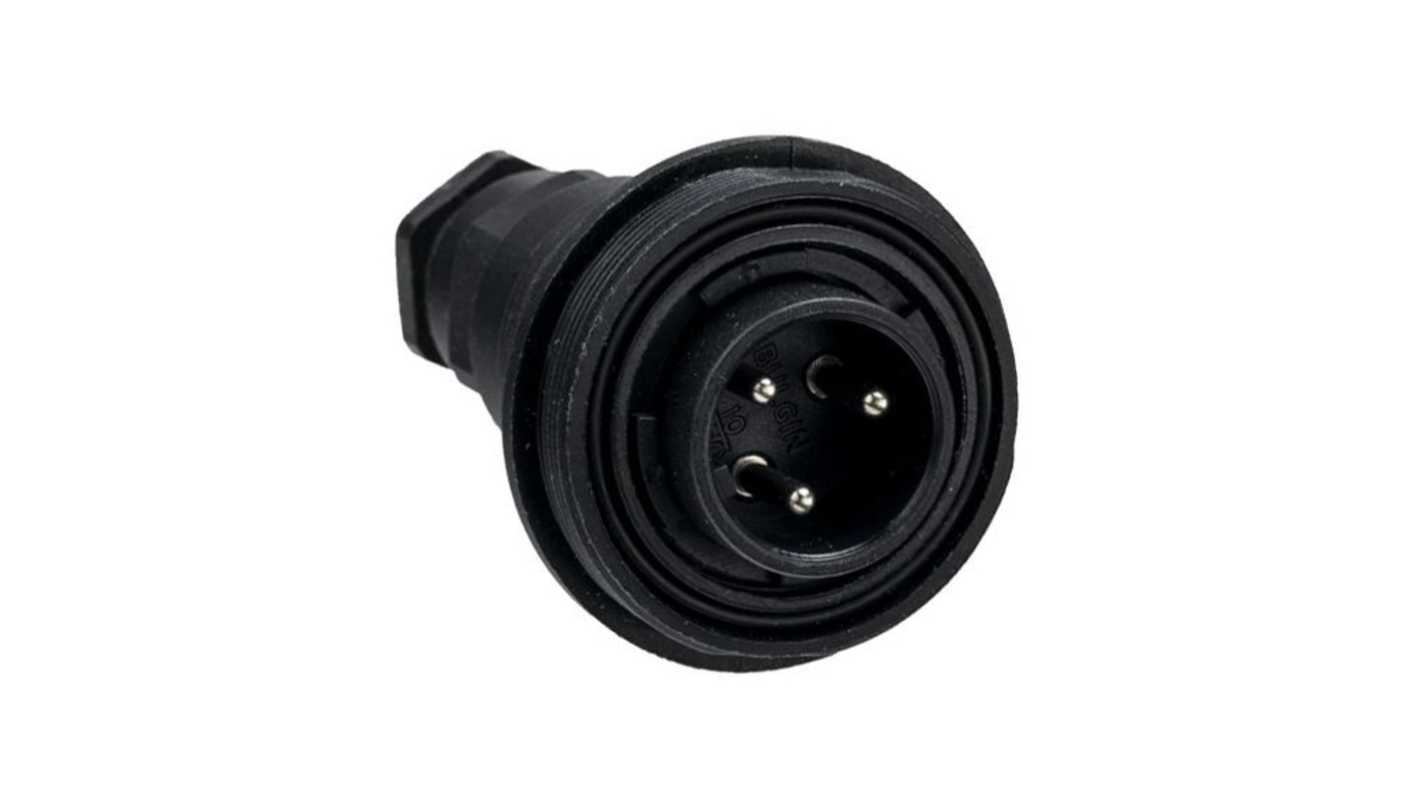

Bulgin Circular Connector, 3 Contacts, In-line, Plug, Male, IP68, Standard Buccaneer Series

RS Stock No.:: 489-403
Distrelec Article No.:: 144-01-750
Mfr. Part No.:: PX0732/P
Brand:: Bulgin

Bulgin Circular Connector, 3 Contacts, In-line, Plug, Male, IP68, Standard Buccaneer Series

Bulk discount available

Subtotal (1 unit)**

£18.22

(exc. VAT)

£21.86

(inc. VAT)

177 In stock - FREE next working day delivery available*

20 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 9	£18.22
10 - 49	£16.80
50 - 99	£15.83
100 +	£14.54

**price indicative

RS Stock No.:: 489-403
Distrelec Article No.:: 144-01-750
Mfr. Part No.:: PX0732/P
Brand:: Bulgin

Bulgin Circular Connector

The Bulgin Buccaneer series 3-poles male circular in-line flex cable connector has a plug-type connection. This connector has a voltage rating of 250VAC/DC and current rating is up to 12A per contact. This cable mounting connector is ideal for use in challenging conditions. The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts. The connectors also feature a positive locking mating system that means the connector cannot be mismatched.
Environment
The standard series of buccaneer connectors are protected to IP68 when mated. This means they are dust-tight and resistant to particle ingress such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.
Frequently asked questions (FAQs)Q: Are there accessories available for this connector?
A: There are connector caps available for standard buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.
Q: How durable is the connector?
A: The standard buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oil and saltwater.
Q: What are the mating requirements of this connector?
A: The buccaneer standard series cable connectors mate with corresponding in-line connectors for a cable-to-cable connection, or with a panel, chassis and PCB connectors.
Q: Are contacts supplied with this connector?
A: The connector comes complete with contacts.
Note:
Never unmate or mate the product while still under load

Features and Benefits

Screw termination
Straight body orientation
Cable acceptance ranges between 3.5mm and 9mm
Easy assembly, no special tools required
Insulation resistance is greater than 104Mohm
Operation temperature ranges between -20°C and 70°C
Positive locking keyways
Shell size is 38mm
Unshielded
Water and dustproof

Applications

Electrical equipment
Industrial automation

Certifications

CSA certified
IP68 rated
UL approved
VDE approved

Approvals

CSA; UL; VDE

Attribute	Value
Number of Contacts	3
Mounting Type	In-line
Connector Size	Standard
Plug/Socket	Plug
Contact Gender	Male
Termination Method	Screw
IP Rating	IP68
Current Rating	12.0A
Body Orientation	Straight
Series	Standard Buccaneer
Voltage Rating	250.0 V
Mating Type	Threaded
Shell Size	38
Housing Material	Polymer
Contact Plating	Nickel
Strain Relief	No
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
Contact Material	Brass
