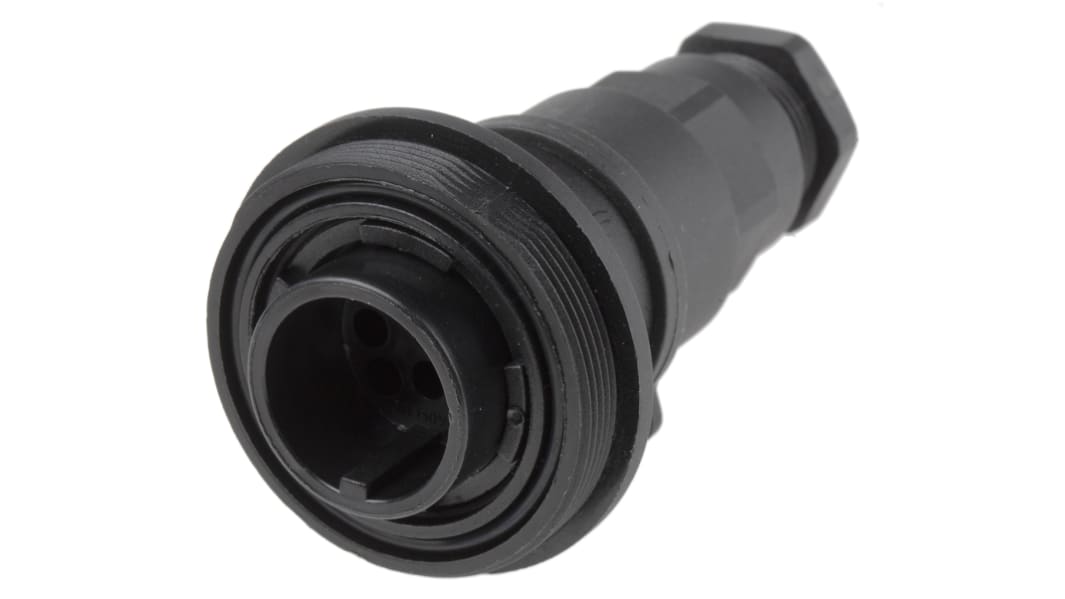

Bulgin Circular Connector, 9 Contacts, In-Line, Standard Connector, Plug, Male, IP68, Standard Buccaneer Series
- RS Stock No.:
- 452-142
- Distrelec Article No.:
- 303-93-478
- Mfr. Part No.:
- PX0729/P
- Brand:
- Bulgin
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£20.64
(exc. VAT)
£24.77
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 521 unit(s) ready to ship
- Plus 49 unit(s) shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £20.64 |
| 10 - 49 | £19.79 |
| 50 - 99 | £19.09 |
| 100 + | £18.37 |
*price indicative
- RS Stock No.:
- 452-142
- Distrelec Article No.:
- 303-93-478
- Mfr. Part No.:
- PX0729/P
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Number of Contacts | 9 | |
| Product Type | Circular Connector | |
| Mount Type | In-Line | |
| Current | 5A | |
| Connector Size | Standard | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| IP Rating | IP68 | |
| Orientation | Straight | |
| Series | Standard Buccaneer | |
| Voltage | 150.0V | |
| Minimum Operating Temperature | -20°C | |
| Termination Type | Crimp | |
| Shell Size | 38 | |
| Mating Type | Threaded | |
| Housing Material | Polymer | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Number of Contacts 9 | ||
Product Type Circular Connector | ||
Mount Type In-Line | ||
Current 5A | ||
Connector Size Standard | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
IP Rating IP68 | ||
Orientation Straight | ||
Series Standard Buccaneer | ||
Voltage 150.0V | ||
Minimum Operating Temperature -20°C | ||
Termination Type Crimp | ||
Shell Size 38 | ||
Mating Type Threaded | ||
Housing Material Polymer | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Bulgin Buccaneer Standard Sealed In-Line Connectors
From Bulgin, the Buccaneer Standard Series of In-line Connectors are robust and versatile connectors for power management solutions. With a screw locking mating system that ensures a secure connection, these compact connectors are ideal for use in challenging conditions.
With no special tooling needed for termination, the Buccaneer Standard series connectors are easy to assemble, even in the field. The panel connectors have a single hole fixing with an easy to use jam nut.
The connectors also feature a positive locking mating system which means the connector cannot be mis-matched.
Environment
The Standard Series of Buccaneer connectors are protected to IP68 when mated. This means they are dust tight, and resistant against particle ingress such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.
Features and Benefits
• IP68
• UL94HB Housing
• Insulation Resistance of >104 MΩ @ 500 V dc
• Positive locking keyways
• 6 to 8mm cable acceptance (2 to 9 pole)
Applications
Due to their excellent environmental resistance properties, Buccaneer connectors are ideal for harsh industrial environments and automotive applications. Their excellent resistance to liquid ingress also makes them suitable for marine applications.
FAQ
Q: Are there accessories available for this connector?
A: There are connector caps available for Standard Buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.
Q: How durable is the connector?
A: The Standard Buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oils and saltwater.
Q: What are the mating requirements of this connector?
A: The Buccaneer standard series in-line connectors mate with corresponding cable connectors for cable to cable connections, and with panel mounting connectors.
Q: Are contacts supplied with this connector?
A: Flange connectors with 2 to 9 poles are supplied with contacts. The 12 to 25 pole connectors are supplied without contacts.
Approvals
CSA; UL; VDE
