RS PRO Red Indicator Lamp Multichip, 28V dc, 6 mm Diameter

View all Indicator Lamps
Unavailable
RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO Yellow LED Indicator Lamp, 28V dc, Midget Flange Base, 6mm Diameter, 45mcd
RS Stock No.
206-586

Each

£6.79

(exc. VAT)

£8.15

(inc. VAT)

RS Stock No.:
206-542
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Indicator Lamp

Voltage

28V dc

Light Output Colour

Red

Current

14mA

Chip Type

Multichip

Diameter

6mm

Length

15.25mm

Viewing Angle

180 °

Peak Wavelength

635nm

Life Hours

100000h

COO (Country of Origin):
GB

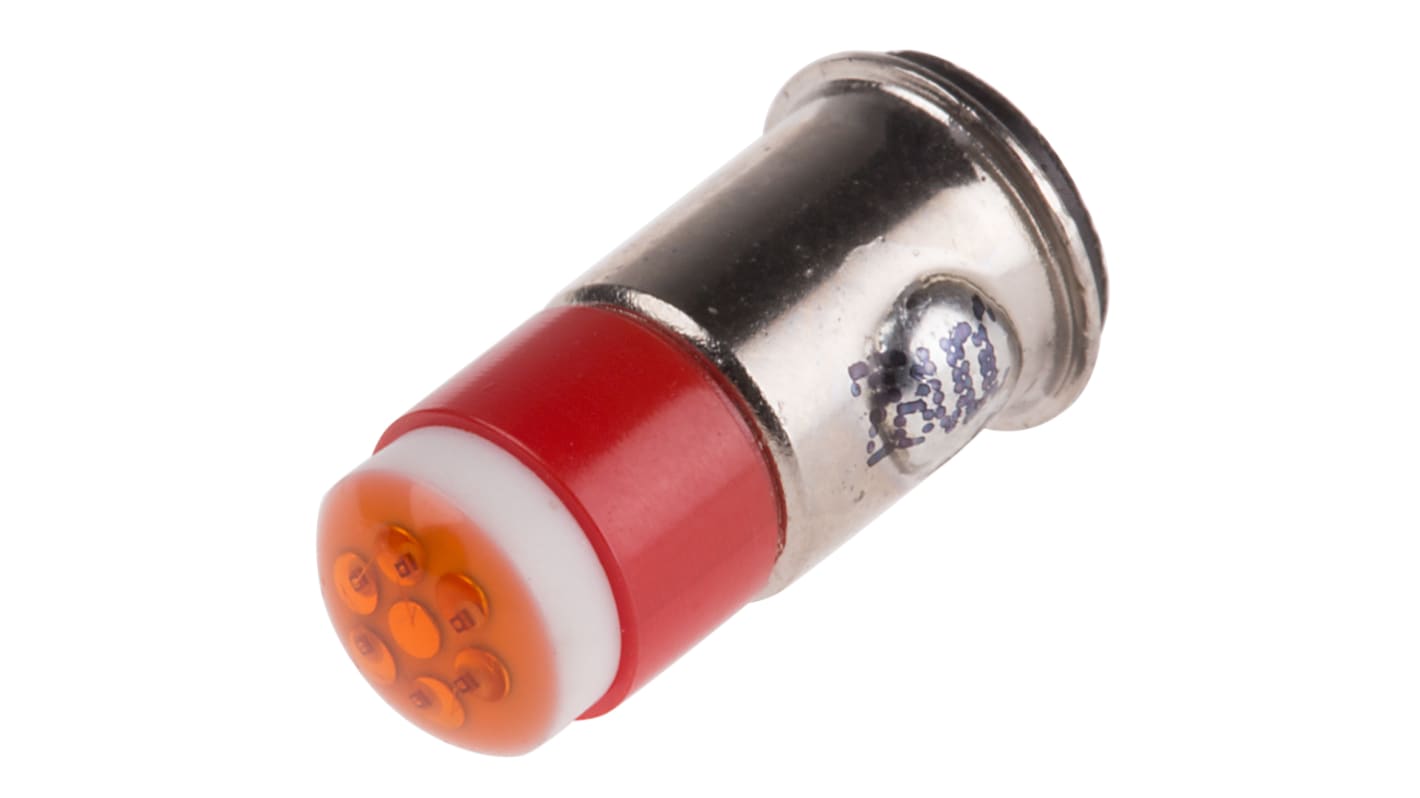

Multi-Chip LEDs with Midget Flange, T1 3/4


Brought to you under the trusted RS Brand, this multi-chip LED indicator lamp has six LED's, ensuring a level of brightness on par with that of incandescent filament lamp equivalents, but with lower current consumption and longer life. The midget flange shape of this indicator lamp assures quick and secure mounting.

Features and Benefits:


• Robust and Compact lamp

• LED lamps contain a current limiting resistor

• Positive to be connected to the base contact

• Size T1 3/4

Multi-Chip LEDs


Multi-chip LEDs are semi-conducting alternatives to incandescent filament lamps. Construction consists of standard filament lamp bases incorporating a current limiting resistor and a cluster of LED chips bonded onto a substrate. Multi-chip LEDs have many advantages over standard filament lamps.

Very high immunity to shock and vibration

Current consumption is between 50 and 65% lower

Lower operating temperatures

Note

The operating voltage must not be exceeded by more than 10% as this will result in reduced life expectancy.
