RS PRO Snap-In IEC Connector Male, 20A, 250 V
- RS Stock No.:
- 896-2136
- Brand:
- RS PRO
100 In stock - FREE next working day delivery available
5 available from Europe for delivery within 2 working day(s).
Price Each (In a Pack of 5)
£1.146
(exc. VAT)
£1.375
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £1.146 | £5.73 |
50 - 120 | £1.10 | £5.50 |
125 - 245 | £1.054 | £5.27 |
250 + | £1.01 | £5.05 |
*price indicative
- RS Stock No.:
- 896-2136
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

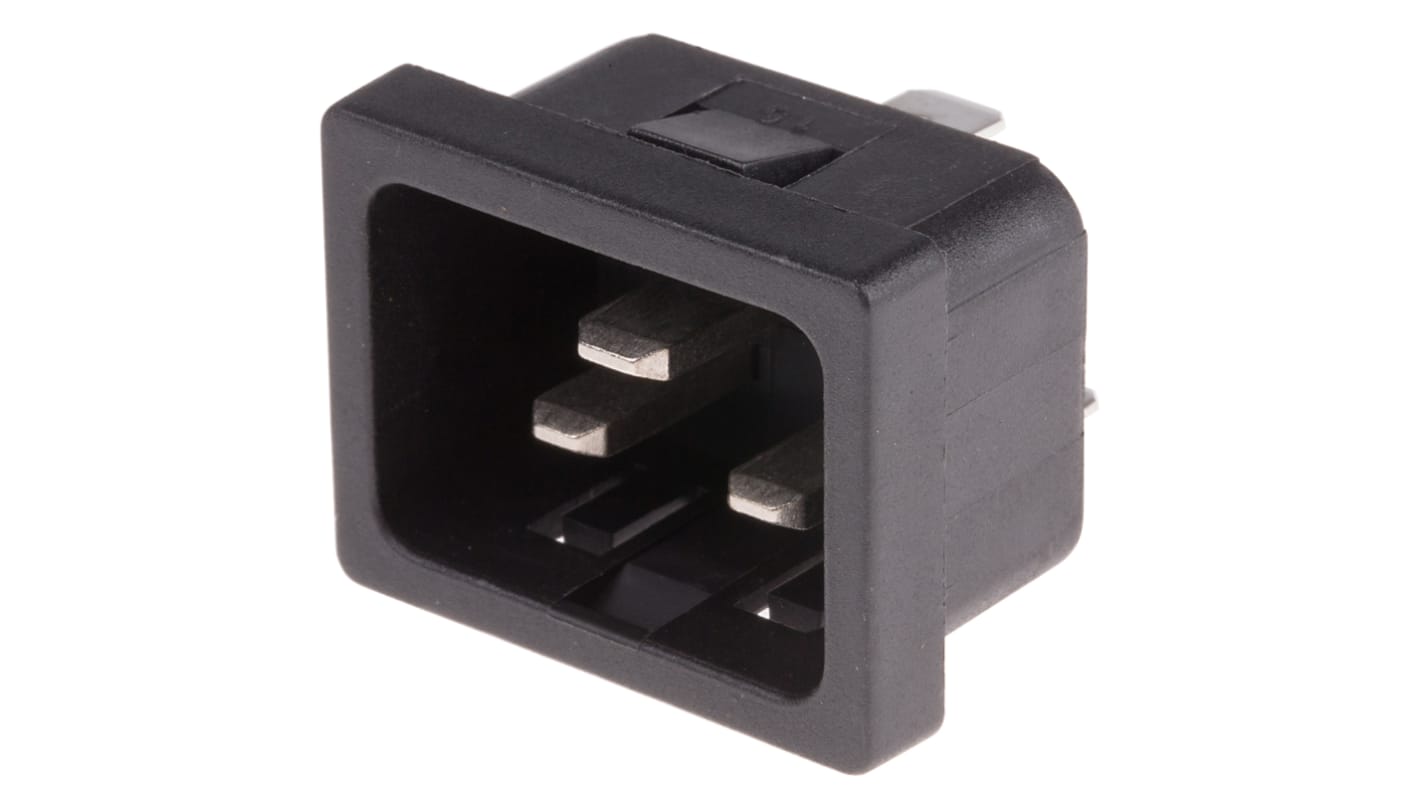

IEC Plug C20, Panel Mount Connector
IEC plug C20 variant, panel mount inlet connector with nylon-6 body and tin plated copper alloy mating contacts and 6.3x0.8mm faston terminals, rated at 16A (VDE) and 20A (UL,C-US), 250Vac. This C20 connector offers a hardwearing durable solution for many applications that require an IEC C20 panel mount plug connector.
Features and Benefits:
• HV Breakdown Test for 1 Minute: 2KV ac
• Insulation Resistance at 500V dc 1000 MΩ min.
• Permissible Temperature with/without load: 0 to 70 ° C
• Current Rating 16Amps (VDE), 20Amps (UL,C-US) 250V ac
• Contact Resistance 10 mΩ max.
• HV Breakdown Test for 1 Minute: 2KV ac
• Insulation Resistance at 500V dc 1000 MΩ min.
• Permissible Temperature with/without load: 0 to 70 ° C
• Current Rating 16Amps (VDE), 20Amps (UL,C-US) 250V ac
• Contact Resistance 10 mΩ max.
Note
For associated connector see 776-9129
Standards
UL(C, US), VDE, CE
![](https://media.rs-online.com/t_line/L8962136-01.jpg)
Specifications
Attribute | Value |
---|---|
Mounting Type | Snap-In |
Gender | Male |
Current Rating | 20A |
Body Orientation | Straight |
Termination Method | Faston |
Voltage Rating | 250 V |
