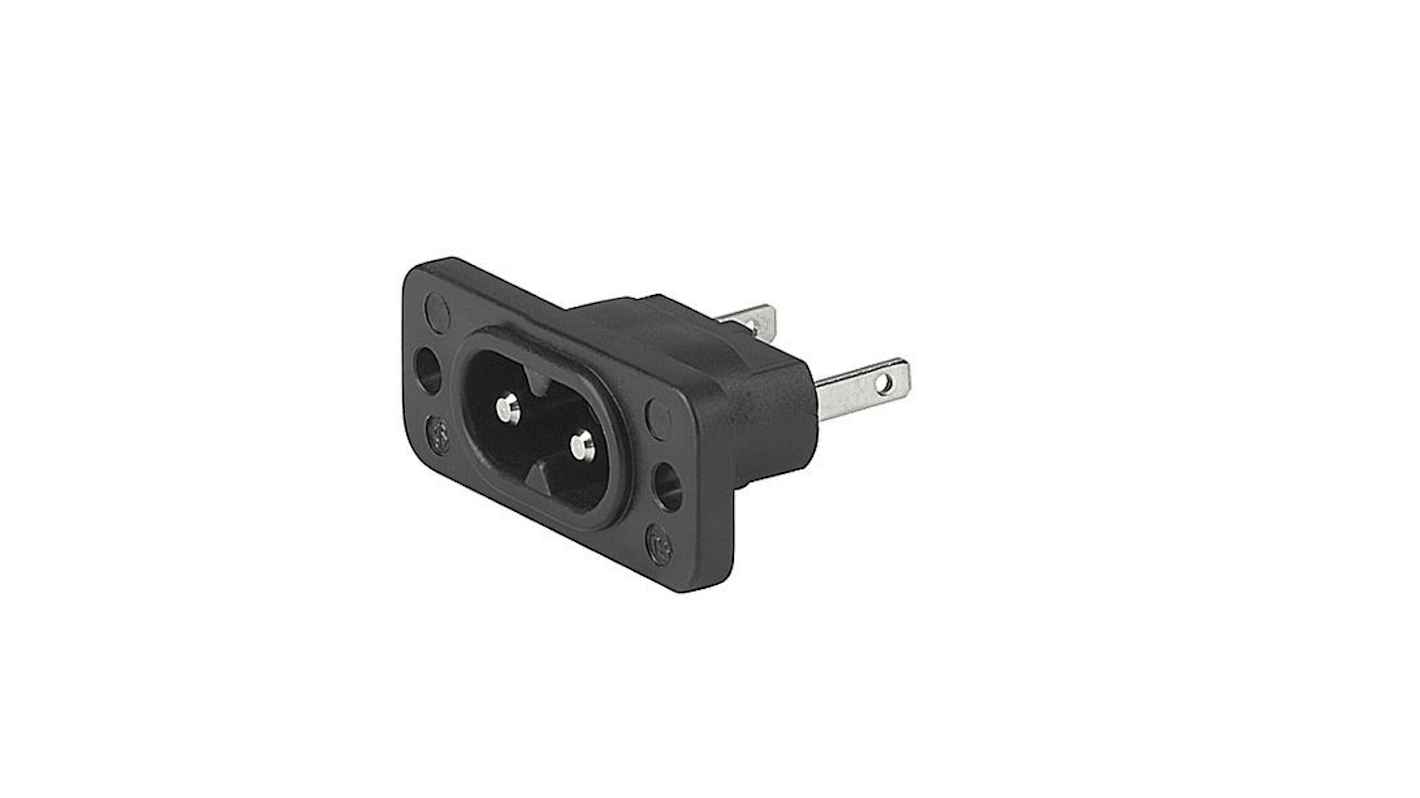

Schurter C8 Panel Mount IEC Connector Male, 2.5A, 250 VAC
- RS Stock No.:
- 269-3849
- Mfr. Part No.:
- 6160.0021
- Brand:
- Schurter
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 269-3849
- Mfr. Part No.:
- 6160.0021
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schurter | |
IEC Connector Type | C8 | |
Mounting Type | Panel Mount | |
Gender | Male | |
Current Rating | 2.5A | |
Body Orientation | Straight | |
Voltage Rating | 250 VAC | |
Select all | ||
---|---|---|
Brand Schurter | ||
IEC Connector Type C8 | ||
Mounting Type Panel Mount | ||
Gender Male | ||
Current Rating 2.5A | ||
Body Orientation Straight | ||
Voltage Rating 250 VAC | ||
- COO (Country of Origin):
- CZ
2576 Series Power Entry Modules
Professional range of Schurter power entry modules from the 2576 series. The modules are designed to be used on appliances with protection class I acc. to IEC 61140
Panel Mount
Body Orientation - Straight
IEC Connector Type - C8
Termination Method - Quick Connect, Solder
Body Orientation - Straight
IEC Connector Type - C8
Termination Method - Quick Connect, Solder
The Schurter IEC connector is a IEC C18 connector. This IEC connectors housing are made from PA6 material acc. to UL 94V 0. This IEC connectors are suitable for appliances with protection class II acc. to IEC 61140. This C14 IEC connector supports quick connect terminals.
IP20 protection
VDE UL and CCC Approvals
REACH RoHS CE and UKCA compliant
Contact pins are turned from solid material
Mounting screw torque is maximum 0.5 Nm
VDE UL and CCC Approvals
REACH RoHS CE and UKCA compliant
Contact pins are turned from solid material
Mounting screw torque is maximum 0.5 Nm
