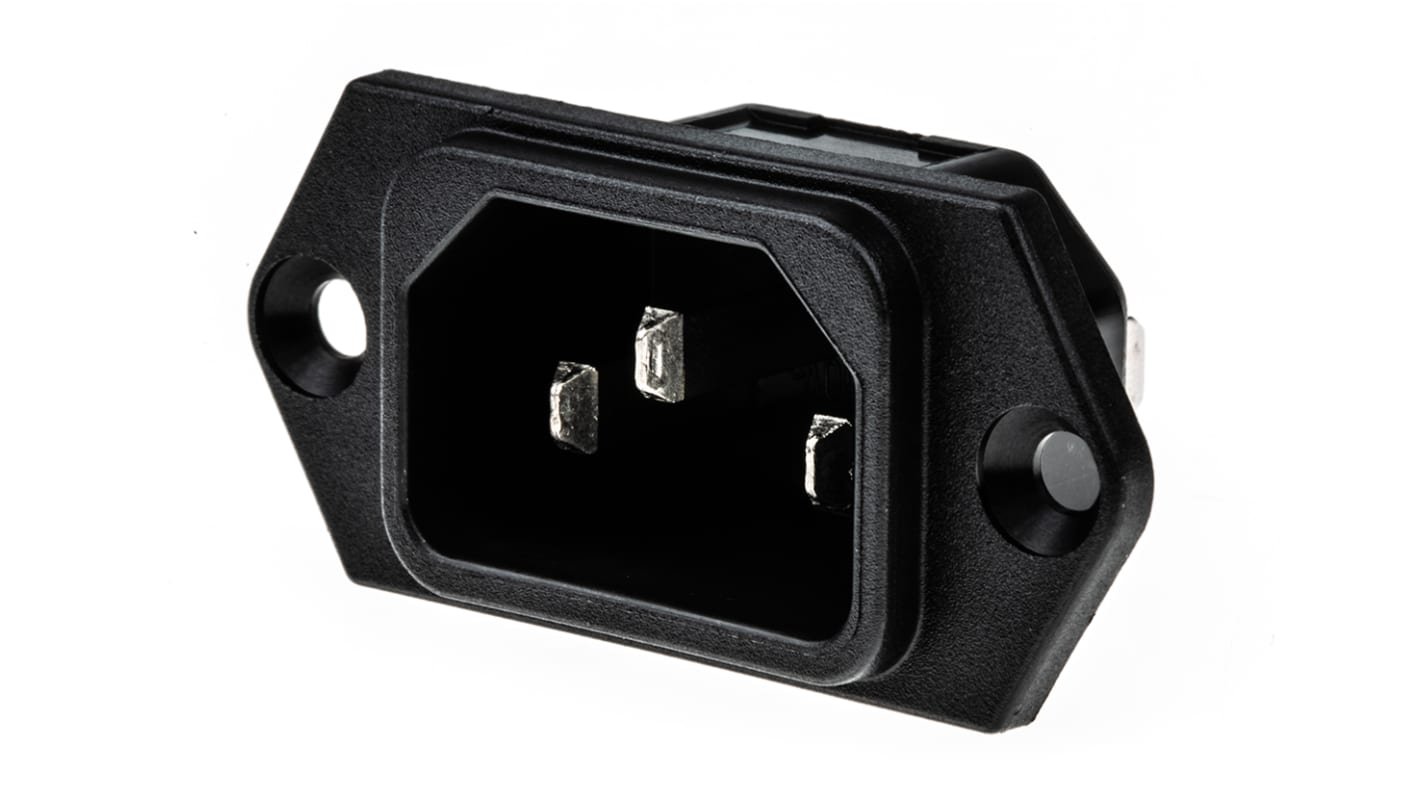

Schurter C14 Panel Mount IEC Connector Male, 15A, 250 V
- RS Stock No.:
- 173-7840
- Mfr. Part No.:
- 6100.3200
- Brand:
- Schurter
Bulk discount available
Subtotal (1 box of 50 units)*
£45.45
(exc. VAT)
£54.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 750 unit(s) ready to ship
- Plus 600 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
50 - 50 | £0.909 | £45.45 |
100 - 100 | £0.836 | £41.80 |
150 + | £0.778 | £38.90 |
*price indicative
- RS Stock No.:
- 173-7840
- Mfr. Part No.:
- 6100.3200
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schurter | |
IEC Connector Type | C14 | |
Mounting Type | Panel Mount | |
Gender | Male | |
Current Rating | 15A | |
Body Orientation | Straight | |
Voltage Rating | 250 V | |
Select all | ||
---|---|---|
Brand Schurter | ||
IEC Connector Type C14 | ||
Mounting Type Panel Mount | ||
Gender Male | ||
Current Rating 15A | ||
Body Orientation Straight | ||
Voltage Rating 250 V | ||
- COO (Country of Origin):
- CH
EEC 22 male panel mount sockets, 6100-3 series
These male mounting brackets for panel mounting are secured using two self-tapping screws (not supplied).
3 versions available: solder lugs (3.5 x 0.8 mm) and Faston terminals (4.8 x 0.8 mm or 6.3 x 0.8 mm).
Panel mounted with 8 mm maximum thickness.
C14 type connector.
RS Article 8702341 offers IP 54 protection.
3 versions available: solder lugs (3.5 x 0.8 mm) and Faston terminals (4.8 x 0.8 mm or 6.3 x 0.8 mm).
Panel mounted with 8 mm maximum thickness.
C14 type connector.
RS Article 8702341 offers IP 54 protection.
Standards
UL, CSA, VDE, SEV and IEC/EN.
Schurter IEC Male Plug Connector
The Schurter IEC plug is a straight male C14 connector and a panel mount device. It has a voltage rating of 250VAC and current rating of 10A. These male mounting brackets for panel mounting socket are secured using two self-tapping screws (not supplied). Its body is made from durable thermoplastic.
Features and Benefits
Rewireable connector
Screw-on mounting from the front side
Quick connect 6.3mm x 0.8mm terminal connection
Operating temperature ranging between -25°C and 70°C
Screw-on mounting from the front side
Quick connect 6.3mm x 0.8mm terminal connection
Operating temperature ranging between -25°C and 70°C
Applications
Domestic appliances
Instrumentation amplifiers
Computer hard drives
Instrumentation amplifiers
Computer hard drives
Certifications
VDE
UL approved
CSA certified
IEC/EN
SEV
IP40 rated
UL approved
CSA certified
IEC/EN
SEV
IP40 rated
